Description

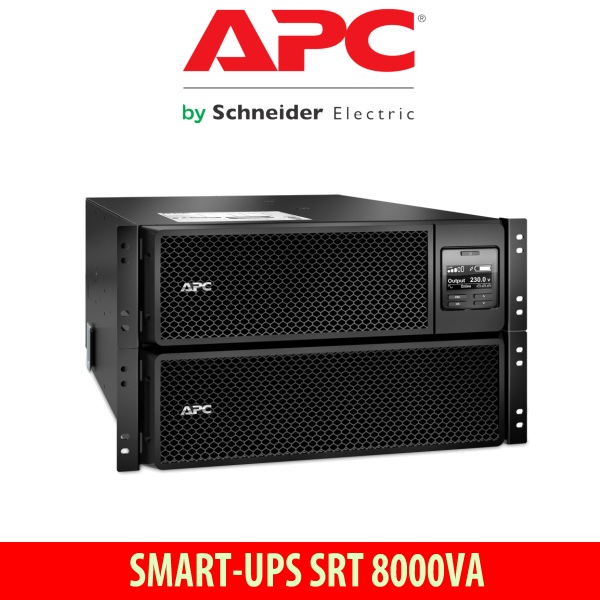

APC Smart-UPS SRT8000VA Dubai
The APC Smart-UPS SRT8000VA Dubai is integrated with Smart-UPS On-Line which provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U.
APC Smart-UPS SRT8000VA Dubai provides customers with a reliable source of Uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Key Features
- Max Configurable Power (Watts) – 8.0 KWatts / 8.0 kVA
- Output Connections – 6x IEC 320 C13 (Battery Backup), 4x IEC 320 C19 (Battery Backup), 1x Hard Wire 3-wire (H N + G) (Battery Backup), 3x IEC Jumpers (Battery Backup)
- Input Connections – Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Interface Port(s) – RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
- Green mode
- APC Smart-UPS SRT8000VA Dubai has a patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
- Battery failure notification
- APC Smart-UPS SRT8000VA Dubai comes with convenient battery notifications which provide early-warning fault analysis on batteries enabling timely preventive maintenance
- LCD graphics display
- Text and mimic diagrams that display modes of operation, system parameters and alarms
- 10/100 BaseT Connection
- Connect the APC Smart-UPS SRT 8000VA Dubai to a network using a 10 or 100 BaseT connection
- Safety-agency approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- ECO Mode
- APC Smart-UPS SRT8000VA Dubai has an integrated operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
- User-replaceable batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).

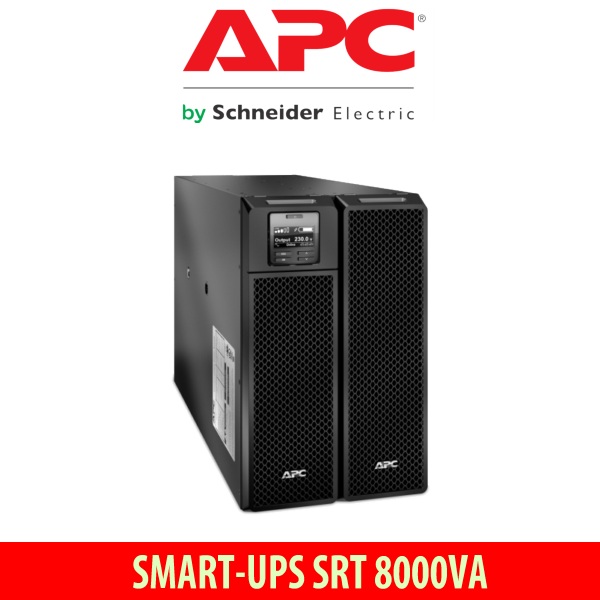

- Rack/Tower convertible
- Protects the initial investment in the APC Smart-UPS SRT 8000VA Dubai when migrating from tower to rack-mount environment.
APC Smart-UPS SRT8000VA – Technical Specifications
| Device Type | UPS – rack-mountable |
| Height (Rack Units) | 6U |
| Color | Black |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 230 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 45 – 65 Hz |
| Input Connectors | Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G) |
| Power Output Connectors Details | 6 x power IEC 60320 C13 4 x power IEC 60320 C19 1 x hardwire 3-wire (HN + G) 3 x IEC connector |
| Output Voltage | AC 230 V ± 3% – 50/60 Hz |
| Power Capacity | 8000 Watt / 8000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 480 Joules |
| Efficiency | 98% |
Battery
| Technology | Lead acid |
| Run Time (Up To) | 5.3 min at full load 14.8 min at half load |
| Recharge Time | 3 hours |
| Features | Maintenance free, sealed, leak-proof |
Networking
| Remote Management Interface | Ethernet 10/100, USB |
Expansion / Connectivity
| Interfaces | 1 x management (Ethernet) – RJ-45 1 x management (USB) – 4 pin USB Type B 1 x EPO (emergency power off) 1 x serial – RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
Miscellaneous
| Features | Audible alarm, LCD display |
| Compliant Standards | C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC |
Software / System Requirements
| Software Included | APC PowerChute Business Edition |
Manufacturer Warranty
| Service & Support | Limited warranty – 3 years Limited warranty – batteries – 2 years |
Environmental Parameters
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 – 95% (non-condensing) |
| Sound Emission | 55 dBA |
Dimensions & Weight
| Width | 43.2 cm |
| Depth | 71.5 cm |
| Height | 26.3 cm |
| Weight | 111.82 kg |
Dimensions & Weight (Shipping)
| Shipping Width | 60 cm |
| Shipping Depth | 1 m |
| Shipping Height | 46.1 cm |
| Shipping Weight | 130 kg |
Compatibility Information
| Designed For | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, AP5602, AP5606, AP5607, AP5616, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3000, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR335SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610 |
