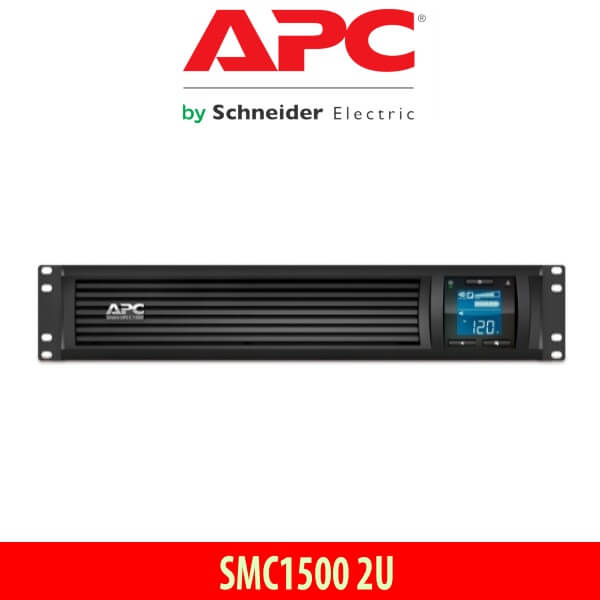

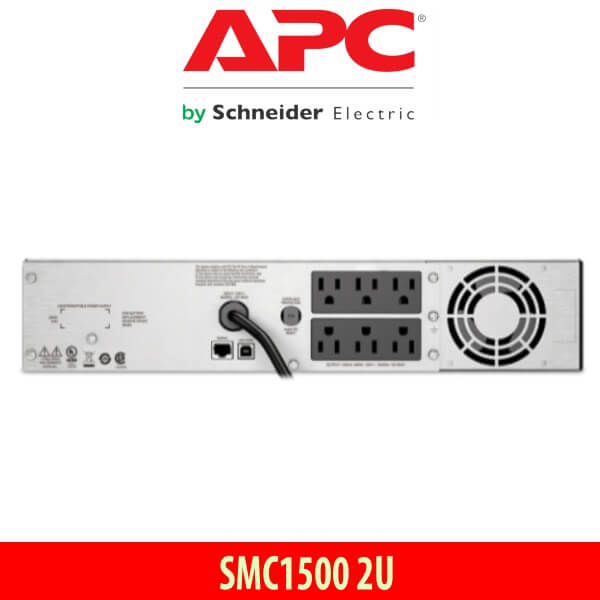

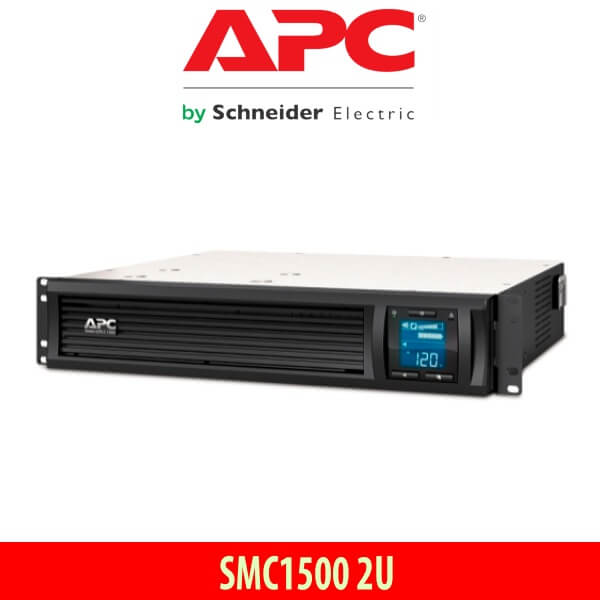

APC SMC1500 2U Smart UPS Dubai
APC SMC1500 2U Dubai is ideal for small and medium businesses looking to protect entry-level servers and networking equipment from power disturbances and outages. APC Smart-UPS C features pure sine wave output on battery, simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. LCD status display provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs. Most Smart-UPS C models can be installed in either a tower or rack configuration, allowing standardization across multiple applications. Built on the same standards as the award-winning Smart-UPS, with over 10 million installed, APC SMC1500 2U Dubai provides the basic features and manageability needed to protect entry-level applications.
Features :
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency
Reduces utility costs, generates less heat.
- LCD Status Display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
- 1500VA / 900W Battery Backup Uninterruptible Power Supply (UPS)
- Pure Sine Wave UPS provides highest degree of compatibility with active PFC power supplies and electronics
- 6 battery backup and surge protector outlets
- Rack-Mountable smart UPS power supply
- Network-grade power supply conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation (AVR) boosts low input voltage and trims high voltage without battery operation. Network manageable via serial, USB or optional ethernet
APC SMC1500 2U – Technical Specs
| Output | |
| Output Power Capacity | 900 Watts / 1500 VA |
| Max Configurable Power | 900 Watts / 1440 VA |
| Nominal Output Voltage | 120V |
| Output Voltage Distortion | Less than 5% at full load |
| Output Frequency (sync to mains) | 50/60Hz +/- 3 Hz |
| Topology | Line Interactive |
| Waveform Type | Sine wave |
| Output Connections | (6) NEMA 5-15R |
| Input | |
| Nominal Input Voltage | 120V |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Input Connections | NEMA 5-15P |
| Cord Length | 8 feet (2.44 meters) |
| Input voltage range for main operations | 93 – 130V |
| Input voltage adjustable range for mains operation | 85 – 136V |
| Batteries & Runtime | |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Typical recharge time | 3 hour(s) |
| Replacement Battery | APCRBC132 |
| RBC Quantity | 1 |
| Communications & Management | |
| Interface Port(s) | USB |
| Control panel | Multi-function LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Emergency Power Off (EPO) | — |
| Surge Protection and Filtering | |
| Surge energy rating | 455 Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Physical | |
| Maximum Height | 3.50 inches (89 mm) |
| Maximum Width | 17.00 inches (432 mm) |
| Maximum Depth | 18.70 inches (475 mm) |
| Rack Height | 2U |
| Net Weight | 61.20 lbs. (27.82 kg) |
| Shipping Weight | 68.10 lbs. (30.95 kg) |
| Shipping Height | 9.88 inches (251 mm) |
| Shipping Width | 23.38 inches (594 mm) |
| Shipping Depth | 23.75 inches (603 mm) |
| Color | Black |
| Units per Pallet | 16.00 |
| Environmental | |
| Operating Environment | 32 – 104°F (0 – 40°C) |
| Operating Relative Humidity | 0 – 95% |
| Operating Elevation | 0-10000 feet (0-3000 meters) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Storage Relative Humidity | 0 – 95% |
| Storage Elevation | 0-50000 feet (0-15000 meters) |
| Audible noise at 1 meter from surface of unit | 46.00 dBA |
| Online Thermal Dissipation | 134.00 BTU/hr |
| Conformance | |
| Regulatory Approvals | CSA,NOM,UL 1778 |
| Standard Warranty | 2 years repair or replace |
| Equipment protection policy | Lifetime: $150000 |
| Environmental Compliance | RoHS 7b Exemption,REACH: Contains No SVHCs |
