APC SRT2200 XLI Smart UPS Dubai

Protect your data and hardware from electrical power outages and current fluctuations. Using APC SRT2200 XLI Dubai devices, available for towers and racks, you can ensure that power supply is secured. APC is the reference market leader in Europe concerning uninterrupted . APC Back UPS Units are available as Tower Version. APC Smart UPS Units are been offered as Tower-or Rack Version. The Smart-UPS series is been offered in different functional principles: Smart UPS Units with Online double-conversion and as Line-Interactive Units.

The APC SRT2200 XLI Dubai are an ideal solution at protecting file servers, minicomputers, network switches, hubs, point of sale systems & ATMs from losing power as they offer digital line interactive sinewave technology & also feature a LCD display giving a clear status of the UPS while also giving a hot-swap battery option & various connectivity options.

The APC SRT2200 XLI Dubai is your companion when it comes to protecting your servers, storage and networks hardware. With its 1980W worth of power it is trusted to protect critical data and equipment from power problems.

Features :

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment

Technical Specifications

Output

Output power capacity

1.98 KWatts / 2.2 kVA
Max Configurable Power (Watts)

1.98 KWatts / 2.2 kVA
Nominal Output Voltage

230V
Output Voltage Distortion

Less than 2%
Output Frequency (sync to mains)

50/60Hz +/- 3 Hz
Other Output Voltages

220, 240
Load Crest Factor

3 : 1
Topology

Double Conversion Online
Waveform type

Sine wave

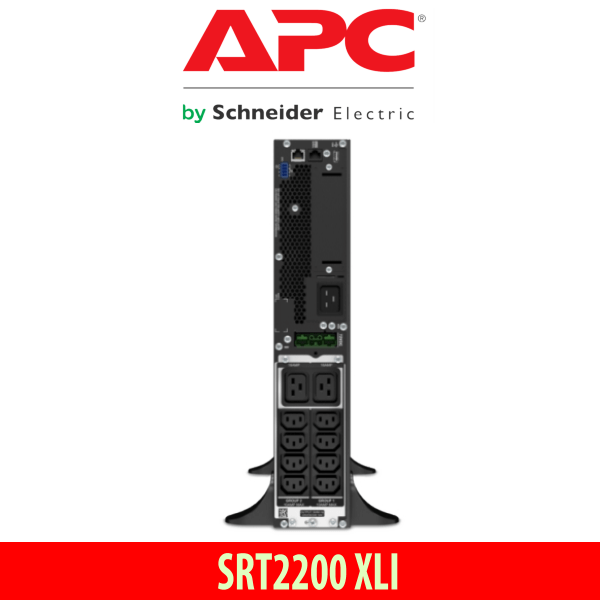

Output Connections

(8) IEC 320 C13 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

(2) IEC 320 C19 (Battery Backup)
Bypass

Built-in Bypass

Input

Nominal Input Voltage

230V
Input frequency

40 – 70 Hz (auto sensing)
Input Connections

IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
Cord Length

2.44meters
Input voltage range for main operations

160 – 275V
Input voltage adjustable range for mains operation

100 – 275 (half load)V
Number of Power Cords

1
Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules

1
Typical recharge time

3hour(s)
Nominal Battery Voltage

72V
Expected Battery Life (years)

3 – 5
RBC Quantity

1
Extendable Run Time

1
