Description
Aver CL01 Dubai
The Aver CL01 Dubai is a professional PTZ camera controller with a robust communication interface, built-in VISCA and Pelco-D/P protocols. The Aver CL01 Dubai is ideal solution for education, conferencing, telemedicine, livestreaming & broadcasting. The CL01 boasts of simple configuration to manage up to 7 cameras at an instant via different control protocols. Simple configuration makes it easy to operate the 7 camera shortcut channels, through 3 infinite rotation knobs, and more. Also Aver CL01 Professional PTZ Camera Controller is a universal PTZ controller for any VISCA-over-IP, VISCA, Sony VISCA, Pelco-D, and Pelco-P protocol camera that supports IP or RS-232, RS-422, or RS-485 serial communication. The controller allows you to simultaneously control up to 7 cameras.

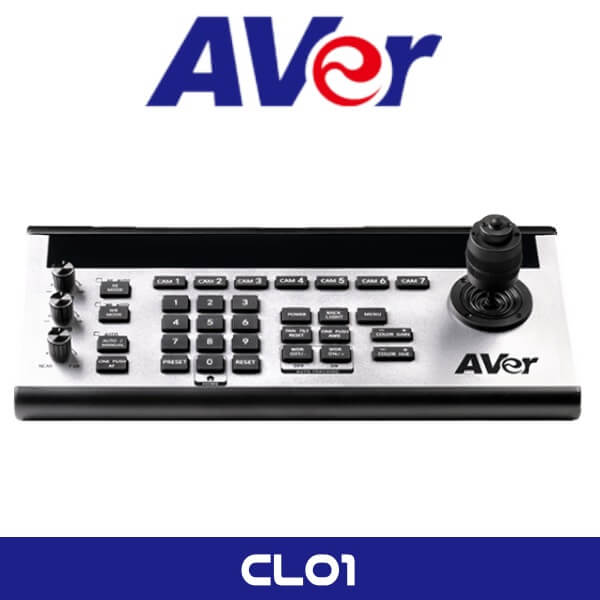

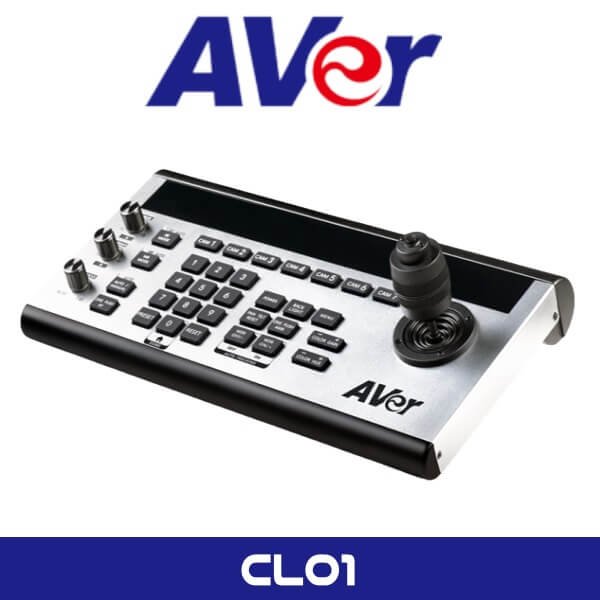

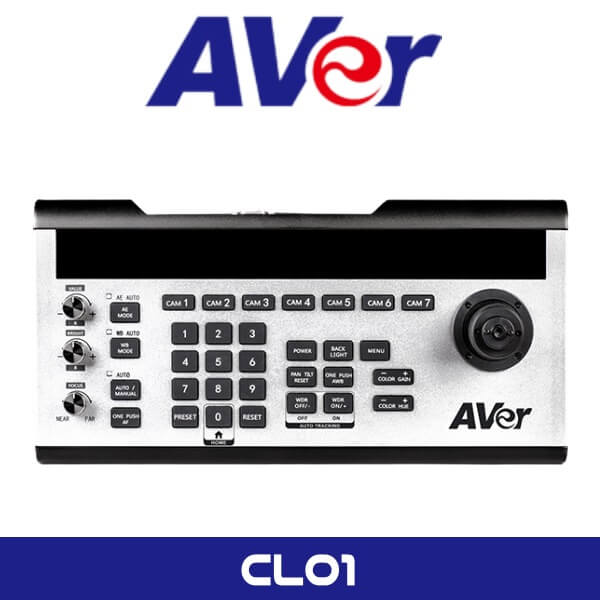

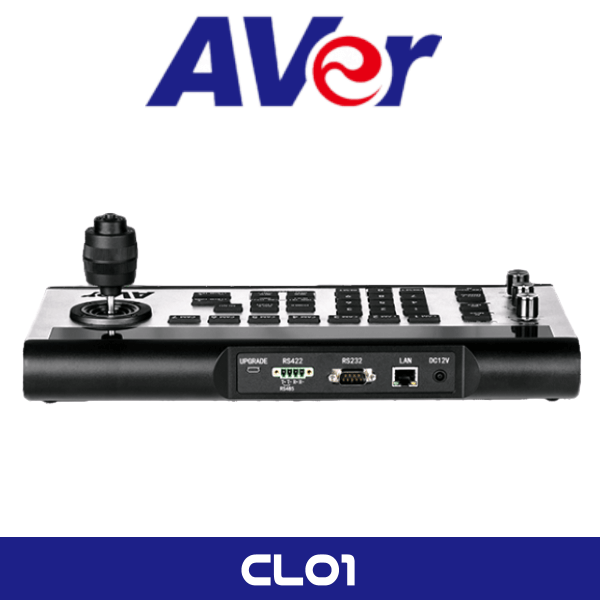

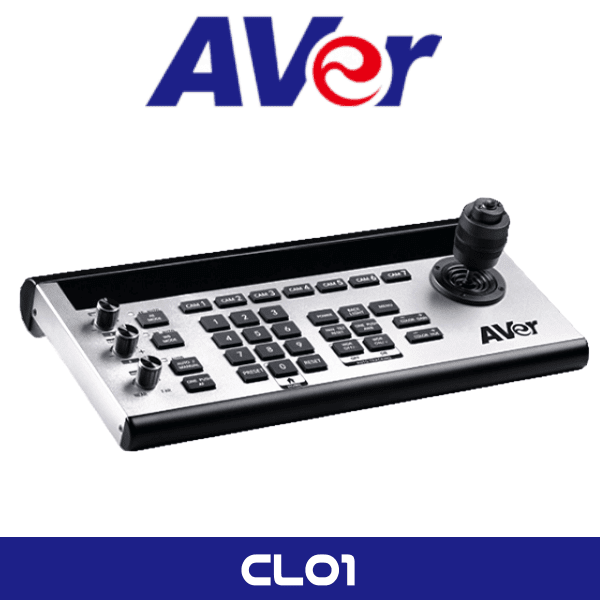

The Aver CL01 Dubai features a joystick for pan, tilt, and zoom control, backlit buttons for camera selection and configuration such as backlight, autofocus, white balance, or pan/tilt/zoom speed, and knobs offer fine adjustments such as focus and brightness. The bright OLED display allows you to see your status and configuration clearly in any lighting conditions. Its ports include DB-9 RS-232, 4-pin RS-422, and RJ45 Ethernet. A micro-USB port is available for firmware upgrades. Take control of your productions like a pro with this robust and intuitive solution to manage your video capture and broadcast needs. The CL01 is compatible with all AVer Auto Tracking and PTZ cameras and a variety of other brands. With a simple configuration to manage up to 7 cameras, the CL01 provides the power of a mini studio on your desk.
Key Features
- Compatibility
- The Aver CL01 Dubai, is equipped with PTZ controller for any VISCA-over-IP including VISCA, Sony VISCA, Pelco-D, and Pelco-P protocol camera that supports IP or RS-232, RS-422, or RS-485 serial communication. The controller allows you to simultaneously control up to 7 cameras making it easy to use joystick for pan/tilt/zoom control
- Take control of productions
- The Aver CL01 Dubai PTZ Professional Camera manage multiple cameras to deliver big production experiences. Allowing, users to multitask their tasks and achieve productivity. The CL01 is compatible with all AVer Auto Tracking and PTZ cameras and a variety of other brands. With a simple configuration to manage up to 7 cameras, the CL01 provides the power of a mini studio on your desk.
- Intuitive Control buttons
- Aver CL01, has an Intuitive control buttons with preset functions these preset functions allow users to take control of productions like a pro with intuitive solution to manage your video capture and broadcast needs.
- OLED display
- Aver CL01 Dubai allow users to adjust brightness, color and focus on the fly. You are therefore not limited to work anywhere. The bright OLED display allows you to see your status and configuration clearly in any lighting conditions.
- Portable
- Aver CL01 Dubai features a smart, light and portable camera whenever you need. Its compact design and packed power adapter and a 4-pin RS-485 terminal adapter are both included with the controller to allow you be productive anywhere.
Technical Specifications
- I/O Interface
-
- Communication
-
- RS-485, RS-422, RS-232, IP, Micro USB for firmware upgrades
-
- Baud Rate
-
- 2400, 4800, 9600, 19200, 38400 bps
-
User Interface
-
- Display
-
- OLED display screen
-
- Camera Shortcut Channel
-
- 7
-
- Rotation Button
-
- 3
-
- Joystick
-
- 1
-
Camera Control
-
- IP Address
-
- Default: 192.168.1.162 /163 /164 /165 /166 /167 /168 (from Cam 1 to Cam 7)
-
- UDP Port
-
- 08090
-
- Cam ID
-
- 1 to 7 and more (255* max.)
-
- Control Protocol
-
- VISCA, SONY VISCA , Pelco D/P, UDP, IP (VISCA over IP)
-
System
-
- Operating Temperature
-
- 0°C ~ 40°C (32°F ~ 104°F)
-
- Dimensions
-
- 173 mm (W) x 99 mm (H) x 350 mm (D)
-
- Net Weight
-
- 2.5 kg
-
- Power Source
-
- DC 12V/2A
- AC 100 – 240V
-
- Power Consumption
-
- 24 W
-
- Application
-
- Indoor
-
- Warranty
-
- 3 years
-
- Package Content
-
- User manual
- 4-pin RS485 terminal
- power adapter
