Description
Aver CP3-86i Dubai

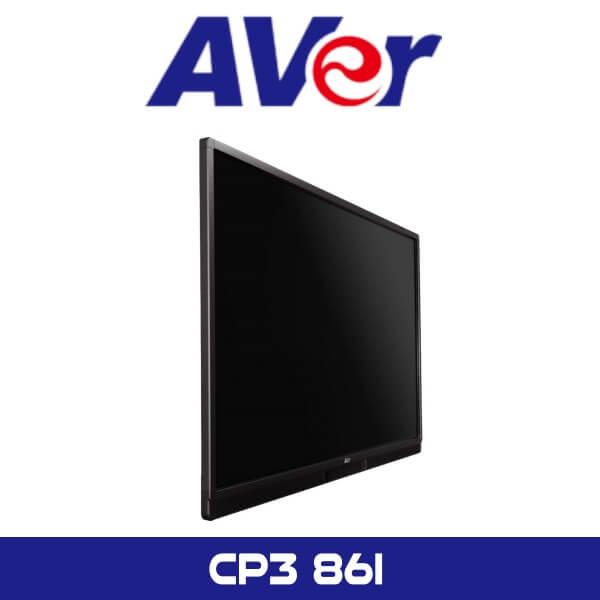

The Aver CP3-86i Dubai is a 86″ CP3 UHD Interactive Flat Panel with 400cd/m2 of brightness and 3840 x 2160 resolution. This Interactive Flat Panel features an upgradeable module and split-screen multitasking. It also has a built-in modern whiteboard and an anti-glare glass touch surface technology. This Interactive Flat Panel is the all-in-one solution for classrooms with a 5-year warranty with on-site repair included.
Key Features:
- Essential tools to enhance learning
-
Make notes clearly visible with responsive and precise writing on the feature-rich whiteboard. Use a different color for each step in an equation with a rainbow palette of colors available. Encourage participation by having multiple students work to solve a problem at the same time.
-
-
Effortless collaboration and engagement
-
Classroom devices are able to interact directly with the panel across all platforms and share content wirelessly without any app or add-on hardware installation! Highlight student work and encourage collaboration with our built-in screen share technology.
-
- Futureproof technology
-
Keep up with constantly changing technology with the upgradeable built-in Android Module. The low power and high-performance computing provide an optimal experience for any application.
-
- Transform lessons in new ways
-
Take learning further with wireless AVer document camera integration. Teach from a student’s desk to show a live chemistry experiment, or share a student’s art project with the entire class. Put creative minds to work and inspire students to show their work.
-
- Experience simplicity and security
-
Built for the classroom with Android’s most advanced operating system to easily navigate through different apps, and lesson plans. Every interactive flat panel also comes with screen and app lock to promote safe learning, and make any app or the entire screen password protected.
-
- Save time and stay organized

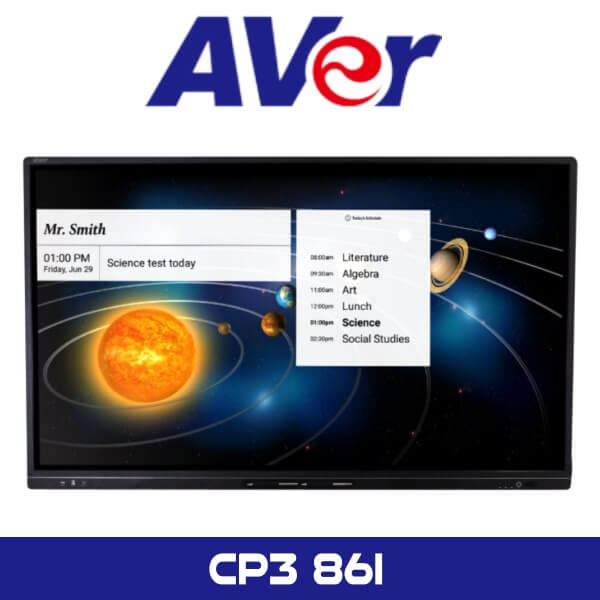

- Make more time for learning with the only interactive flat panel to provide a class schedule, and digital bulletin board. Customize the home screen, and let students see what fun activities are planned for class.
Aver CP3-86i – Technical Specs
| Model: IFPCP386I Specifications | |
| Description | CP3 86″ UHD Interactive Flat Panel |
| Active Screen Size (inches) | 86″ |
| Display Backlight | LED |
| Display Ratio Landscape | 16:9 |
| Resolution | UHD 3840 x 2160 |
| LCD Brightness | 400cd/m2 |
| Contrast Ratio (typical) | 1200:1 |
| Response Time (typical) | ≦8ms |
| Viewing Angle | 178˚ |
| Power Consumption | 180W (system boot up) |
| Touch Surface Material | Tempered Glass 4mm Level 7 MoHS |
| Touch Surface Technology | Anti-Glare Glass |
| Transparency | >88% |
| Touch Sensor | Infrared |
| Touch Points | 20 points (Win/Android); Multi-touch gesture on MAC 1 point for Chrome |
| Touch Screen | Writing Tools Writing Pen or Finger |
| Positioning Accuracy | ±1mm (90% area) |
| Communication Interface | USB-B x 4 (1x front, 3x back) / Type-C x1 |
| Life Time | Up to 50,000hrs |
| Frame Material | Aluminum |
| Scalar | MSD6A828 |
| CPU | Dual-core ARM Cortex-A72 1.8Ghz processor and Quad-core ARM Cortex-A53 1.4Ghz processor |
| GPU | ARM Mali-T860MP4 |
| Android Version | Android 7.1 |
| RAM | 4GB |
| ROM | 32GB |
| Speaker Position | Forward |
| Speaker Max.Power Output | 16W x 2 |
| Operation Environment | Relative Humidity ≤80% Operation Temperature 0～+40℃ Storage Temperature -10～+60℃ |
| Physical specs & dimensions | |
| Panel Dimension (without wall mount bracket thickness) | 78.67 x 4.50 x 47.61 (L * W * H) |
| Packing Dimension | 84.05 x 11.02 x 52.76 (L * W * H) |
| Net Weight | 189 lbs (85.50kg ± 1.5kg) (incl. wall mount) |
| Gross Weight | 237 lbs (107.3kg ± 1.5kg) |
| VESA Mount Installation Position | 700 x 400mm (4 x M8) |
| Connectivity | |
| Front Interface Input Ports | HDMI In x 1, Touch USB-B x 1, USB 3.0 x 1 Rear Side Ports HDMI In x 2, VGA in x1, Touch USB-B x 3, USB2.0 x1, USB3.0x1, Type-C (AV in+Touch)x1, Audio inx1, Mic inx1, MicroSD readerx1, RS-232 jack x1, Audio out x1, SPDIF out x1, Service port x1, Gigabit Lanx1, Antenna port x2 |
| HDMI & HDCP | Licensed |
| HDMI In | 3 |
| VGA In | 1 |
| Type-C AV in+ touch | 1 |
| USB-B for touch | 4 |
| PC-Audio In | 1 |
| Mic In | 1 |
| Audio Out | 1 |
| USB 3.0 | 2 |
| USB 2.0 | 1 |
| SD Reader | 1 |
| SPDIF | 1 |
| RS232 | 1 |
| Gigabit LAN RJ45 | 1 |
| Mini PC Mount | 75x75mm or 100x100mm |
| Wall Mount Bracket | Included |
| Mounting | VESA 700mm×400mm, 4xM8 |
| Product features & software | |
| Android OS 7.1 | Yes |
| Android Annotation | Yes |
| Writing Pen | Yes |
| Screen Share | Yes |
| Warranty & service | |
| Warranty | 5-year |
| Onsite service | Yes |
