Description

Aver EP65 AIO Touch Panel Dubai

The Aver EP65 Dubai is all-in-one display for enterprises featuring a loaded 4K P-CAP touch panel, a Windows 10 IoT Intel i7-7700 Processor, a 4K camera, and Zoom Rooms integration for productive business collaboration productivity. The sing power cable device is easy to install, also Aver EP65 AIO Touch is embedded with a Sony Exmor™ 4K CMOS sensor and a 13-element mic array to provide super-sharp video and crystal-clear audio. Aver EP65 AIO Touch is compatible with traditional conferencing systems via H.323/SIP connector powered by Zoom Rooms. Multitasking with Aver EP65’s 4K P-CAP touch panel with 20 touch points, ensures participants engage in interactive meeting through brainstorming, taking of notes and annotation. Share ideas face-to-face without worrying about distance.

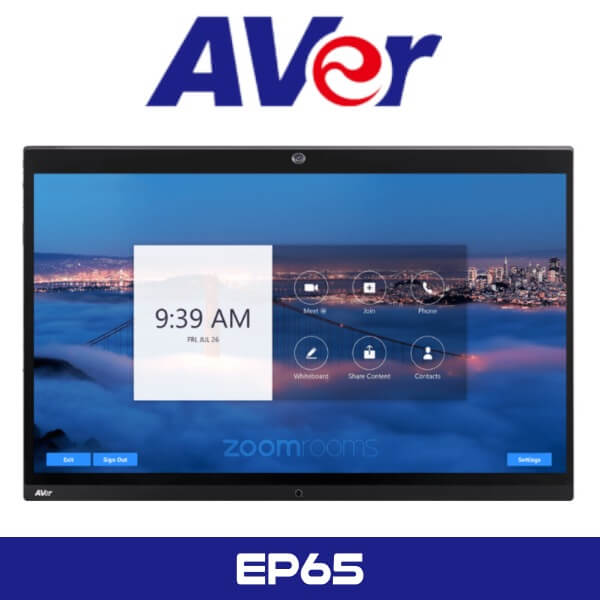

aver ep65 dubai

Key Features

• Seamless Multi-Integration
  • The Aver EP65 AIO Touch is equipped with a removable PC module that features a Windows 10 IoT Intel i7-7700 Processor, which is seamlessly integrated with Zoom Rooms software. It is therefore very efficient to manage and requires minimal maintenance making your conferencing experience convenient and enjoyable.
• Easy Installation
  • Aver EP65 AIO Touch is easy to set up. With a single power cable, simply plug in and you are set to get started within no time. The EP65 can replace complicated cross-platform setups and save time for meeting preparation.
• Collaboration
  • Aver EP65 allows multitasking with Aver EP65’s 4K P-CAP touch panel with 20 touch points. The shared screen or enabled split-screen develop an agile workplace and keep everyone on the same page, enhancing brainstorming, interaction, taking of notes and annotation. With Aver EP65 AIO Touch get new ideas and new opportunities for businesses while students enjoy interactive learning sessions.
• Lifelike Video Conferencing
  • The Aver EP65 AIO Touch is embedded with a Sony Exmor™ 4K CMOS sensor and a 13-element mic array to provide super-sharp video and crystal-clear audio. The quality audios allow you to experience lifelike meetings with partners, no matter how far apart you are.
• Versatile Compatibility
  • Aver EP65 AIO Touch is compatible with other platforms including traditional video conferencing systems, so you are not limited to advanced conferencing systems only.  EIFPs are easy connected via H.323/SIP connector powered by Zoom Rooms

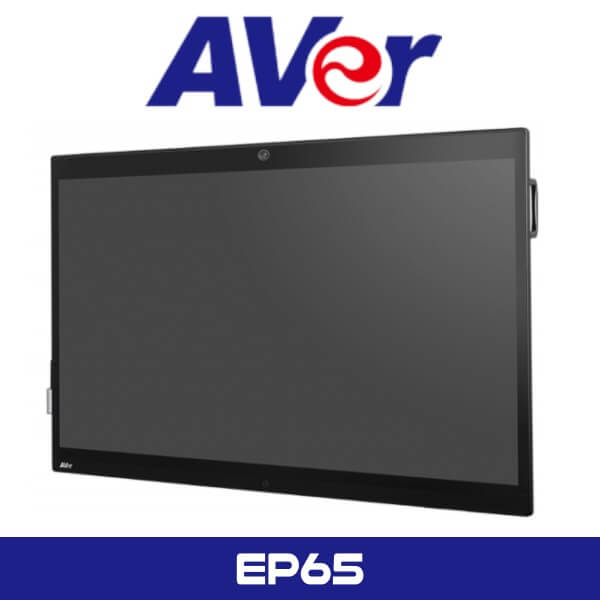

aver ep65 sharjah

Aver EP65 AIO Touch Touch Panel Specifications

• Display Panel

  • Screen size: 65 in
  • Resolution: 4K Ultra HD 3840 × 2160
  • Display ratio: Landscape 16:9
  • Brightness: 350 cd/m2
  • Contrast ratio: 1200:1
  • Response time: ≦9 ms
  • Frame rate: 60 Hz
  • Viewing angle: 178º
  • Lifetime: Up to 30,000 hrs
  • Sensing type: Projected capacitive
  • Touchpoints: 10 points for writing, 20 points for touch, 10 points for Zoom Rooms Whiteboard
  • Touch-screen writing tool: Finger or active capacitive pen
  • Communication interface: Full-speed USB
  • Touch interface: USB 2.0 type B
  • Touch pen: Active pen
  • Glass coating: Anti-Fingerprint and Anti-glare
  • Surface hardness: Toughened glass (level 7 MoHS)

• PC Module

  • Type: Pluggable
  • Model: OPS-Z1
  • CPU: Intel^® Core™ i7-7700 3.6GHz 65 W
  • RAM: DDR4 16 GB
  • Hard drive: 128 GB SSD
  • Graphics: Intel^® HD 630
  • Soundcard: Integrated high-definition audio stereo
  • Networking: 10/100/1000 Mbps
  • Wi-Fi: Intel^® 802.11 ac 2.4 & 5 Ghz (2 antennas included)
  • Bluetooth^®: 4.0
  • Operation system: Windows^® 10 IoT LTSB
  • Connectivity: USB 3.0 x6, RJ45 x1, mic in x1, earphone out x1, VGA out x1^a, DisplayPort out x1^b, HDMI 1.4 out x1^c, Kensington Security Slot
  • Dimensions: 246 x 265 x 35 mm
  • Net weight: 1.92 kg
  • Gross weight: 2.46 kg

• Physical Specs & Dimensions

  • Dimensions: 1491 × 958 × 88 mm
  • Net weight: 43 kg (PC module not included)
  • Gross weight: 59.46 kg
  • Wall-mount screw: M8 × 25 mm
  • VESA: 600 × 400 mm (4 x M8)
  • Handles: 2
  • Touch-pen holder: 1

• Connectivity

  • HDMI 2.0 in x 2
  • touch USB-B x 2
  • VGA in x 1
  • audio in x 1
  • audio out x 1
  • S/PDIF x1
  • AV in x1
  • USB 2.0 x 4 (service only)
  • USB 3.0 (service only)
  • RS-232 x 1
  • RJ45 x 1
  • PC module slot x 1

• Camera

  • Sensor: Sony Exmor™ 4K CMOS sensor
  • Frame rate: 4K Ultra HD at 25 fps, up to Full HD 1080p60
  • Field of view: 94° diagonal, 85° horizontal, 55° vertical
  • Lens: Fixed
  • Lens focal length: 3.37 mm ±5%
  • Lens F#: 2.8
  • S/N ratio: >50 dB
  • Minimum illumination: 1.4 l x (50 IRE, F 2.8, shutter 1/30)
  • 2D noise reduction: Yes
  • Camera angle: -20° tilt embedded camera

• Microphone

  • Microphone array: 13-element microphone array
  • Sensitivity: -26 dBFS
  • SNR: 65 dB
  • Sensitivity tolerance: ±1 dB

• Speaker

  • Type: Built in
  • Power output: 12 W × 2

• Power

  • Voltage: 100 ~ 240 V, 50/60 Hz
  • Standby power: ≤0.5 W
  • Power consumption: 200 W

• Operation Environment

  • Operation temperature: 0°C ~ 40°C
  • Operation humidity: 10% ~ 90%
  • Storage temperature: -20°C ~ 60°C
  • Storage humidity: 10% ~ 90%

• Accessories

  • Standard: Power cord x 1, touch pen x 1 (AA battery not included), touch-pen holder x 1, HDMI 2.0 cable x 1, touch cable x 1, quick-start guide x 1

• Certifications

  • FCC: Yes
  • CE, CB, BSMI: Yes

• Warranty & Service

  • Warranty: 3 years
  • On-site service: Please contact your local dealer/ distributor
