Aver MD330U Medical Grade PTZ Camera Dubai

Aver MD330U Dubai

With an integrated speakerphone and microphone, the Aver MD330U Dubai is equipped with an all-in-one audio system. AVer’s in-house AI Noise Deduction technology makes communication smooth and telemedicine sessions stress free.

Description

Aver MD330U Medical Grade PTZ Camera Dubai

AVer MD330U Dubai is specially designed and medically certified for Telemedicine with the IEC 60601 Medical Certification. The 30X optical zoom lens with 4K output resolution delivers superb image quality. AI Noise Reduction offers a face-to-face communication experience for patients and doctors. A first in the industry, the removable camera head makes 360-degree angle close-up shooting and snapshots possible.

Features:

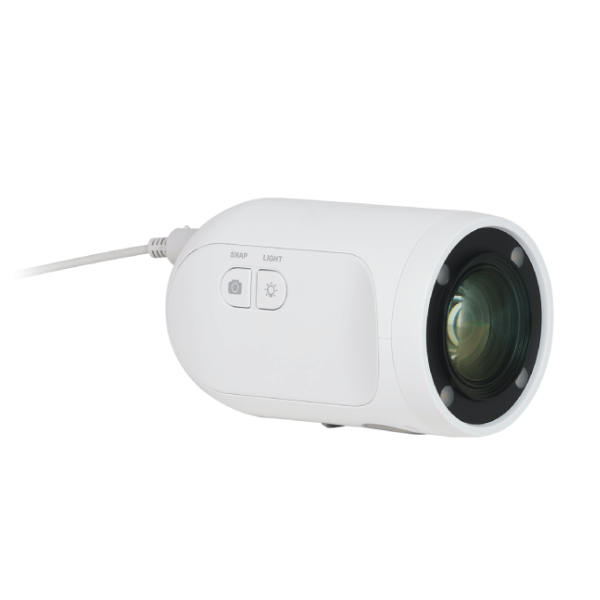

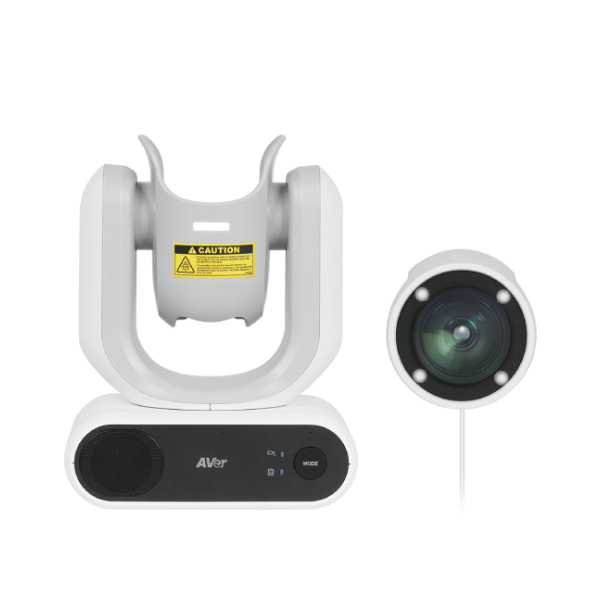

Revolutionary Removable Head Design

The removable camera head design is a true revolution in telemedicine – the doctor can not only make use of the motorized remote controlled PTZ functionality, the near-site medical assistant can also simply remove the camera from the base and easily give the doctor a clear view of any difficult to capture area of interest.

Unparalleled 30X Optical Zoom Capability

The 30X optical zoom lens of the Aver MD330U Dubai picks up even the smallest of details for the doctor to precisely diagnose, thanks to a superior autofocus, zoom speed and speedy camera movements.

Outstanding 4K Resolution

The Aver MD330U Dubai delivers ultra-clear 4K resolution imagery of the patient to the doctor and works together with the excellent 30X optical zoom to allow doctors to make accurate remote diagnoses.

AI Acoustics

Medical Grade Certification

The IEC 60601 medical certification not only ensures stability and safety of the Aver MD330U Dubai, but also guarantees the compatibility of other medical grade devices with the MD330U.

Technical Specifications

Camera

Image Sensor
- 1/2.8″ 4K Exmor CMOS
Effective Picture Elements
- 8 Megapixels
Output Resolutions
- 4K/30 (IP / UVC), 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination
- 7 lux (IRE50, F1.6, 30fps)
S/N Ratio
- ≥ 50 dB
Gain
- Auto, Manual
Shutter Speed
- 1/1 to 1/10,000 sec
Exposure Control
- Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
- Auto, Manual
Optical Zoom
- 30X
Viewing Angles
- DFOV : 75.5° (Wide) to 3.1° (Tele)
- HFOV : 68.0° (Wide) to 2.7° (Tele)
- VFOV : 41.7° (Wide) to 1.5° (Tele)
Focal Length
- f = 4.3 mm (Wide) to 129 mm (Tele)
Aperture (Iris)
- F = 1.6 (Wide) to 4.7 (Tele)
Minimum Working Distance
- 01 m (Wide), 1.2 m (Tele)
Pan / Tilt Angles
- Pan : ±170°, Tilt : +90° / -35°
Pan / Tilt Speed (Manual)
- Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
Preset Speed
- Pan : 200° / sec, Tilt : 200° / sec
Preset Positions
- 10 (IR), 256 (RS-232 / IP)
Camera Control – Protocols
- VISCA (RS-232 / IP), PELCO-D & PELCO-P (RS-232), CGI (IP)
Image Processing
- Noise Reduction (2D / 3D), Flip, Mirror, WDR, BLC
Power Frequencies
- 50 Hz, 60 Hz

Audio

Embedded Speaker
- Yes
Microphone
- Yes, Array Microphone
AI Noise Reduction
- Yes

Interface

Video Outputs
- HDMI, IP, USB
Audio Outputs
- HDMI, IP, USB

General

Power Requirement
- AC 100 – 240V to DC 12V/3.34A
Power Consumption
- 36W
Dimensions (W x H x D)
- 0 x 203.0 x 124.0 mm
Net Weight
- 95 kg
Application
- Indoor
Tally Lamp
- N/A
Security
- Kensington Slot
Remote Control
- Infrared
Operating Conditions
- Temperature : 0 °C to +35 °C
- Humidity : 20% to 80%
Storage Conditions
- Temperature : -20 °C to +60 °C
- Humidity : 20% to 95%

IP Streaming

Resolution
- 4K 30fps
Network Video Compress Formats
- 264, H.265
Maximum Frame Rate
- 4K 30fps
Network Interface
- 10 / 100 / 1000 Base-T
Multi-Stream Capability
- 2 (RTSP / Web Page), 4K 30fps (max.)
Network Protocols
- IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
