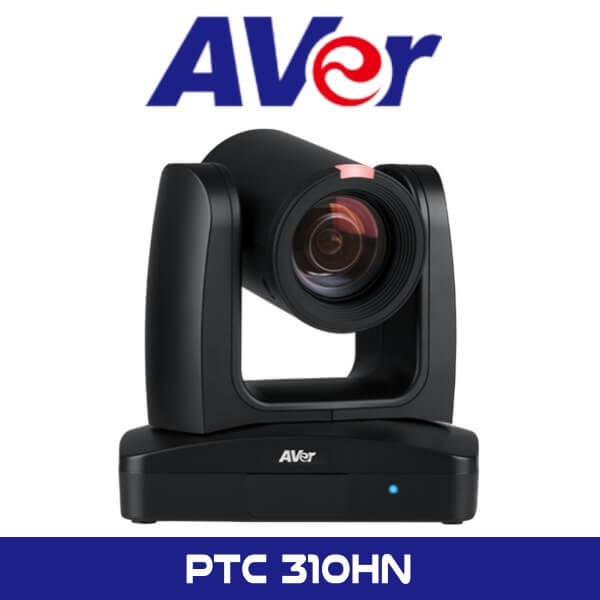

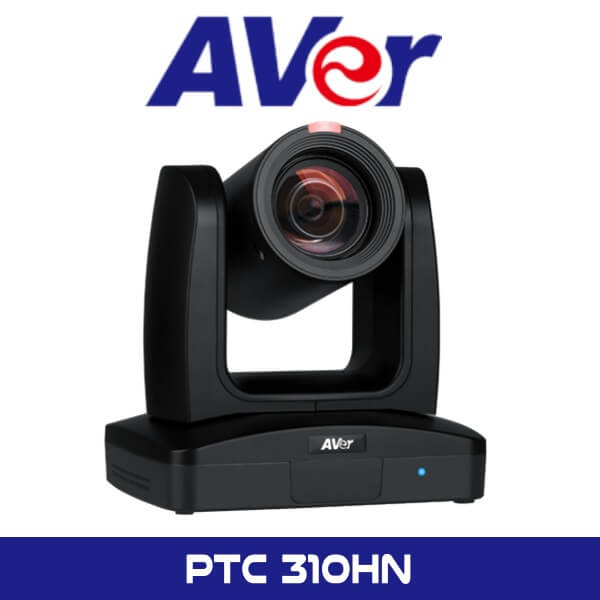

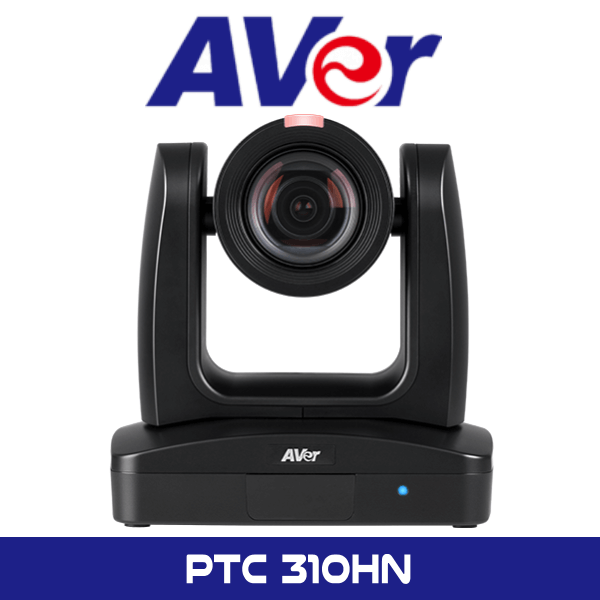

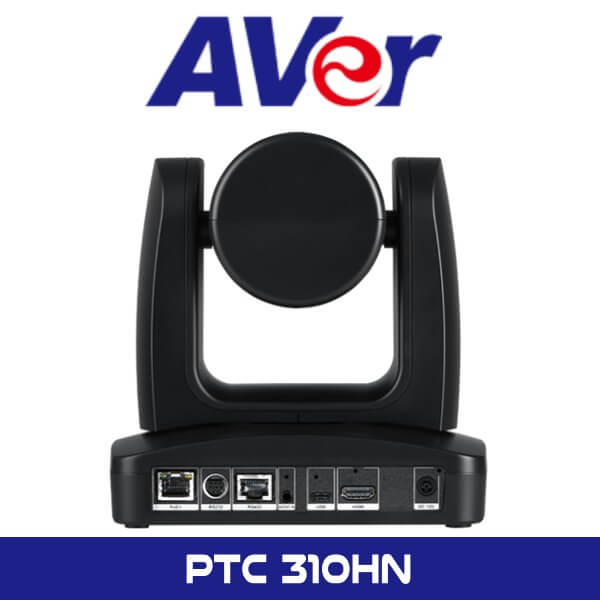

Aver PTC310HN AI Auto Tracking PTZ Camera Dubai
The Aver PTC310HN Dubai AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC310HN features in-house AI functions like Presenter Mode and Zone Mode auto tracking, thanks to Human Detection processing. Embrace its 12X optical zoom lens and 4K resolution to combine with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Your exciting journey of audio and video capturing starts here!
Key Features:
- 4K Output Resolution
- Equipped with 4K resolution, the Aver PTC310HN Dubai provides ultra-precise auto tracking. The PTC310HN also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.
- 12X Optical Zoom & 2X Sensor Zoom
- The zoom power of the Aver PTC310HN Dubai reaches an incredible 24X (12X optical and 2X sensor zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC310HN.
- Human Detection AI
- Welcome AVer’s most advanced AI tool yet—Human Detection. This highly accurate processing function enables the PTC310HN to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.
- Click & Track
- With the Aver PTC310HN Dubai, you can simply click on a target to quickly adjust the shooting angle and initiate precise tracking, ensuring you can redirect in an instant. This advanced feature is easy for anyone to operate via both remote control and intuitive Web UI.
- Presenter Mode
- Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.
- Zone Mode
- Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.
- Hybrid Mode
- Hybrid Mode provides the utmost freedom of movement for performing artists. Preset effective areas for Zone Tracking in advance, and once you step into those areas, you will be targeted together with the content. When you are outside, you are just like in Presenter Mode.
PTC310HN – Technical Specifications
Camera
-
- Image Sensor: 1/2.8″ 4K Exmor CMOS
- Effective Picture Elements: 8 Megapixels
- Output Resolutions: 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50
- Minimum Illumination: 0.4 lux (IRE50, F1.6, 30fps)
- S/N Ratio: ≥ 50dB
- Gain: Auto / Manual
- TV Line: 1400 (Center)
- Shutter Speed: 1/1s – 1/32,000s
- Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
- White Balance: Auto, Manual
- Optical Zoom: 12X
- Digital Zoom: 12X
- Sensor Zoom: 2X
- Viewing Angles: DFOV : 78° (Wide) to 7° (Tele) | HFOV : 70° (Wide) to 6° (Tele) | VFOV : 42° (Wide) to 3° (Tele)
- Focal length: f=3.9 mm (Wide) to 46.8 mm (Tele)
- Aperture (Iris): F=1.6 (Wide) to 2.8 (Tele)
- Minimum Working Distance: 0.3 m (Wide), 1.5m (Tele)
- Pan / Tilt Angles: Pan : ±170°, Tilt : +90° / -30°
- Pan / Tilt Speed (Manual): Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
- Preset Speed: Pan : 200° / sec, Tilt : 200° / sec
- Preset Positions: 10 (IR), 256 (RS-232)
- Camera Control – Interface: RS-232 (DIN8), RS-422 (RJ45), IP
- Camera Control – Protocol: VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
- Image Processing: Noise Reduction (2D / 3D), Flip, Mirror
- Power Frequency: 50Hz / 60Hz
AI Auto Tracking Functions
-
- Tracking Mode: Presenter Mode, Zone Mode
Audio
-
- Channels: 2ch (Stereo)
- Codec: AAC-LC (48 / 44.1 / 32 / 24K), G.711, PCM (8K)
- Sample Rate: 48 / 44.1 / 32 / 24 / 16 / 8 KHz
Interface
-
- Video Outputs: HDMI, IP, USB
- Audio Outputs: HDMI, IP, USB
- Audio Inputs: MIC / Line in
General
-
- Power Requirement: AC100V-AC240V to DC12V/5A
- Power Consumption: 18W
- PoE: PoE+
- Dimensions (W x H x D): 180.0 x 183.5 x 145.0 mm
- Net Weight: 1.7 (±0.1) kg
- Application: Indoor
- Tally: Yes
- Security: Kensington slot
- Remote Control: Infrared
- Operating Condition: Temperature: 0°C to +40°C ; Humidity: 20% to 80%
- Storage Condition: Temperature: -20°C to +60°C ; Humidity: 20% to 95%
IP Streaming
-
- Resolution: 4K 30fps
- Network Video Compress Format: H.264, H.265, MJPEG
- Maximum Frame Rate: 4K 30fps or 1080p 60fps
- Bit-rate Control Modes: VBR/CBR (selectable)
- Range of Bit-rate setting: 512Kbps – 32Mbps
- Network Interface: 10/100/1000Base-T
- Multi-stream Capability: 2 | (RTSP / Web Page), 1080p 60fps (max.)
- Network Protocol: IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
- NDI®|HX Capability: Yes (NDI|HX2)
USB
-
- Connector: USB 3.0
- Video Format: MJPEG
- Maximum Video Resolution: 2160p
- USB Video Class: UVC1.1
- USB Audio Class: UAC1.0
Web UI
-
- Live Video Preview: Yes
- Camera PTZ Control: Pan / Tilt / Zoom / Focus / Preset Control
- Camera / Image Adjustment: Exposure / White Balance / Picture
- Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
-
- IP Search & Configuration Tool: Support Windows® 7 or later
- PTZ Management: Support Windows® 7 or later
- PTZ Control Panel: Support iPadOS® v11 or later
- CaptureShare: Support Windows® 7 or later
Warranty
- Camera: 3 Years
- Accessories: 1 Year
- Package Contents: Camera, Remote Control, Power Adapter, Power Cord, Cable Ties (x 5), Screws (x 10), Cable Fixing Plates (x 2), Ceiling Mount Brackets (x 2), Quick Start Guide
System Requirements
- CPU: Intel® Core™ i5 or later
- RAM: 4 GB
- Storage: 10 GB free disk space for installation
- Networking: 100 Mbps network card
- OS: Windows® PC & laptop (Windows® 7, 8, 10)
