Description

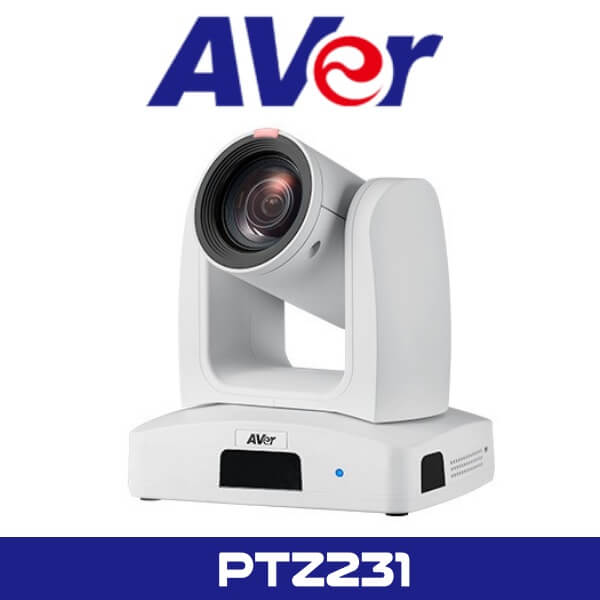

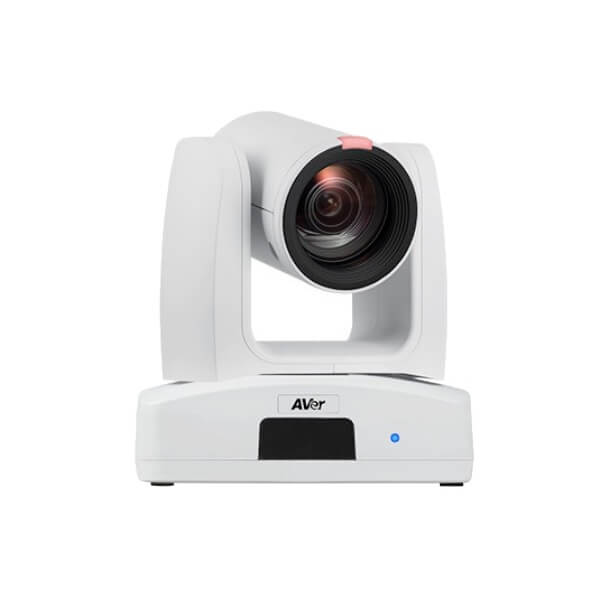

Aver PTZ231 Professional PTZ Camera Dubai

Experience the pinnacle of streaming control with the AVer PTZ231 Dubai, an exceptional PTZ camera designed to elevate your content creation to new heights. Offering unparalleled precision and versatility, this advanced camera empowers you with full command over your streaming endeavors. Immerse your audience in the brilliance of full HD 1080p resolution at an impressive 60 frames per second, ensuring every detail is captured with stunning clarity and fluidity.

With its remarkable 30X optical zoom capabilities, the AVer PTZ231 Dubai lets you effortlessly capture distant subjects with uncompromising sharpness, expanding the horizons of your visual storytelling. But the innovation doesn’t stop there; immerse yourself in the realm of intelligent shooting with the cutting-edge SmartShoot feature, intelligently tracking subjects and adjusting framing for seamless, professional-grade results.

Elevate your livestream performances to unprecedented levels of excellence and captivate your viewers with the unparalleled capabilities of the AVer PTZ231 Dubai. Whether you’re broadcasting live events, hosting virtual conferences, or producing engaging content, this camera redefines what’s possible, ensuring that every moment you capture is imbued with the magic of cinematic quality and precision. Embrace the future of streaming with confidence and dazzle your audience with the transformative power of the AVer PTZ231 Dubai.

Specifications

Camera

Image Sensor
- 1/2.8” 1080p Exmor CMOS
Effective Picture Elements
- 2 Megapixels

Output Resolutions
- 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination
- 0.5 lux (IRE50, F1.6, 30fps)

S/N Ratio
- ≥ 50 dB
Gain
- Auto, Manual

TV Lines
- 1000 (Center)
Shutter Speed
- 1/1 to 1/32,000 sec

Exposure Control
- Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
- Auto, Manual, ATW, One Push

Optical Zoom
- 30X
Digital Zoom
- 1X

Total Zoom
- 30X
Viewing Angles
- DFOV: 69.2° (Wide) to 2.8° (Tele)
- HFOV: 62.3° (Wide) to 2.5° (Tele)
- VFOV: 37.3° (Wide) to 1.4° (Tele)

Focal Length
- f = 4.5 mm (Wide) to 135 mm (Tele)
Aperture (Iris)
- F = 1.8 (Wide) to 4.7 (Tele)

Minimum Working Distance
- 0.1 m (Wide)
- 1.2 m (Tele)
Pan / Tilt Angles
- Pan : ±170°
- Tilt : +90° / -30°

Pan / Tilt Speed (Manual)
- Pan : 0.1° to 100° / sec
- Tilt : 0.1° to 100° / sec
Preset Speed
- Pan : 200° / sec
- Tilt : 200° / sec

Preset Positions
- 10 (IR)
- 256 (RS-232, RS-422, IP)
Camera Control – Interfaces
- RS-232 (DIN8)
- RS-422 (RJ45)
- IP

Camera Control – Protocols
- VISCA (RS-232 / RS-422 / IP)
- PELCO-D & PELCO-P (RS-232 / RS-422)
- CGI (IP)
- ONVIF
Image Processing
- Noise Reduction (2D / 3D)
- Flip
- Mirror

Power Frequencies
- 50 Hz, 60 Hz

AI Function

Mode
- SmartShoot

Audio

Channels
- 2ch Stereo
Codecs
- AAC-LC

Interface

Video Outputs
- 3G-SDI, HDMI, IP, USB
Audio Outputs
- 3G-SDI, HDMI, IP, USB

Audio Inputs
- MIC in, Line in

General

Power Requirement
- AC 100 – 240V to DC 12V/2A
Power Consumption
- 19W

PoE
- PoE+
Dimensions (W x H x D)
- 180.0 x 192.0 x 145.0 mm

Net Weight
- 2.0 (±0.1) kg
Application
- Indoor

Tally Lamp
- Yes
Security
- Kensington Slot

Remote Control
- Infrared
Operating Conditions
- Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%

Storage Conditions
- Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%

IP Streaming

Resolution
- 1080p 60fps
Network Video Compress Formats
- H.264, H.265, MJPEG

Maximum Frame Rate
- 1080p 60fps
Bit-Rate Control Modes
- VBR, CBR (selectable)

Range of Bit-Rate Setting
- 512 Kbps to 120 Mbps
Network Interface
- 10 / 100 / 1000 Base-T

Multi-Stream Capability
- 4
- 1080p 60fps: RTSP, HDMI, USB & 3G-SDI
Network Protocols
- IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP

NDI^®HX
- License Upgrade to NDI HX2 available in 2024Q2

USB

Connector
- USB 3.1
Video Formats
- MJPEG, YUY2

Maximum Video Resolution
- 1080p
USB Video Class (UVC)
- UVC 1.1

USB Audio Class (UAC)
- UAC 1.0

Web UI

Live Video Preview
- Yes
Camera PTZ Control
- Pan, Tilt, Zoom, Focus, Preset Control

Camera / Image Adjustment
- Exposure, White Balance, Picture
Network Configuration
- DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

IP Search and Configuration Tool
- Support Windows^® 7 or later
PTZ Management
- Support Windows^® 7 or later

PTZ Control Panel
- Supports iOS & iPadOS^® 11 or later
PTZ Link
- Supports Windows^® 7 or later, macOS^® 10.14 or later

OBS Plugin for PTZ Cameras
- Supports Windows^® 8 or later, macOS^® High Sierra v10.13 or later
CaptureShare
- Supports Windows^® 7 or later, macOS^® 10.14 or later

Warranty

Camera
- 5 Years
Accessories
- 1 Year

Package Contents
- Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate (x2), M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Tie (x4)
