Description

Aver TR535 Dual Lens Auto Tracking Camera Dubai

Step into the future of streaming with the Aver TR535 Dubai Dual Lens Auto Tracking Camera, a revolutionary tool designed for professionals in broadcasting, streaming, and recording. This cutting-edge camera is meticulously crafted to excel in dynamic and demanding environments, offering an exceptional combination of advanced AI technology and high-quality optics.

The Aver TR535 Dubai is equipped with a powerful 30X zoom lens, complemented by a wide-angle lens that ensures every detail, whether small or expansive, is captured with precision. Whether your focus is on covering an entire room or zooming in on intricate details, the TR535 delivers. The camera’s 4K PTZ capability brings every scene to life with stunning clarity and vibrant detail, making your content visually compelling.

What truly sets the Aver TR535 Dubai apart is its four AI-driven tracking modes, which offer unmatched precision in following subjects. These intelligent modes adapt seamlessly to your needs, ensuring smooth, automated transitions that keep your content both engaging and professional. With the TR535, you’re not merely capturing video; you’re delivering an extraordinary visual experience. Embrace the future of smart, automated streaming with the Aver TR535 Dubai, and take your content to unparalleled new heights.

Features

• Dual Lens Design
• 4K Ultra HD Resolution
• 30X Optical Zoom
• IP/HDMI/USB/3G-SDI
• PiP Mode
• 4 Auto Tracking Modes
• Multi-Presenter Detection
• Human Detection AI
• Voice Tracking
• 5-Year Warranty

Technical Specifications

PTZ Camera

• Image Sensor
  • 1/2.8” 4K Sony Exmor CMOS
• Effective Picture Elements
  • 8 Megapixels
• Output Resolutions
  • 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination
  • 5 lux (IRE50, F1.6, 30fps)
• S/N Ratio
  • ≥ 50 dB
• Gain
  • Auto, Manual
• TV Lines
  • 1600 (Center)
• Shutter Speed
  • 1/1 to 1/10,000 sec
• Exposure Control
  • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance
  • Auto, Manual, ATW, One Push, Indoor, Outdoor
• Optical Zoom
  • 30X
• Digital Zoom
  • 1X
• Total Zoom
  • 30X
• Viewing Angles
  • DFOV: 69.2° (Wide) to 2.8° (Tele)
  • HFOV: 62.3° (Wide) to 2.5° (Tele)
  • VFOV: 37.3° (Wide) to 1.4° (Tele)
• Focal Length
  • f = 4.5 mm (Wide) to 135 mm (Tele)
• Aperture (Iris)
  • F = 1.8 (Wide) to 4.7 (Tele)
• Minimum Working Distance
  • 1 m (Wide)
  • 2 m (Tele)
• Pan / Tilt Angles
  • Pan : ±170°
  • Tilt : +90° / -30°
• Pan / Tilt Speed (Manual)
  • Pan : 0.1° to 100° / sec
  • Tilt : 0.1° to 100° / sec
• Preset Speed
  • Pan : 200° / sec
  • Tilt : 200° / sec
• Preset Positions
  • 10 (IR)
  • 256 (RS-232, RS-422, IP)
• Camera Control – Interfaces
  • RS-232 (DIN8)
  • RS-422 (RJ45)
  • IP
  • USB
• Camera Control – Protocols
  • VISCA (RS-232 / RS-422 / IP)
  • PELCO-D & PELCO-P (RS-232 / RS-422)
  • CGI (IP)
  • USB
  • ONVIF
• Image Processing
  • Noise Reduction (2D / 3D)
  • Flip
  • Mirror
  • WDR
  • BLC
• Power Frequencies
  • 50 Hz, 60 Hz

Wide Angle Camera

• Image Sensor
  • 1/2.8” 4K Sony Low Lux CMOS
• Effective Picture Elements
  • 8 Megapixels
• Output Resolutions
  • 4K/30
• Focal Length
  • 22 mm
• White Balance
  • Auto
• Exposure
  • Auto
• Viewing Angles
  • DFOV: 113°
  • HFOV: 105°
  • VFOV: 71°
• Pan / Tilt Angles
  • Tilt: +18° / -90°

AI Auto Tracking Functions

• Tracking Modes
  • Presenter Mode
  • Zone Mode
  • Hybrid Mode
  • Segment Mode

Privacy Protection Mechanisms

• Protection Mode
  • Sleep Mode

Audio

• Channels
  • 2ch Stereo
• Codecs
  • AAC-LC (48 K)
• Sample Rates
  • 48 KHz

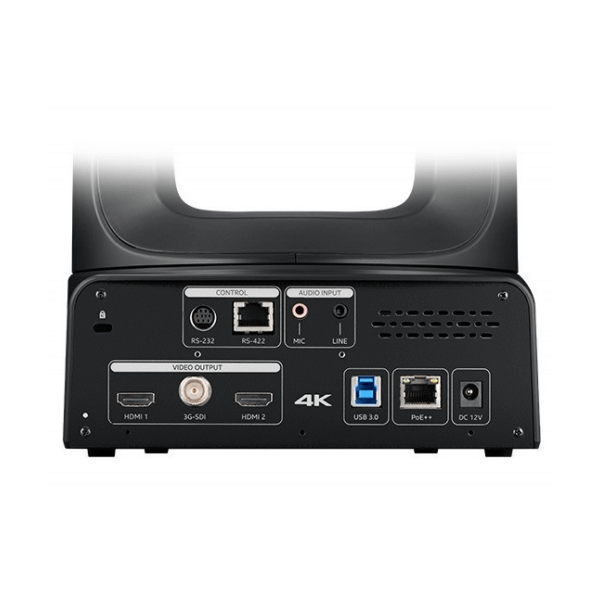

Interface

• Video Outputs
  • 3G-SDI, HDMI x 2, IP, USB
• Audio Outputs
  • 3G-SDI, HDMI x 2, IP, USB
• Audio Inputs
  • MIC in, Line in

General

• Power Requirement
  • AC 100 – 240V to DC 12V/5A
• Power Consumption
  • 29W
• PoE
  • PoE++
• Dimensions (W x H x D)
  • 5 x 250.7 x 218.5 mm
• Net Weight
  • 6 (±0.1) kg
• Application
  • Indoor
• Tally Lamp
  • Yes
• Security
  • Kensington Slot
• Remote Control
  • Infrared
• Operating Conditions
  • Temperature: 0 °C to +40 °C
  • Humidity: 20% to 80%
• Storage Conditions
  • Temperature : -20 °C to +60 °C
  • Humidity: 20% to 95%
• Sustainability
  • Plastic Material: ABS
  • Sustainability Method: PCR-PC
  • Recycled Content %: 30%

IP Streaming

• Resolution
  • 4K 60fps
• Network Video Compress Formats
  • 264, H.265, MJPEG
• Network Audio Compress Formats
  • AAC-LC (48 K)
• Maximum Frame Rate
  • 2160p 60fps
• Bit-Rate Control Modes
  • VBR, CBR (selectable)
• Range of Bit-Rate Setting
  • 512 Kbps to 64 Mbps
• Network Interface
  • 10 / 100 / 1000 / 2500 Base-T
• Multi-Stream Capability
  • 7
  • 4K 60fps: RTSP (x2), HDMI (x2) & USB (x2)
  • 1080p 60fps: 3G-SDI
• Network Protocols
  • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
• NDI^®High Bandwidth
  • N/A
• NDI^®HX2
  • N/A
• NDI^®Genlock
  • N/A
• NDI^®Embedded Bridge
  • N/A

USB

• Connector
  • USB 3.2 Gen 1
• Video Formats
  • MJPEG, YUY2
• Audio Format
  • PCM
• Maximum Video Resolution
  • 2160p
• USB Video Class (UVC)
  • UVC 1.1
• USB Audio Class (UAC)
  • UAC 1.0

Web UI

• Live Video Preview
  • Yes
• Camera PTZ Control
  • Pan, Tilt, Zoom, Focus, Preset Control
• Camera / Image Adjustment
  • Exposure, White Balance, Picture
• Network Configuration
  • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search and Configuration Tool
  • Support Windows^®7 or later
• PTZ Management
  • Support Windows^®7 or later
• PTZ Control Panel
  • Supports iOS & iPadOS^®9 or later
• PTZ Link
  • Supports Windows^®7 or later, macOS^®14 or later
• OBS Plugin for PTZ Cameras
  • Supports Windows^®8 or later, macOS^® High Sierra v10.13 or later
• CaptureShare
  • Supports Windows^®7 or later, macOS^®14 or later

Warranty

• Camera
  • 5 Years
• Accessories
  • 1 Year
• Package Contents
  • Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Tie (x 7), M2 x 4 mm Screw (x 5), M3 x 6 mm Screw (x3), 1/4′-20L 6.5mm Screw (x2), Cable Fixing Plate (x 2), Ceiling Mount Bracket (x 2), Drilling Paper, Quick Start Guide
• Optional Accessories
  • Aver CL01 PTZ Camera Controller, L-Type Wall Mount
