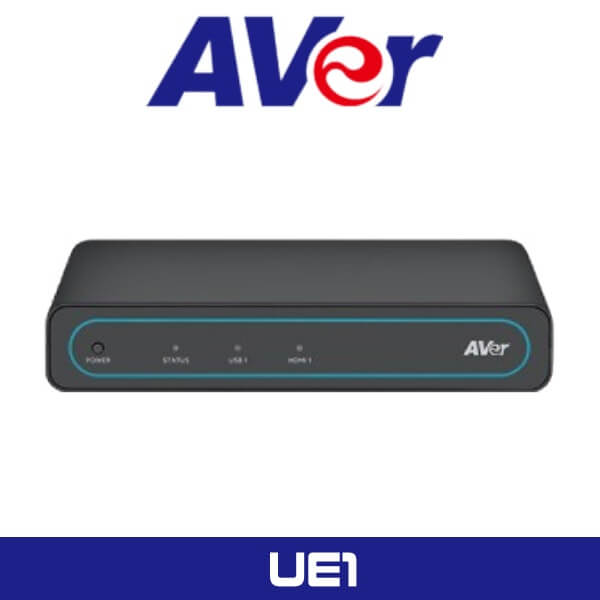

Aver UE1 USB Extender Dubai

The Aver UE1 Dubai USB Extender is a cutting-edge solution designed to overcome the traditional limitations of USB distance, allowing you to extend the reach of your PTZ cameras far beyond the constraints of standard USB connections. This powerful USB 3.0 extension system empowers you to transmit high-bandwidth signals with impeccable clarity over long distances, ensuring uninterrupted and top-tier video performance. Whether in a conference room, lecture hall, studio, or live-streaming setup, the Aver UE1 Dubai is the ideal choice for environments that require seamless and reliable connectivity.

By leveraging your existing cabling, the UE1 offers a simple, cost-effective way to maintain exceptional video quality, even when positioning PTZ cameras in hard-to-access or remote locations. Its sleek, unobtrusive design allows the extender kit to integrate effortlessly into any professional setting, ensuring it remains discreet while delivering high performance.

Whether you’re broadcasting live events, recording critical meetings, or supporting remote learning, the Aver UE1 Dubai USB Extender provides smooth and reliable video transmission. This allows you to expand your capabilities and reach new audiences without ever compromising on performance.

Features

Effortless Extension

Place your PTZ camera farther away while maintaining high-quality 4K video.

Flexible Deployment

Utilizes readily-available CAT cabling for a cost-effective and adaptable installation.

Compact Design

Takes up minimal space and integrates seamlessly into any environment.

Plug-and-Play Simplicity

Operates immediately upon connection, eliminating the need for installing drivers.

Technical Specifications

• USB Audio Class (UAC) Protocol
  • USB 3.0
• USB Video Class (UVC) Protocol
  • USB 3.0
• Output Resolution
  • USB: Up to 4K 60fps
  • HDMI: Up to 4K 60fps (Available in 2024Q4)
• Transmission Rate
  • Up to 5 Gbps
• Network Bandwidth
  • 1 Gbps
• Transmission Distance
  • 100m (328ft.) over CAT5e/6/7 cable
• Connections
  • Output
    • USB 3.0 Type-B x 1
    • RJ-45 x 1
    • HDMI x 1
  • Input
    • RJ-45 x 1
• LED Indicators
  • Yes, status and connections LED
• Power Source
  • AC 100 – 240V to DC 54V/1.2A
• Power Consumption
  • 65W
• Power Supply to Cameras
  • PoE++
• Dimensions (W x H x D)
  • 0 x 32.5 x 118.0 mm
• Net Weight
  • 62 kg
• Operating Conditions
  • Temperature: 0 °C to +40 °C
  • Humidity: 20% to 80%
• Storage Conditions
  • Temperature: -20 °C to +60 °C
  • Humidity: 20% to 95%
• Warranty
  • 5 Years
• Package Content
  • UE1, Power Adapter & Power Cord, USB 3.0 Type-A to B Cable, DIN Rail Mounting Clip, Cable Fixing Plate, Cable Tie (x3), M3 x 5.1 mm Screw (x4), Quick Start Guide
