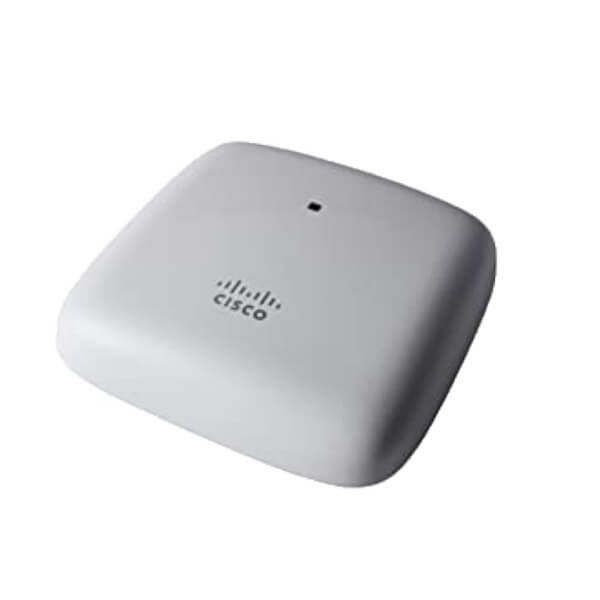

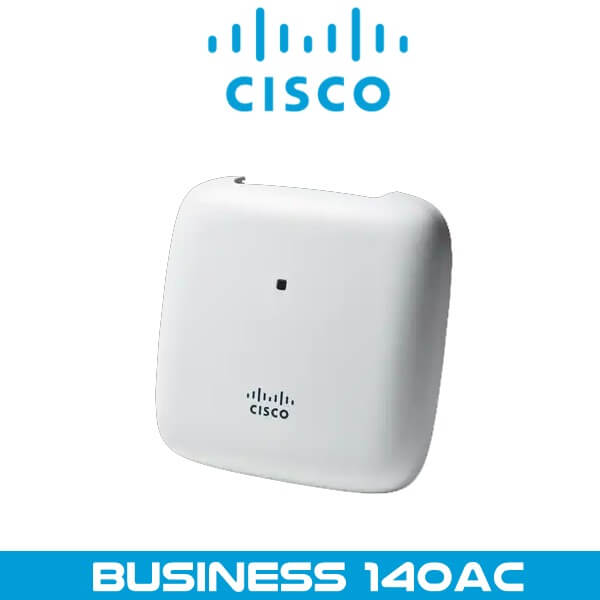

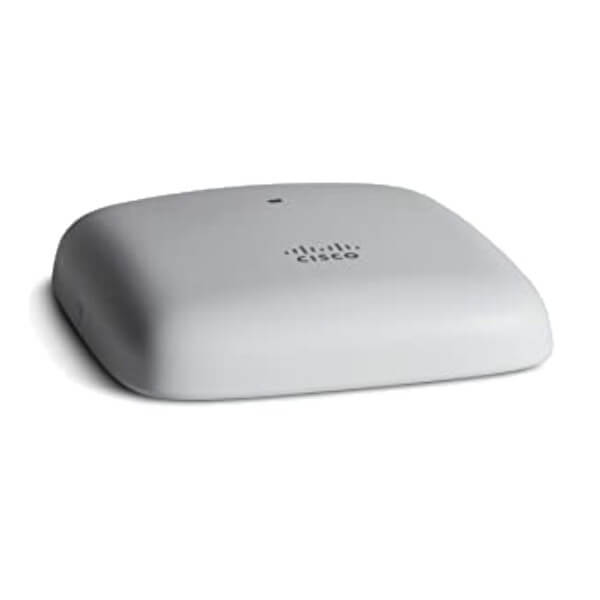

Cisco Business140AC Access Point Dubai

Cisco Business140AC Dubai

With its powerful internal antennas and support for 2×2 MU-MIMO technology, the Cisco Business140AC Dubai can communicate with multiple devices simultaneously, transferring up to 867 Mb/s over the 5 GHz frequency and 300 Mb/s on the 2.4 GHz band.

Description

Cisco Business140AC Access Point Dubai

Enhance your business with fast and reliable Wi-Fi connections by connecting the Cisco Business140AC Dubai Dual-Band Wireless Access Point to your compatible network router or switch. This kit includes five dual-band 802.11ac Wave 2 access points, each of which can be discreetly mounted onto a wall or ceiling to transfer data at up to 1167 Mb/s over the 2.4 GHz and 5 GHz frequencies. The 140AC’s Gigabit Ethernet port supports passive 802.3af power over Ethernet (PoE), allowing you to transfer both data and power over a single cable when connected to compatible devices. Alternatively, you can power the device with a separately purchased PoE injector. Up to 50 (25 recommended) access points can be used to create a mesh network that operate using a single network ID (SSID) and password. Each Cisco Business140AC Dubai also supports up to 25 Cisco Business mesh extenders to maximize coverage, providing users with smooth experiences as they browse the internet, watch videos, and more, while moving from one location to another. Use the Cisco Business mobile app to configure, manage, and monitor your network and its connected devices.

Features:

Strong Connections
With its powerful internal antennas and support for 2×2 MU-MIMO technology, the Cisco Business140AC Dubai can communicate with multiple devices simultaneously, transferring up to 867 Mb/s over the 5 GHz frequency and 300 Mb/s on the 2.4 GHz band. Each access point can handle up to 400 clients or each system can handle 1000.
Security
Your wireless network is protected by WPA2 encryption with WPA3 support coming in a Post-Frame Check Sequence (FCS) release. Other security features include RADIUS authentication, support for up to 16 VLANs, and guest network logins that can be authenticated against Google and Facebook.
Cisco Business App
With the Cisco Business mobile app for Android and iOS, you can quickly expand your network by using Quick Response (QR) codes to add new mesh extenders and devices. You can also use the app to monitor network usage, traffic patterns, and network throughput to help ensure optimal user experiences.
Flexible Mounting
You can attach the Cisco Business Cisco Business140AC Dubai access point to a wall or ceiling, including a T-bar rail mounting, using the included hardware.

Specifications

Wireless

Wireless Frequency Bands : 2.4 GHz, 5 GHz Dual-Band
MU-MIMO Support : 2 x 2
WLAN Mode : Wi-Fi 5 (802.11ac)
Antenna Gain : 2 to 4 dBi
Transmit Power : 20 dBm
Supported Protocols : MAC Filtering
RADIUS : Antenna Placement

Internal

Bluetooth : None
Throughput

1167 Mb/s Total
5 GHz : 867 Mb/s
4 GHz : 300 Mb/s

Interface

Ports

1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE
1 x Ethernet (RJ45) (Console)

USB Sharing Support : No

Security

Guest Network Support : Yes
Wireless Security : WPA2
Lock Slot : No

Management

Operation Modes : Access Point
Supported Clients : 400

Hardware

RAM : 1 GB
Storage Capacity : 256 MB
CPU : 710 MHz Quad-Core
Supported IEEE Standards : 802.11a, 802.11ac, 802.11b, 802.11d, 802.11g, 802.11h, 802.11i, 802.11n, 802.11r, 802.1x, 802.3af

Electrical

Power Consumption : ≤8.3 W

Environmental

Operating Temperature : 32 to 122°F / 0 to 50°C
Storage Temperature : -22 to 158°F / -30 to 70°C
Operating Humidity : 10 to 90%
Storage Humidity : 10 to 90%
Operating Altitude : 9842′ / 3000 m
Storage Altitude : 15,000′ / 4572 m
