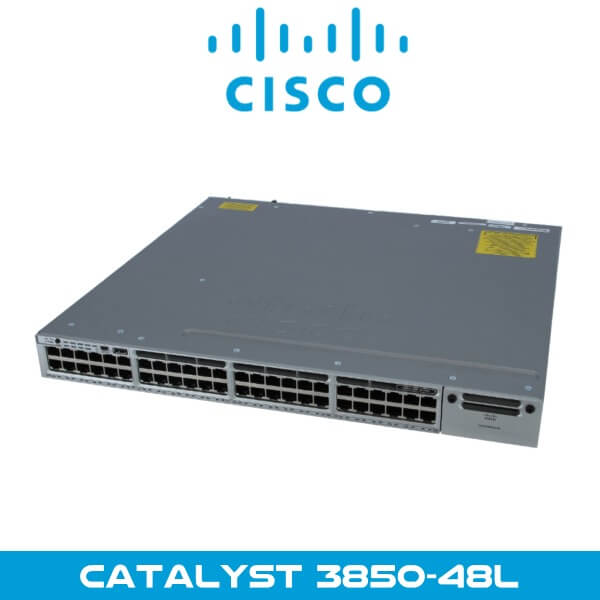

Cisco Catalyst3850-48L Network Switch Dubai

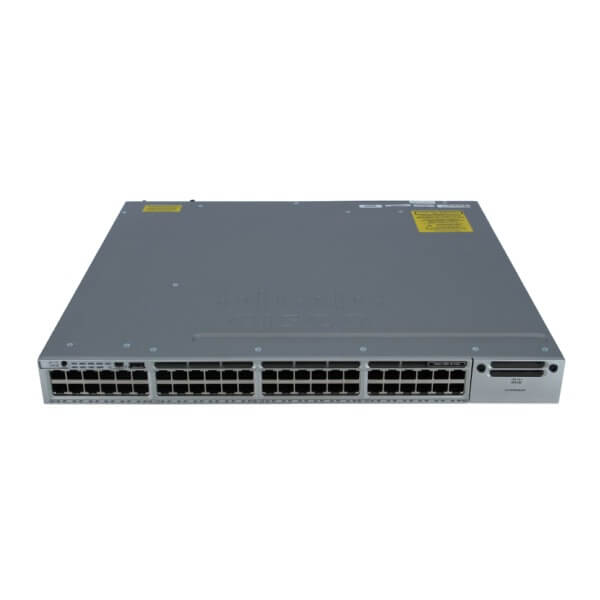

The Cisco Catalyst3850-48L Dubai switch is the next generation stackable enterprise level switch and integrated with 48 Ethernet POE + ports with upgradeable LAN base IOS image.

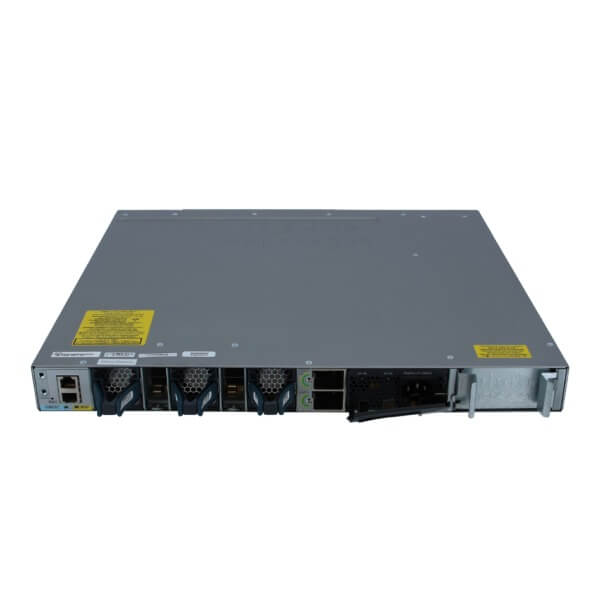

The Cisco Catalyst3850-48L Dubai supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed.
The cisco switch comes with an upgradeable LAN base IOS image. WS-C3850-48P-L is designed for the access layer with 255 VLANs and IEEE802.3at POE+ standard supporting.
Features
- Integrated wireless controller capability with :
- Up to 40G of wireless capacity per switch (48-port models)
- Support for up to 50 access points and 2000 wireless clients on each switching entity (switch or stack)
- 24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE)
- Cisco StackWise-480 technology provides scalability and resiliency with 480 Gbps of stack throughput
- Cisco StackPower™ technology provides power stacking among stack members for power redundancy
- Three optional uplink modules with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, or 4 x 10 Gigabit Ethernet ports
- Dual redundant, modular power supplies and three modular fans providing redundancy
- Full IEEE 802.3at (PoE+) with 30W power on all ports in 1 rack unit (RU) form factor
- Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF) Version 9, and enhanced security features
- Single universal Cisco IOS® Software image across all license levels, providing an easy upgrade path for software features
- Enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support
Technical Specs
| Product Code | WS-C3850-48U-L |
| Enclosure Type | 1 RU |
| Feature Set | LAN Base |
| Network SFP uplink module selection |
|
| Ports | 48 x 10/100/1000 ports with UPoE |
| Available PoE Power | 800W |
| Maximum stacking number | 9 |
| Stack bandwidth | 480 Gbps |
| Forwarding Performance | 130.95 Mpps |
| Switching Capacity | 176 Gbps |
| RAM | 4 G |
| Flash Memory | 2 G |
| Dimensions | 44.5 cm x 44.5 cm x 4.45 cm |
| Package Weight | 17.49 Kg |
