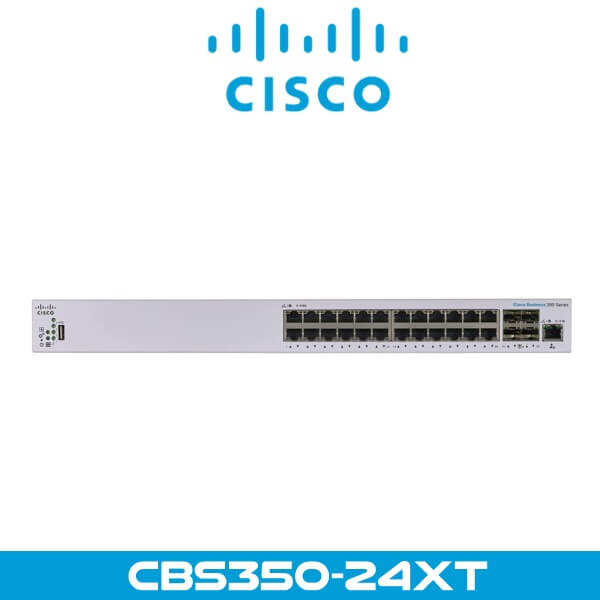

Cisco CBS350-24XT Network Switch Dubai

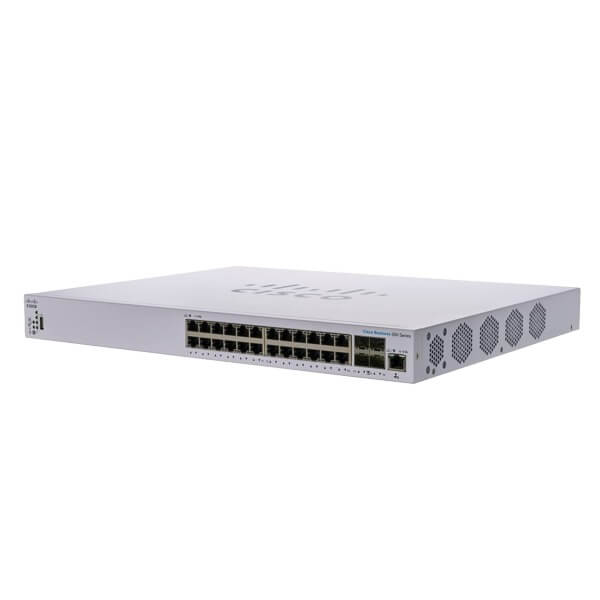

The Cisco CBS350-24XT Dubai managed rackmount switch features twenty-four 10G SFP+ fiber ports that work with compatible wired devices such as computers, network attached storage, and more. There are also four 10G fiber SFP+ / copper RJ45 combo ports available for high-speed uplinks. Its extensive Layer 2 and Layer 3 features include secure connections, clear communications, and link aggregation to create up to eight port groups for multi-Gig connections to compatible devices. Its 480 Gb/s switching capacity and 240 Mbps forwarding rate also help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS350-24XT Dubai and its connected devices. The four fan design helps to maintain optimal temperatures while the switch to operates quietly in the background.
Features:
Performance
Extensive Security
- Support for features such as IEEE 802.1x and port security limit access to specific segments of your network while web-based authentication provides a consistent interface to all types of host devices and operating systems.
- Advanced defense mechanisms such as dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping help to detect and block network attacks. When combined, these protocols may be referred to as IP-MAC port binding (IPMB).
- The IPv6 First Hop Security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check to protect your IPv6 network against a range of address spoofing and man-in-the-middle attacks.
IPv6 Support
Layer 3 Static Routing
True Stacking
Compact Design
Energy Efficient
Specifications
| Ports | 24 x 10Gb SFP+ 4 x 10Gb Combo (Ethernet/SFP) 1 x Ethernet (RJ45) |
| Layer Services Supported | Layer 2 Support, Layer 3 Support |
| Supported Protocols | Head-of-Line (HOL) Blocking IGMP Snooping IPv4 IPv6 Link Aggregation MAC Filtering Port Mirroring RADIUS SNMPv1 SNMPv2c SNMPv3 |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 16K |
| Multicast Groups | 2000 |
| VLAN IDs | 4094 |
| Security Features | DoS Attack Prevention RADIUS Authentication Storm Control |
| Access Control List | 1024 |
| IP Interfaces | 128 |
| Static Routes | 990 |
| SNMP Support | 1, 2c, 3 |
| RFC | RFC 4330 |
| Supported IEEE Standards | 802.1ab, 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3an, 802.3az, 802.3u, 802.3x, 802.3z |
| Forwarding Rate | 240 Mpps |
| Switching Bandwidth | 480 Gb/s |
| Priority Queues | 8 |
| Packet Buffer | 3 MB |
| Flash Memory | 256 MB |
| Processor | 800 MHz ARM |
| Memory | 512 MB |
| Power Draw | 39.00 W (Max) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | Internal |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -13 to 158°F / -25 to 70°C |
| Storage Humidity | 10 to 90% |
| Noise Level | 43.0 dB |
| Cooling System | Fan |
| Mean Time Between Failures (MTBF) | 1,356,179 Hours |
| Indicator Lights | Link/Activity, Speed, System |
| Rack Form Factor | 1 RU |
| Dimensions | 17.3 x 13.8 x 1.7″ / 440 x 350 x 44 mm |
| Weight | 9.7 lb / 4.4 kg |
