Description

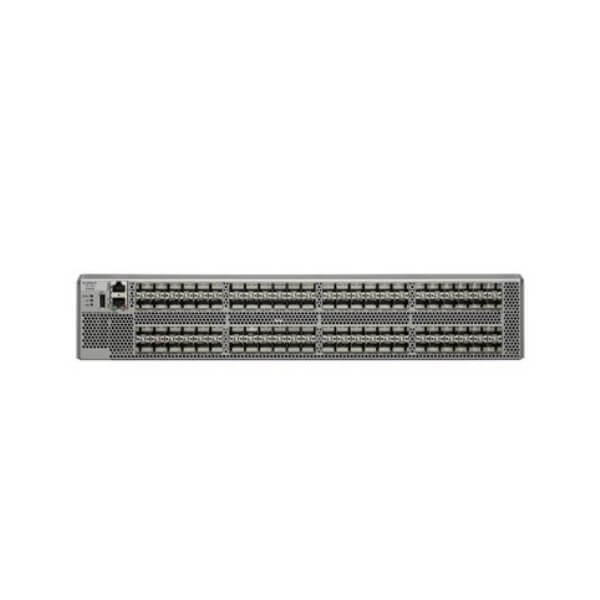

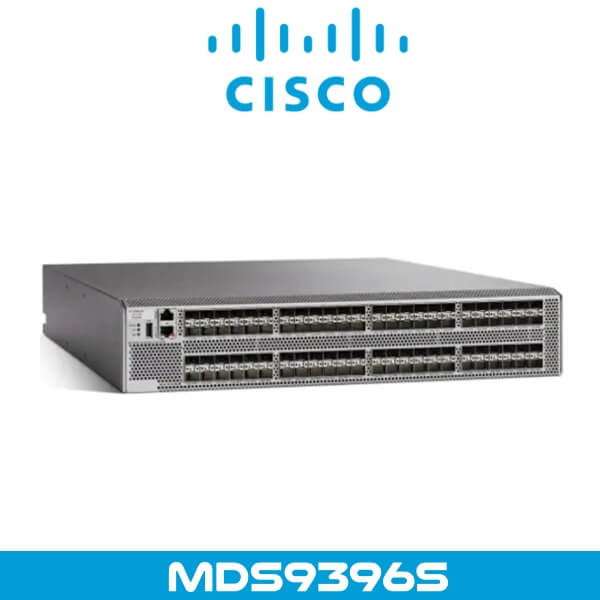

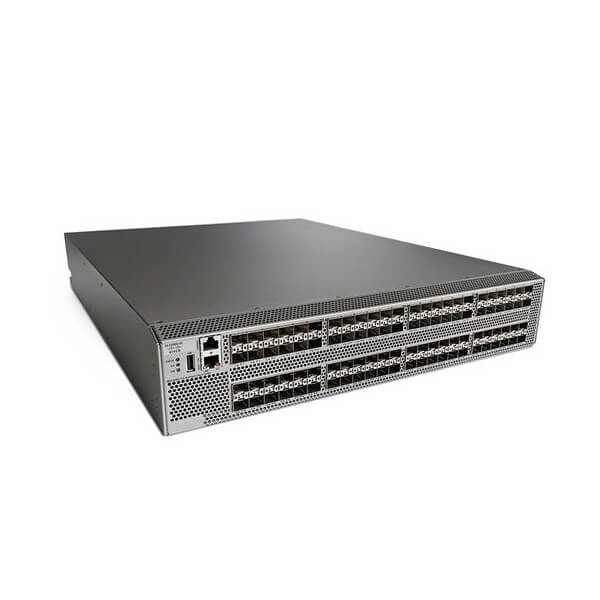

Cisco MDS9396S Multilayer Fabric Switch Dubai
Features
-
96 licensed ports, or 48 licensed ports expandable up to 96 ports in 12 port increments with On-Demand licenses.
-
All Fibre Channel ports capable of line rate at 2, 4, 8, 10, 16 Gbps.
-
Port interfaces that support field-replaceable, hot-swappable small form-factor pluggable (SFP) transceivers.
-
Redundant hot-swappable power supplies and fan trays.
-
Port Channels for Inter-Switch Link (ISL) resiliency, and F-port channeling for resiliency on uplinks from a Cisco MDS 9396S operating in NPV mode.
-
Enterprise class features such as In-Service Software Upgrades (ISSU), Virtual SANs (VSANs), security features, and Quality of Service (QoS).
-
Power On Auto Provisioning (POAP) to automate software image upgrades and configuration file installation on newly deployed switches.
-
Generic OnLine Diagnostics (GOLD), a built in diagnostic system with intelligent boot up and periodic runtime tests.
-
Full compatibility with the Cisco MDS 9000 Family.
Quick Specs
|
Description |
Specification |
|---|---|
|
Temperature, ambient operating |
32 to 104°F (0 to 40°C) |
|
Temperature, ambient non-operating and storage |
-40 to 158°F (-40 to 70°C) |
|
Humidity (RH), ambient (non-condensing) operating |
10 to 90% |
|
Humidity (RH), ambient (non-condensing) non-operating and storage |
5 to 95% |
|
Altitude, operating |
-197 to 6500 ft (-60 to 2000 m) |
|
Noise levels |
60 dB |
