Description

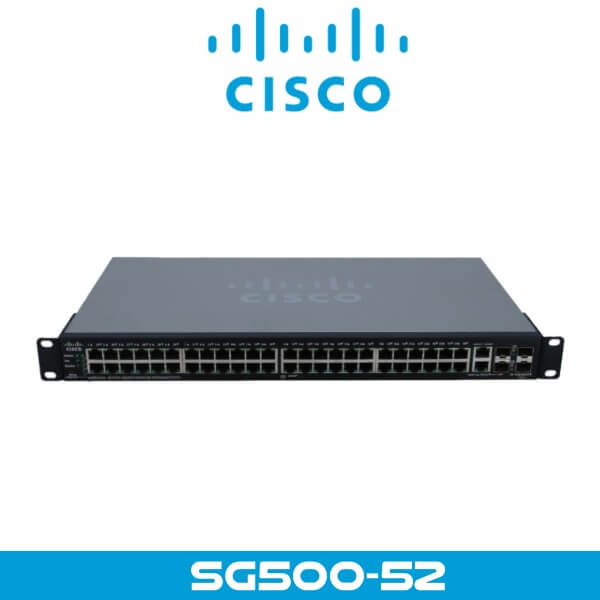

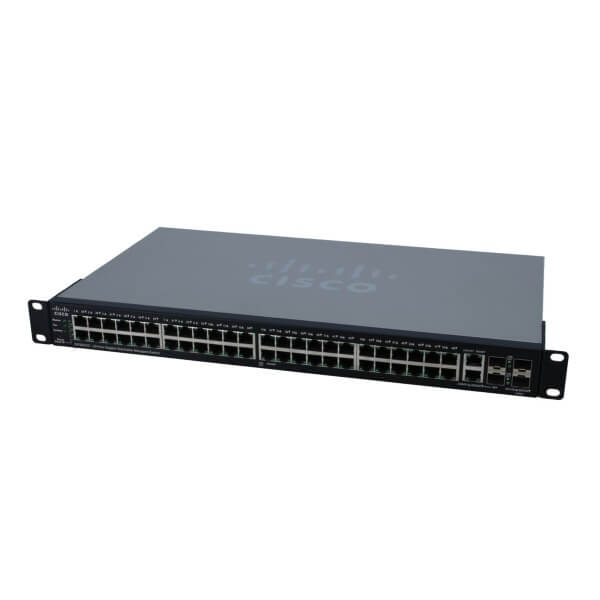

Cisco SG500-52 Network Switch Dubai
With 48 Gigabit Ethernet ports and 4 Gigabit Ethernet combo ports, the Cisco SG500-52 Dubai is designed to be the workhorse of your network. Each of the 48 Gigabit Ethernet ports offers enhanced data transfer rates to ensure business applications have the necessary bandwidth to operate smoothly. This 500 Series Cisco switch features a 120 Gbps switching capacity along with 77.38 Mbps data transfer capacity. Inside the 52-port Gigabit switch you will find 256 MB of 800 MHz ARM CPU memory along with 32 MB flash memory to ensure smooth operation while the built-in LED indicators show the status of LED power savings, system, link/act, and speed.
With a simple-to-use graphical interface, this Cisco SG500-52 Dubai switch is easy to deploy and manage. Additionally, admins can take advantage of the switch’s ability to detect network devices and configure a variety of network settings automatically. To expand outside the confines of the 52 ports on this switch, the unit can be stacked, making it easy to configure, manage, and troubleshoot all switches as a single unit.
Features:
Easy Deployment and Use
Simple-to-use graphical interfaces of the Cisco SG500-52 Dubai reduce the time required to deploy, troubleshoot, and manage the network and allow you to support sophisticated capabilities without increasing IT head count. The switch also supports Textview, a full command-line interface (CLI) option for partners that prefer it. Using Auto Smartports intelligence, the switch can detect a network device connected to any port and automatically configure the optimal security, Quality of Service (QoS), and availability on that port. Cisco Discovery Protocol (CDP) discovers Cisco devices and allows devices to share critical configuration information, simplifying network setup and integration.
Support for Simple Network Management Protocol (SNMP) allows you to set up and manage your switches and other Cisco devices remotely from a network management station, improving IT workflow and mass configurations. The Cisco FindIT utility, which works through a simple toolbar on the user’s Web browser, discovers Cisco devices in the network and displays basic information, such as serial numbers and IP addresses, to aid in configuration and deployment.
Support for Simple Network Management Protocol (SNMP) allows you to set up and manage your switches and other Cisco devices remotely from a network management station, improving IT workflow and mass configurations. The Cisco FindIT utility, which works through a simple toolbar on the user’s Web browser, discovers Cisco devices in the network and displays basic information, such as serial numbers and IP addresses, to aid in configuration and deployment.
High Reliability and Resiliency
The stackable switches eliminate downtime and improves network resiliency. For example, if a switch within aCisco SG500-52 Dubai stack fails, another switch immediately takes over, keeping your network up and running. You can also replace individual devices in the stack without taking your network offline or affecting employee productivity. The Cisco 500 also supports dual images, allowing you to perform software upgrades without having to take the network offline or worry about the network going down during the upgrade.
Simplified IT Operation
The Cisco SG500-52 Dubai helps optimize your IT operations with built-in features that simplify and streamline day-to-day network operation. True stacking allows you to troubleshoot, configure, and manage multiple physical switches as a single entity. Unlike other stacking switches that require uniform configurations, the Cisco 500 allows you to mix Fast Ethernet, Gigabit Ethernet, and 10 Gigabit Ethernet models in a single stack, providing total flexibility without sacrificing manageability. Cisco switch uses common chipsets/software across all switching portfolios, so all Cisco switch within a category support the same feature set, making it easy to manage and support all switches across the network.
True Stacking
Cisco SG500-52 Dubai provides true stacking capability, allowing you to configure, manage, and troubleshoot all switches in a stack as a single unit, with a single IP address. A true stack delivers a unified data and control plane, in addition to a management plane, providing flexibility, scalability, and ease of use since the stack of units operate as a single entity constituting all the ports of the stack members. This capability can radically reduce complexity in a growing network environment while improving the resiliency and availability of network applications. True stacking also provides other cost savings and administrative benefits through features such as cross-stack QoS, VLANs, and port mirroring, which clustered switches cannot support.
Security
Embedded Secure Sockets Layer (SSL) encryption protects management data traveling to and from the switch.
Extensive access control lists (ACLs) restrict sensitive portions of the network to keep out unauthorized users and guard against network attacks.
Guest VLANs let you provide Internet connectivity to nonemployee users while isolating critical business services from guest traffic.
Support for advanced network security applications such as IEEE 802.1x port security tightly limits access to specific segments of your network. Web based authentication provides a consistent interface to authenticate all types of host devices and operating systems, without the complexity of deploying IEEE 802.1x clients on each endpoint.
Advanced defense mechanisms, including dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, detect and block deliberate network attacks. Combinations of these protocols are also referred to as IPMB (IP-MAC- port binding).
IPv6 First Hop Security extends the advanced threat protection to IPv6. This comprehensive security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check, providing unparalleled protection against a vast range of address spoofing and man in the middle attack on IPv6 networks.
Time based ACLs and port operation restrict access to the network during pre-designated times, such as business hours.
Uniform MAC address-based security can be applied automatically to mobile users as they roam between wireless access points.
Secure Core Technology (SCT) helps ensure that the switch is able to process management traffic in the face of a denial of service attack.
Private VLAN Edge (PVE) provides Layer 2 isolation between devices on the same VLAN.
Storm control can be applied to broadcast, multicast, and unknown unicast traffic.
Protection of management sessions using Radius, TACACS+ and local database authentication as well as secure management sessions over SSL, SSH, and SNMPv3.
DoS (Denial-of-Service) attack prevention maximizes network uptime in the presence of an attack.
Extensive access control lists (ACLs) restrict sensitive portions of the network to keep out unauthorized users and guard against network attacks.
Guest VLANs let you provide Internet connectivity to nonemployee users while isolating critical business services from guest traffic.
Support for advanced network security applications such as IEEE 802.1x port security tightly limits access to specific segments of your network. Web based authentication provides a consistent interface to authenticate all types of host devices and operating systems, without the complexity of deploying IEEE 802.1x clients on each endpoint.
Advanced defense mechanisms, including dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, detect and block deliberate network attacks. Combinations of these protocols are also referred to as IPMB (IP-MAC- port binding).
IPv6 First Hop Security extends the advanced threat protection to IPv6. This comprehensive security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check, providing unparalleled protection against a vast range of address spoofing and man in the middle attack on IPv6 networks.
Time based ACLs and port operation restrict access to the network during pre-designated times, such as business hours.
Uniform MAC address-based security can be applied automatically to mobile users as they roam between wireless access points.
Secure Core Technology (SCT) helps ensure that the switch is able to process management traffic in the face of a denial of service attack.
Private VLAN Edge (PVE) provides Layer 2 isolation between devices on the same VLAN.
Storm control can be applied to broadcast, multicast, and unknown unicast traffic.
Protection of management sessions using Radius, TACACS+ and local database authentication as well as secure management sessions over SSL, SSH, and SNMPv3.
DoS (Denial-of-Service) attack prevention maximizes network uptime in the presence of an attack.
Technical Specs
| Manufacturer | Cisco |
|---|---|
| MFG Part Number | SG500-52-K9-NA |
| Cisco Excess Part Number | SG500-52-K9-NA-WS |
| Spare Part Number | SG500-52-K9-NA= |
| UPC Code | 882658863578 |
| Product Condition | Cisco Excess |
| Warranty | This product comes with our Exclusive Lifetime Vista Warranty. |
| Gigabit Ethernet Ports | 52 |
| Cisco StackWise Capable | Yes |
| Cisco SMARTnet Eligible | Yes |
