Description

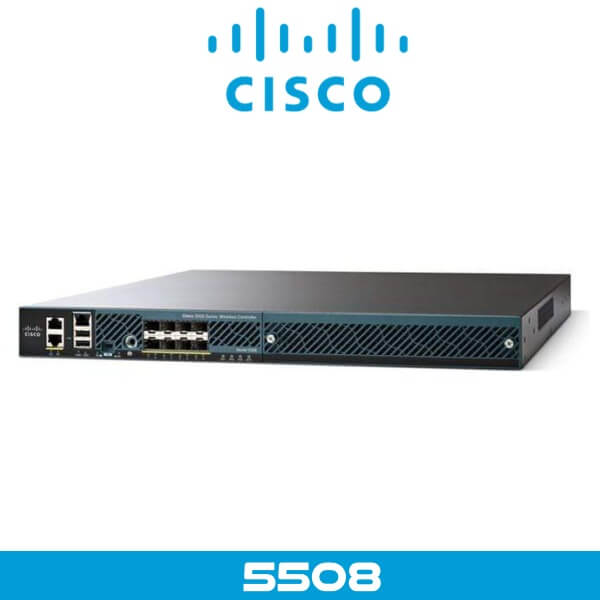

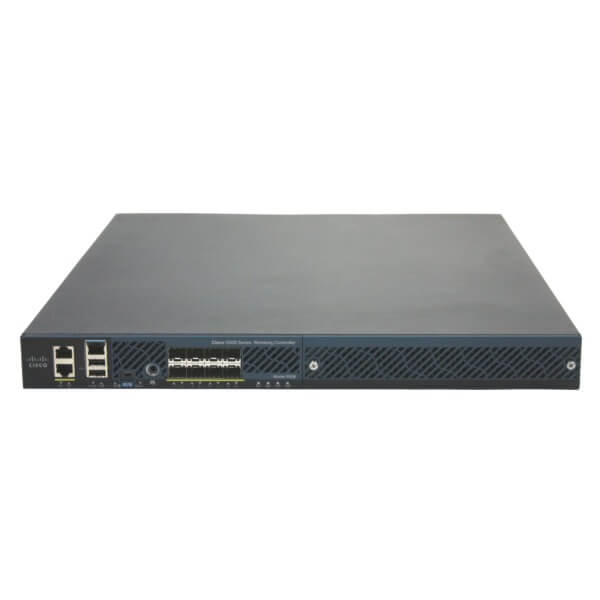

Cisco5508 Wireless Controller Dubai
The Cisco5508 Wireless Controller Dubai has been optimized for high-performance wireless networking, thus offering improved mobility and prepares the business for the next wave of mobile devices and applications. It supports a higher density of clients and delivers more efficient roaming, with at least nine times the throughput of existing 802.11a/g networks.
The Cisco5508 Wireless Controller Dubai is a highly scalable and flexible platform that enables systemwide services for mission-critical wireless networking in medium-sized to large enterprises and campus environments. Designed for 802.11ac and 802.11n performance and maximum scalability, the 5500 Series offers enhanced uptime with: RF visibility and protection, the ability to simultaneously manage up to 500 access points, Superior performance for reliable streaming video and toll- quality voice, and Sub-second stateful failover of all access points and clients from the primary to standby controller.
The Cisco5508 Wireless Controller Dubai automates wireless configuration and management functions and allows network managers to have the visibility and control needed to cost-effectively manage, secure, and optimize the performance of their wireless networks. With integrated Cisco CleanAirtechnology, the 5500 Series protects 802.11n performance by providing cross-network access to real-time and historic RF interference information for quick troubleshooting and resolution.
Technical Details
| General | |
| Device Type | Network management device |
| Height (Rack Units) | 1U |
| Width | 17.3 in |
| Depth | 21.2 in |
| Height | 1.8 in |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces |
|
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 115 Watt |
| Networking | |
| Form Factor | External |
| Ports Qty | 8 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Switching Protocol | Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP, Bonjour |
| Routing Protocol | CIDR |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Features | Syslog support, SNTP support, Mesh networking, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), CleanAir technology, NetFlow, CAPWAP support |
| Encryption Algorithm | DES, Triple DES, RSA, RC4, MD5, 128-bit WEP, 40-bit WEP, IKE, SSL, TLS, SHA-1, TLS 1.0, 104-bit WEP, TKIP, WPA, WPA2, PKI, AES-CCMP, AES-CCM, AES-CBC |
| Authentication Method | RADIUS, X.509 certificates, TACACS, Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – advance parts replacement – 90 days – response time: 10 days |
| Service & Support Details | Limited warranty – advance parts replacement – 90 days – response time: 10 days |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 95% (non-condensing) |
| Miscallaneous | |
| Compliant Standards | VCCI, EN55022, ICES-003, EN55024, FCC Part 15.107, FCC Part 15.109, EMI, EN 60950:2000, UL 60950-1:2003 |
