Description

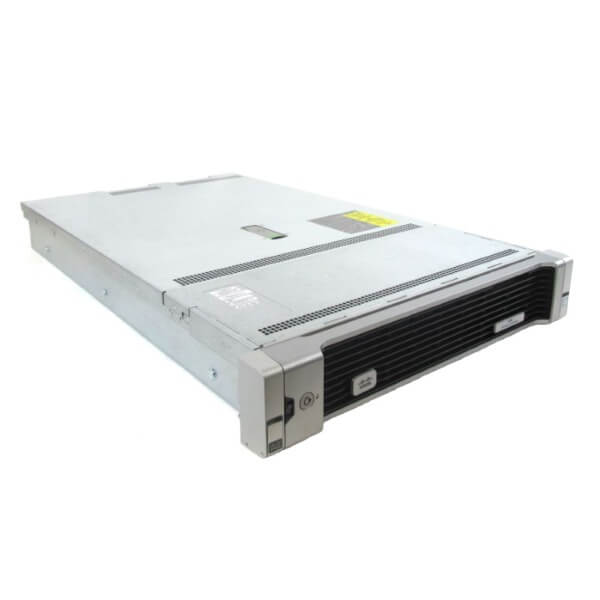

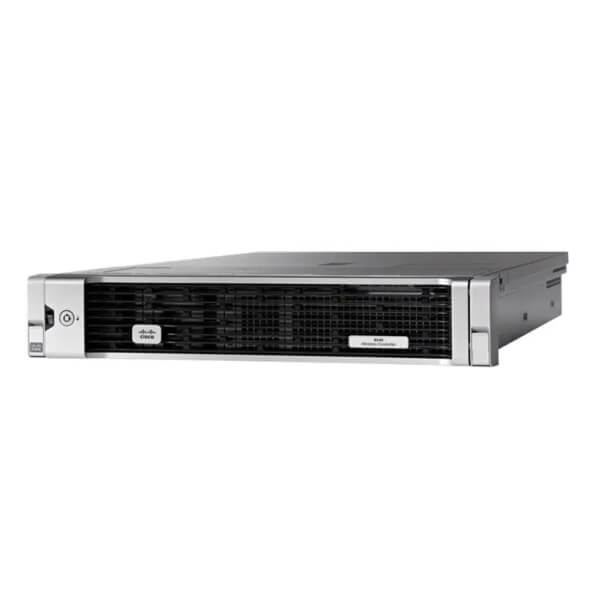

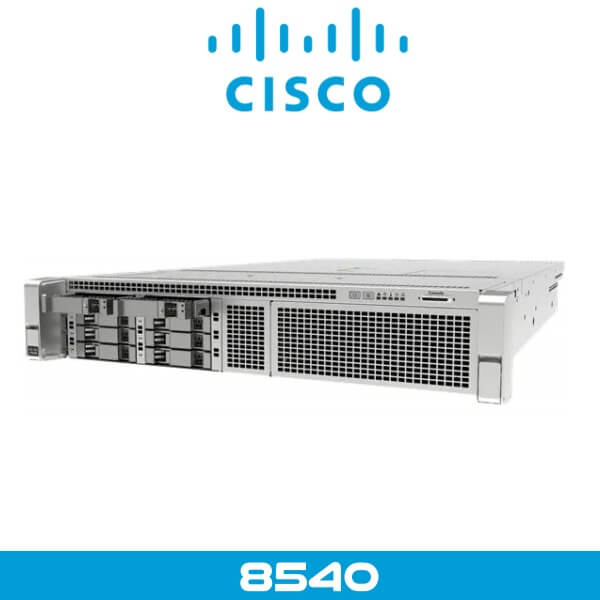

Cisco8540 Wireless Controller Dubai
The Cisco8540 Wireless Controller Dubai provides centralized control, management, and troubleshooting for high-scale deployments in service provider and large campus deployments. It offers flexibility to support multiple deployment modes in the same controller: for example, centralized mode for campus, Cisco FlexConnect mode for lean branches managed over the WAN, and mesh (bridge) mode for deployments where full Ethernet cabling is unavailable. As a component of the Cisco Unified Wireless Network, this controller provides real-time communications between Cisco Aironet access points, the Cisco Prime Infrastructure, and the Cisco Mobility Services Engine, and is interoperable with other Cisco controllers.
Optimized for 802.11ac Wave2 performance, the Cisco8540 Wireless Controller Dubai is a highly scalable, service-rich, resilient, and flexible platform that enables next-generation wireless networks for medium-sized to large enterprise and campus deployments.
Features:
- Intent-driven programmability and streaming telemetry.
- Subsecond access point and client failover for uninterrupted application availability.
- Extraordinary visibility into application traffic, using Cisco Application Visibility and Control (AVC), the technology that includes the Network-Based Application Recognition 2 (NBAR2) engine, Cisco’s Deep Packet Inspection (DPI) capability. This allows to mark, prioritize, and block to conserve network bandwidth and enhance security. Customers can optionally export the flows to Cisco Prime Infrastructure or a third-party NetFlow collector.
- Cisco8540 Wireless Controller Dubai is embedded with wireless Bring-Your-Own-Device (BYOD) policy classification engine that allows classification of client devices and application of user group based policies.
- Deployment of guest access and Bonjour and Chromecast services in centralized deployments.
- Software-defined segmentation with Cisco TrustSec® technology, reducing Access Control List (ACL) maintenance, complexity and overhead.
- Cisco8540 Wireless Controller Dubai is integrated with Cisco CleanAir® technology, providing the industry’s only self-healing and self-optimizing wireless network.
- Wi-Fi Alliance Passpoint (Hotspot 2.0) for mobile data offload.
- Network-based mobility management with Proxy Mobile IPv6 Mobility Access Gateway (MAG) and eGRE support for integration with cellular data networks.
- Simplified GUI wizard for quick setup and intuitive dashboards for monitoring and troubleshooting.
- Cisco DNA and SD-Access Wireless, as well as Cisco DNA Assurance.
Technical Details
| Product Code | AIR-CT8540-K9 |
| Description | Cisco 8540 Wireless Controller with rack mounting kit |
| Chassis Height | Two rack-unit (2RU) |
| Throughput | 40 Gbps |
| Max AP Support | 6000 |
| Max Client Support | 64000 |
| Max VLANs | 4096 |
| Data Ports | 4 x 10 Gigabit Ethernet interfaces or 4 x 1 Gigabit Ethernet interfaces |
| Storage | Dual SSD with Hardware RAID |
| Power Options | 1200 W AC, 930 W DC
Redundant PSUs |
| Dimensions (W x L x H) | 18.96 x 30.18 x 3.43 in. (48.2 x 76.6 x 8.70 cm) |
| Net Weight | 44 lb (19.9 kg) |
