Description

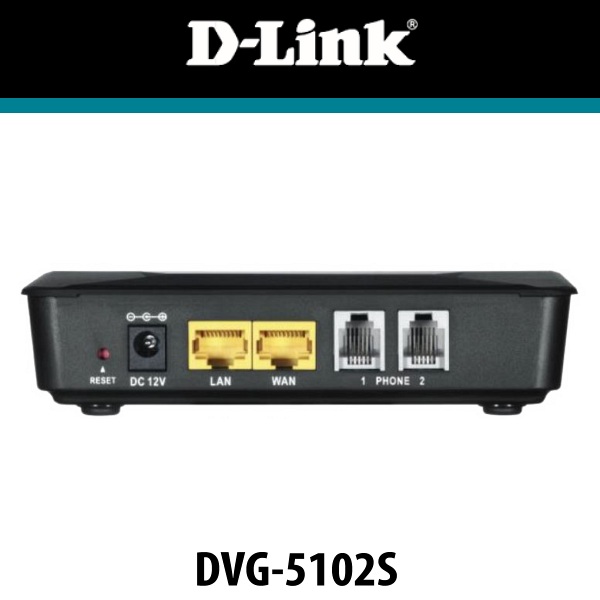

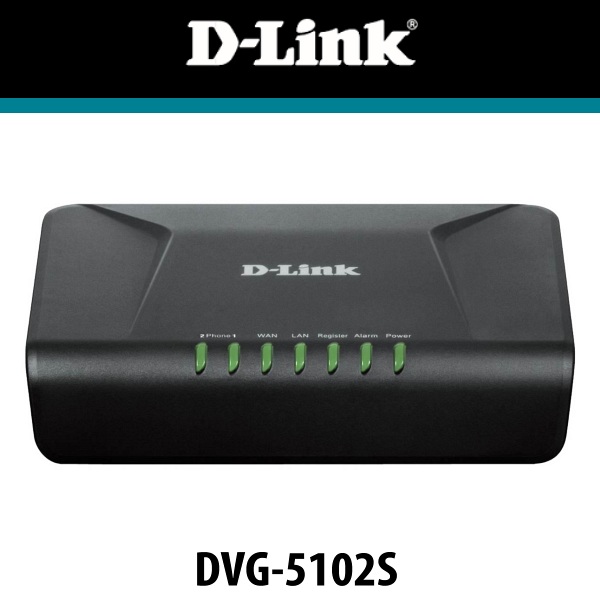

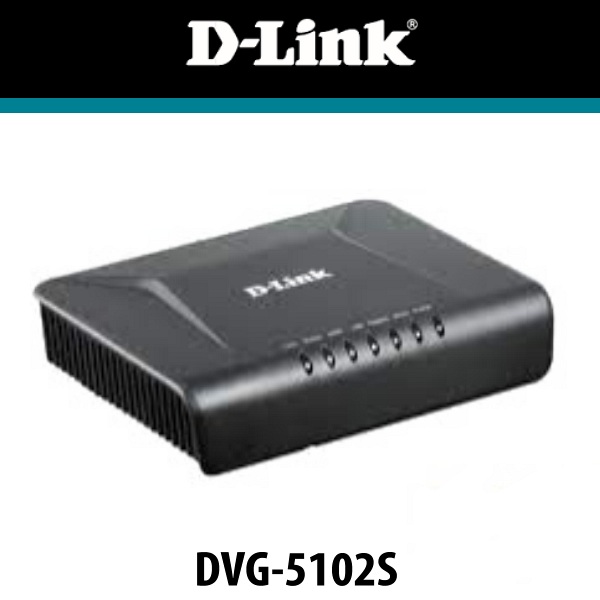

D-Link DVG-5102S 2-Port Analog Dubai

The D-Link DVG-5102S Dubai  Analog VoIP Telephone Adapter (ATA) is equipped with 2 ports and has been designed to enable you distribute network resources without compromising on Quality of Service (QoS). D-Link DVG-5102S Dubai is integrated with a Network bandwidth management which delivers smooth and clear voice communication over the Internet while increasing productivity and efficiency by tailoring your system to specific demands such as time-sensitive VoIP and multimedia applications.

D-Link DVG-5102S -Technical Specifications

DEVICE INTERFACES

2 RJ-11 FXS phone ports

2 RJ-45 10/100BASE-TX LAN

port with auto-MDI/MDIX

GENERAL FEATURES

3-way call conference (local mixer)

Call-parking

Call Back on Busy Digit Map

Direct IP-to-IP Call without SIP Proxy

Echo cancellation (Echo tail 64ms)

Hot Line and Warm line calling Includes a phone book with speed dial

Music on hold

MWI

Multi SIP Account (up to 3 proxy)

Need to support IP-IP call (P2P: RTP connection) without proxy (ex. phone book)

VMWI-Via FSK

CALL FEATURES

Anonymous Call Blocking

Call Block and Filter

Call Forwarding – Always

Call Forwarding – Busy

Call Forwarding – No Answer

Call Forwarding – Follow Me

Call Forwarding – Unconditional

Call Forwarding – Unavailable

Call History (Call status)

Call Hold

Caller ID (Proxy support)

Caller ID blocking

Call Pick Up

Call Return

Call Transfer (Proxy support)

Call Time

Call Park & retrieve

Call Waiting

Do Not Disturb

TELEPHONY FEATURES

Codec: G711μ/A-law,

G729A/B/AB, G.723(6.3/5.3

kbps), G.726(40)

Echo cancellation

Voice Activity Detection (VAD)

for G.711/723/729

Comfort Noise Generation

(CNG) for G.711/723/729

Out of Band DTMF event

Gain Control (incoming/ outgoing).
