D-Link DVG-6008G Dubai~D-Link DVG-6008G Dubai

Description

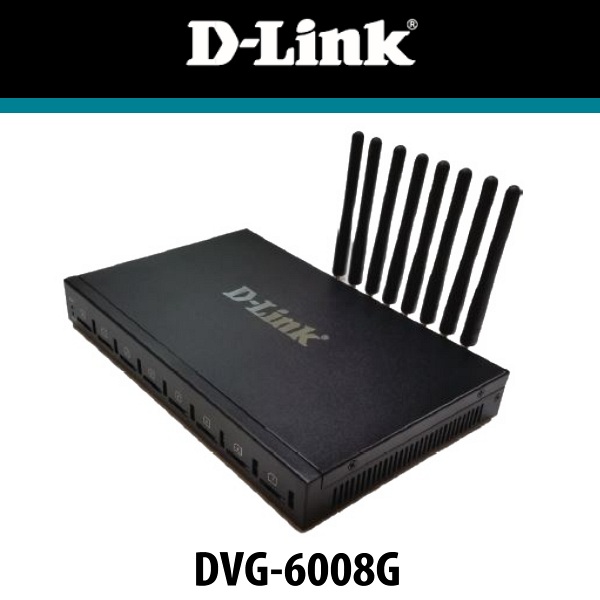

D-Link DVG-6008G GSM Gateway Dubai

D-Link DVG-6008G Dubai enables you to make up to 8 concurrent calls. It features a reliable remote sim card management. The DVG-6008G is SIPV2.0 based, therefore working perfectly with IP PBX platforms such as Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, and 3CX.

D-Link DVG-6008G Dubai uses G.711A/U law, G.723.1, G.729A/B together with G.168 Echo Cancelation technique to deliver crystal clear audio. Furthermore, the powerful D-Link DVG-6008G GSM Gateway Dubai is firmware upgradeable, allowing you to update to newer versions of the existing operating system so as to fix any present bugs as well as prevent your system from any vulnerabilities that may lead to loss of important data and files.

Features

Remote Sim Card Management
- The D-Link DVG-6008G Dubai eliminates the possibilities of losing your sim cards which can occur when removing them in order to switch them. SIM cards can be accessed remotely over the Internet and can even be switched between mobile devices without the need to dispatch another SIM card.
Up To 8 Concurrent Calls
- The D-Link DVG-6008G Dubai is equipped with 8 sim card slots(GSM/CDMA channels) to allow the user to enjoy making a maximum of up to 8 concurrent calls. Concurrent calls indicate the number of simultaneous calls that the Gateway can handle at once. This helps you in saving time thus boosting productivity in your office.
Dual Language User Interface
- The D-Link DVG-6008G GSM Gateway Dubai supports the use of both Chinese and English languages, thus giving a user options from which to choose a preferred language.
Modular & Scalable Solution
- The high performing Gateway features SIP/IAX trunks and supports a modular analog interface to enable you to add to your already existing analog telephony infrastructure. You therefore do not require any technical expertise in order to set up the Premium D-Link DVG-6008G GSM Gateway Dubai which offers an easy user experience, courtesy of its embedded web – based configuration.
Cost Effective
- The D-Link DVG-6008G Dubai enables you to enjoy seamless communications at an extremely affordable price. The incorporated Internet Phone Service which integrates well with known ITSPs offers an easy connection for faster calls and browsing in your workstation.
Simple Integration
- The D-Link DVG-6008G GSM Gateway Dubai incorporates a simple web based configuration, Telnet configuration and a firmware upgrade by TFTP to accord the user a very easy installation and operation experience. It is easy to deploy, resulting in a neater and cleaner workstation.
Crystal Clear Audio
- THE D-LINK DVG-6008G GSM Gateway Dubai integrates a number of audio codecs including G.711A/U law, G.723.1, G.729A/B with other modern techniques such as the G.168 Echo Cancelation , Silence Suppression & Detection, Comfort Noise Generation (CNG), Voice Activity Detection (VAD) and Adaptive (Dynamic) Jitter Buffer so as to deliver high quality sounds with no distractions. This enables you to hear clearly and be heard during calls without straining.
Compatibility
- The D-Link DVG-6008G Dubai is SIP-based and has therefore been configured to allow for maximum compatibility with various IP PBX and softswitch brands such as Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, 3CX.

D-Link DVG-6008G GSM Gateway Specifications

MOBILE SPECIFICATIONS
- Frequency Range: GSM 850/900/1800/1900MHz
- CDMA: 800Mhz
- WCDMA:2100MHz(Optional)
- SMS/SMSC/USSD
- SMS Coding/Decoding: ASCII/UCS2
- Open API Protocol
- PIN Code Management
- Call Duration Limitation for SIM
- Card/Single Call
- Polarity Reversal （GSM)
- Answer Delay (CDMA)
- Carrier selection
- Caller ID Restriction for Outgoing
- Call
- BCCH Management
- Call Waiting
- Call Forwarding
SIP CHARACTERS
- SIP V2.0 RFC3261
- SDP RFC2327
- Session Timer RFC4028
- RTP/RTCP RFC3551
- SIP Registration
- SIP Trunk ( Peer Mode)
- SIP Trunk Group
- Ringback (Immediately, Alerting)
- Configurable SIP Release Code
- DNS SRV/A Query
- Outbound Proxy
- DTMF Mode: Signal/RFC2833
NETWORK FEATURES
- IP v4, UDP/TCP, PPPoE, DHCP, FTP/TFTP ARP, RARP, NTP
- VPN PPTP
- Encryption: RC4,MD5
- (Coming Soon)
- IP v6 (Coming Soon)
- HTTP, Telnet
VOICE PROCESSING
- 711A/U law, G.723.1, G.729A/B
- Silence Suppression & Detection
- Comfort Noise Generation (CNG)
- Voice Activity Detection (VAD)
- Echo Cancellation (G.168)
- Adaptive (Dynamic) Jitter Buffer
- Call Progress Tone Generation
- Programmable Gain Control
MAINTAIN & UPGRADE
- Web Based Configuration
- Telnet Configuration
- Configure Backup/Restore
- Support English and Chinese language
- Firmware upgrade by HTTP/TFTP
- Web & Telnet Login Password Modify
- Factory Reset
- CDR (10000 Lines CDRs Storage Locally)
- Output CDR via Syslog
- Syslog
- Ping and Tracert Test
- Traffic statistics: TCP,UDP,RTP
- VoIP Call Statistics
- PSTN Call statistics: ASR,ACD,PDD
- Voice Dialogist with Loopback
- IVR Customization
- System Logs
PHYSICAL PROPERTIES
- Power Supply :
  - Input:100-240V,50-60Hz
  - Output: DC12V 4.0A
- Power Consumption: DVG-6004G: 25w
- Temperature:
  - (Operation): 0 °C~ 45 °C (Storage)
  - :-20 °C~80 °C
  - Operation Humidity: 10%-90%
- Dimension(W/D/H): 250*156*32.5mm•
- Weight: 1.069kg
- Package Weight: 2.05kg
