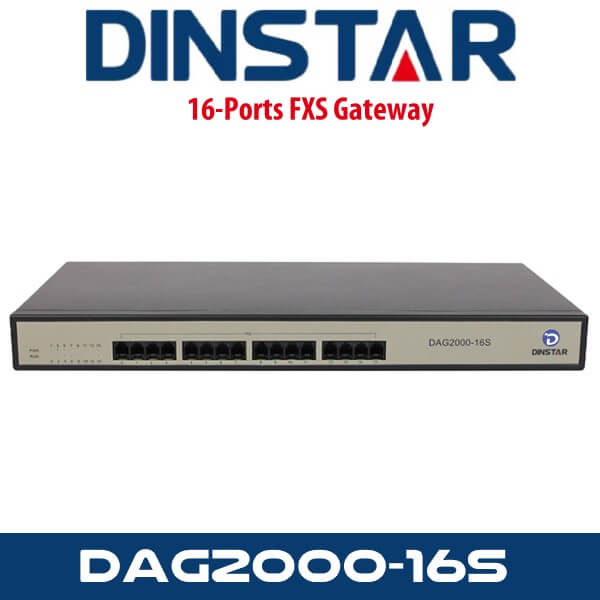

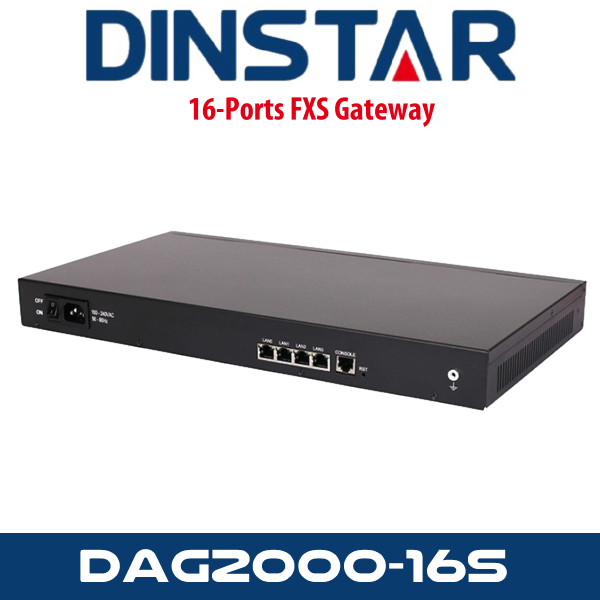

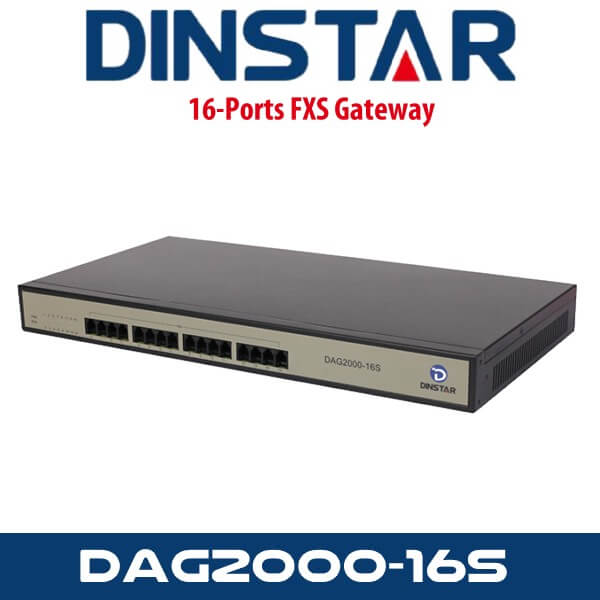

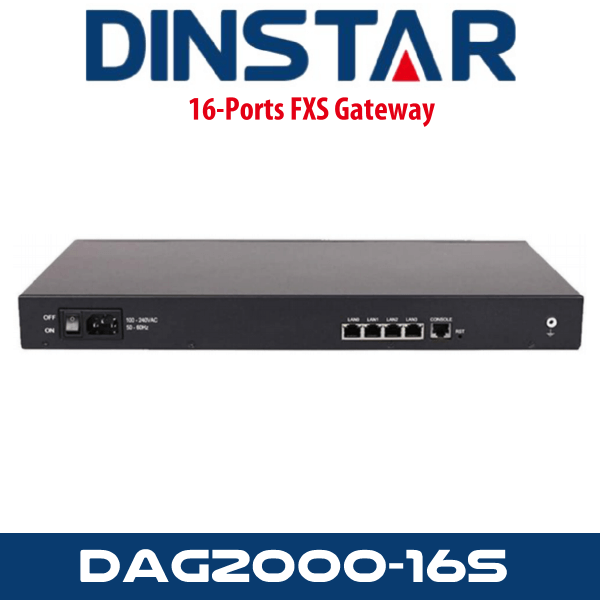

Dinstar DAG2000-16S Dubai
Dinstar DAG2000-16S Dubai is a 16-channel FXS VoIP ports based on SIP2.0 standard. It works perfectly with leading Softswitch and IPPBX leading providers worldwide as well as Flexible hardware configuration and is easy to expand. Providing one WAN port and three LAN ports, it allows up to four computers to share the ADSL line in an office or home.
For small business, the family office, remote office and branch business provide a low cost, simple operation VoIP solutions. Connected analog phone, fax, PBX with standard voice interface and provide quality voice service.
Features:
- Support SIP/MGCP
- Primary/Backup SIP Servers
- Flexible Routing and Manipulation
- Support Modem/POS
- Elastix/Broadsoft Certification
- Support IPv4 and IPv6
- Data/ Voice/ Management VLAN
- SNMP/TR069/Provision
- Cloud-based Management System and Bandwidth Optimization
Dinstar DAG2000-16S – Technical Specs
Physical Interfaces
- Phone Interface: 16FXS, RJ-11
- Ethernet Interface:
- 4* RJ-45 10/100Mbps, RJ-45
Voice & Fax
- G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR
- Comfort Noise Generation(CNG)
- Voice Activity Detection(VAD)
- Echo Cancellation(G.168)
- Adaptive (Dynamic) Jitter Buffer
- Hook Flash
- Programmable Gain Control
- T.38/Pass-through, up to 14.4kbps
- Modem/POS
- DTMF mode: Signal/RFC2833/INBAND
FXS Port
- Connector: RJ11
- Dial Mode: DTMF and Pulse
- Pulse: 10 and 20 PPS
- Caller ID: DTMF/FSK
- Max Cable Length: 5KM
- Reversed Polarity
Protocol
- SIP V2.0 (RFC 3261,3262,3264)
- IMS/3GPP
- SDP (RFC 2327)
- REFER (RFC 3515)
- RTP/RTCP (RFC 1889,1890)
- STUN (RFC 3489)
- ARP/RARP (RFC 826/903)
- SNTP (RFC 2030)
- DHCP/PPPoE
- TFTP/HTTP/HTTPS
- DNS/DNS SRV (RFC 1706/RFC 2782)
- VLAN 802.1P/802.1Q
Supplement Service
- Call Waiting
- Blind Transfer
- Attend Transfer
- Call Pickup
- Call Forward on Busy
- Call Forward on No Reply
- Unconditional Call Forward
- Hotline
- Call Hold
- DND
- 3-way conference
- Voicemail
Call & Route
- Port Group
- IP Trunk
- Primary and Secondary SIP Account
- 32 Inbound/Outbound Routing
- Number Manipulation
- Digitmap
Network Features
- Static IP, PPPoE, DHCP Client
- IPv4, IPv6
- Static/dynamic ARP
- Traffic Shaping
- Voice/Data/Management VLAN
- DIFFServ, ToS
Environment
- Power Supply: 100 – 240V, 50 – 60Hz
- Power Consumption: 35W
- Temperature:
- (Operation): -10 °C ~ 45 °C
- (Storage): -20 °C ~ 80 °C
- Humidity: 10% – 90% No condensation
Dimension & Weight
-
440(L )× 230(W) × 44(H)mm 2.7kg
