Description

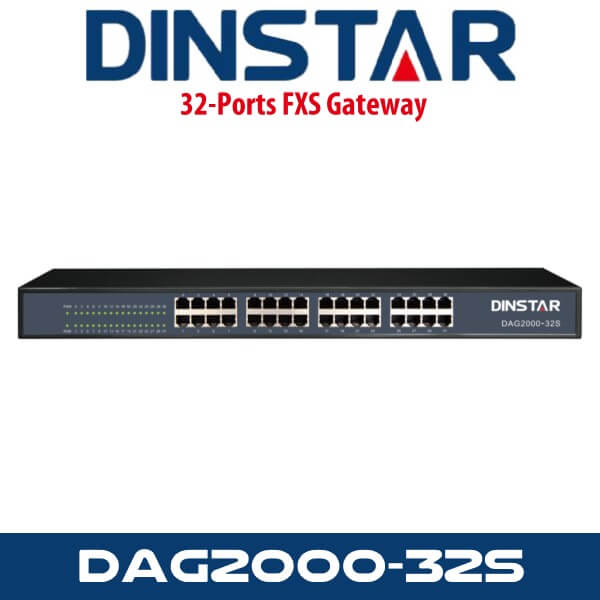

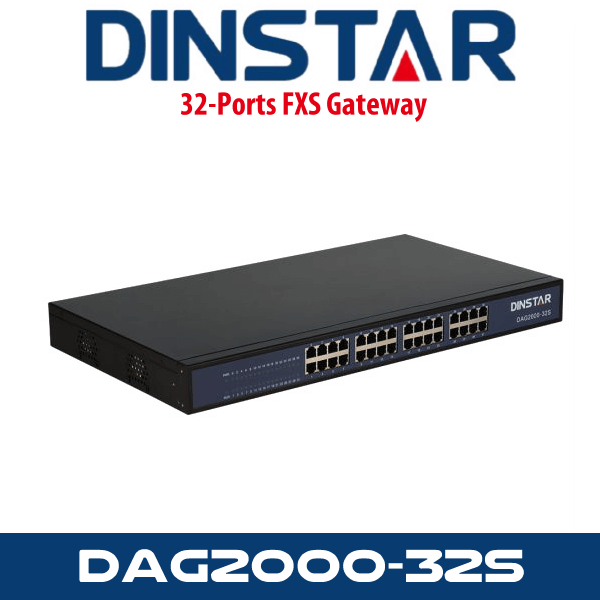

Dinstar DAG2000-32S Dubai
Dinstar DAG2000-32S Dubai FXS analog gateway is a versatile IP-based voice and fax gateway. For small business, the family office, remote office and branch business provide a low cost, simple operation VoIP solutions. The users easy to connected their analog phone, fax, PBX with standard voice interface and provide high-quality voice service. DAG2000-24/32FXS VoIP access gateway use standard SIP protocol and compatible with Leading IMS/NGN platform, IP PBX and SIP servers.
Features:
- Support SIP/MGCP
- Primary/Backup SIP Servers
- Flexible Routing and Manipulation
- Support Modem/POS
- Elastix/Broadsoft Certification
- Support SIP/MGCP
- Primary/Backup SIP Servers
- Flexible Routing and Manipulation
- Support Modem/POS
- Elastix/Broadsoft Certification
- Support IPv4 and IPv6
- Data/ Voice/ Management VLAN
- SNMP/TR069/Provision
- Cloud-based Management System and Bandwidth Optimization
Dinstar DAG2000-32S -Technical Specs

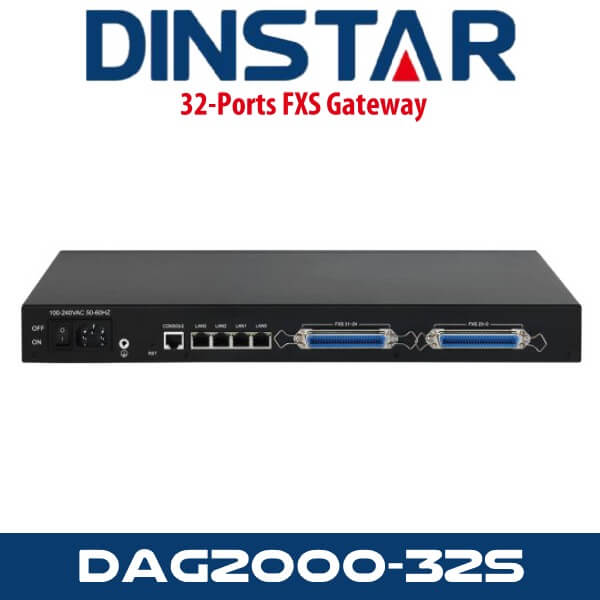

Physical Interfaces:
- Phone Interface: 24/32FXS,4/8*RJ-45
- Ethernet Interface:4* RJ-45 10/100Mbps, RJ-45
Voice Fax:
- G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR
- Comfort Noise Generation(CNG)
- Voice Activity Detection(VAD)
- Echo Cancellation(G.168)
- Adaptive (Dynamic) Jitter Buffer
- Hook Flash
- Programmable Gain Control
- T.38/Pass-through, up to 14.4kbps
- Modem/POS
- DTMF mode: Signal/RFC2833/INBAND
FXS Port:
- Connector: RJ45
- Dial Mode: DTMF and Pulse
- Pulse: 10 and 20 PPS
- Caller ID: DTMF/FSK
- Max Cable Length: 5KM
- Reversed Polarity
Protocol:
- SIP V2.0 (RFC 3261,3262,3264)
- IMS/3GPP
- SDP (RFC 2327)
- REFER (RFC 3515)
- RTP/RTCP (RFC 1889,1890)
- STUN (RFC 3489)
- ARP/RARP (RFC 826/903)
- SNTP (RFC 2030)
- DHCP/PPPoE
- TFTP/HTTP/HTTPS
- DNS/DNS SRV (RFC 1706/RFC 2782)
- VLAN 802.1P/802.1Q
Supplement Service:
- Call Waiting
- Blind Transfer
- Attend Transfer
- Call Pickup
- Call Forward on Busy
- Call Forward on No Reply
- Unconditional Call Forward
- Hotline
- Call Hold
- DND
- 3-way conference
- Voicemail
Call Route:
- Port Group
- IP Trunk
- Primary and Secondary SIP Account
- 32 Inbound/Outbound Routing
- Number Manipulation
- Digit map
Network Features:
- Static IP, PPPoE, DHCP Client
- IPv4, IPv6
- Static/dynamic ARP
- Traffic Shaping
- Voice/Data/Management VLAN
- DiffServ, ToS
Maintain Upgrade:
- SNMP / TR069
- Auto Provisioning
- Web/Telnet
- Configuration Backup/Restore
- Firmware Upgrade via WEB/TFTP
- Syslog and CDR
- Access Rule List
- Network Capture
- Outward Test(GR909)
- Automatic Time Synchronization
- IVR local Maintenance
- Cloud-based Management
Environment:
- Power Supply:100-240V,50-60Hz
- Power Consumption:
- 24FXS:40W; 32FXS: 45W
- Temperature(Operation): -10 ??? ~ 45 ???, (Storage): -20 ??? ~80 ???
- Humidity: 10%-90% No condensation
Dimension Weight:
- 24FXS:440(L) × 230(W) × 44(H)mm 3.0kg
- 32FXS:440(L) × 250(W) × 44(H)mm 3.2kg
Homologation:
- CE,FCC
- Elastix / Broadsoft
