Dinstar UC2000-VF-16T-B Dubai

Description

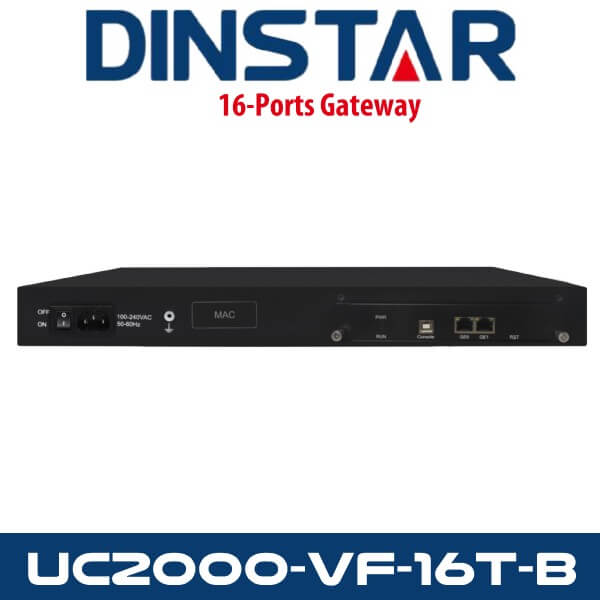

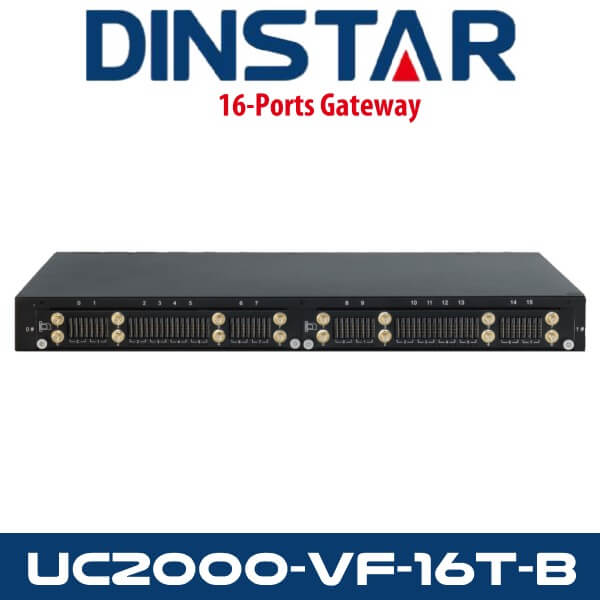

Dinstar UC2000-VF-16T-B Dubai

The Dinstar UC2000-VF-16T-B Dubai supports up to 16 concurrent calls, making it an ideal choice for users. It is a wireless gateway based on DINSTAR new hardware platform and powerful embedded CPU, leveraging state-of-art and latest VoIP / SIP technology, that enables the smooth transit between 4G/3G/2G mobile network and VoIP networks. Moreover, with open API, it allows users to build their own application software to send SMS/USSD messages or bulk SMS messages, or push their text messages from email, HTTP etc. It is suitable for enterprises, multi-site organizations, call centers and areas with limited landline like rural area to cut down telephony costs and enable easy & efficient communications. This is the one among the model of model of Dinstar 4G gateway Dubai

Key Features:

Up to 16 Channels GSM or LTE
Powerful Embedded CPU
Compatible with LTE-FDD/LTE-TDD/WCDMA/GSM Networks
Compatible with Mainstream VoIP Platform
Hot Swappable SIM Cards
Voice over LTE (VoLTE)
HTTP API for SMS Application Integration
SMS to Email & Email to SMS
Flexible Dial Rules & Manipulation Rules
Auto CLIP
Remote SIMs Management (optional)

Dinstar UC2000-VF-16T-B – Technical Specifications

Hardware Interfaces

Mobile: 16 Channels
SIM Card slots: 16
Antennas Connectors: SMA
Ethernet Interfaces: 2*10/100/1000 Base-T, RJ45
LED Indicators: Power, RUN, Channel indicator
Console: 1* RS232 (USB-B connector)
RST/PWR Button

VoIP & Media

Protocol: SIP v2.0, RFC3261
SIP UDP/TCP/TLS
RTP/SRTP
Codecs: G.711A/U, G.723.1, G.729A/B, G.722, AMR, OPUS(TBD)
Silence Suppression
Comfort Noise Generator(CNG)
Voice Activity Detection(VAD)
Echo Cancellation
Dynamic Jitter Buffer
DTMF: RFC2833, SIP Info
Call Progress Tone Generation
Programmable Gain Control
NAT: STUN, Dynamic NAT, Static NAT

Frequency Bands(2G/3G)

UC2000-VF-16G: GSM Gateway: 850/900/1800/1900MHz
UC2000-VF-16W: WCDMA Gateway with two options
A: WCDMA 850/1900MHz and GSM 850/900/1800/1900MHz;
B: WCDMA 900/2100MHz and GSM 900/1800MHz

LTE Frequency Bands

Type A:- FDD: B2/B4/B12- WCDMA: B2/B4/B5
Type E:- FDD:B1/B3/B5/B7/B8/B20- TDD: B38/B40/B41- WCDMA: B1/B5/B8
– GSM:900/1800MHz
Type V: FDD:B4/B13
Type J:- FDD:B1/B3/B8/B18/B19/B26- TDD:B41- WCDMA:B1/B6/B8/B19
Type AU:- FDD:B1/B2/B3/B4/B5/B7/B8/B28- TDD:B40- WCDMA: B1/B2/B5/B8
– GSM: 850/900/1800/1900

Software Features
