Description

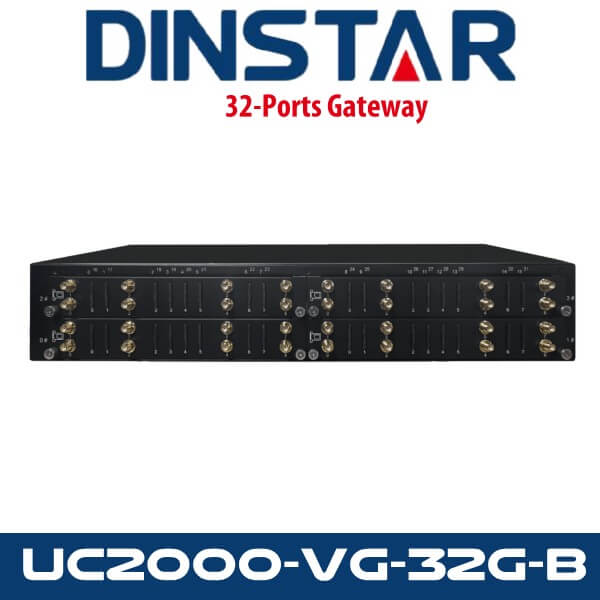

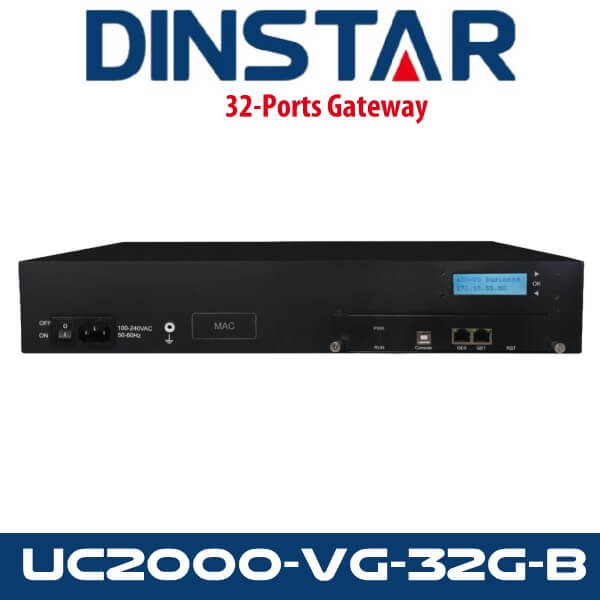

Dinstar UC2000-VG-32G-B Dubai
The Dinstar UC2000-VG-32G-B Dubai features an intuitive Web interface that offers an easy user experience. Dinstar SIMBank and SIMCloud allow for easy remote management of SIM cards. The GSM Gateway works as a standalone device, and is used by call terminators, multi-site organizations, enterprises, and areas with limited landline like rural areas to establish connections between mobile and VoIP networks and for transmission of both voice and SMS. It is integrated with GSM/WCDMA/LTE connectivity and SIP protocol compatible with mainstream VoIP platforms. The Dinstar UC2000-VG-32G-B Dubai enables its users to cut down telephony costs and enable easy & efficient communications.This is the one among the model of model of Dinstar GSM gateway Dubai.
Key Features:
- 32 GSM/CDMA/WCDMA Channels
- Support to different mobile networks:
- GSM: 850/900/1800/1900MHz;
- CDMA: 800MHz; WCDMA: 850/900/1900/2100MHz
- HTTP API for SMS Application Integration
- SMS to Email and Email to SMS
- Flexible Dial Rules and Manipulation Rules
Dinstar UC2000-VG-32G – Technical Specifications
Voice Processing
- Protocol: SIP v2.0, RFC3261
- Codecs:G.711A/U law, G.723.1, G.729A/B
- Silence Suppression
- Comfort Noise Generator(CNG)
- Voice Activity Detection(VAD)
- Echo Cancellation: G.168 with up to 128ms
- Dynamic Jitter Buffer
- DTMF: RFC2833, SIP Info
- Call Progress Tone Generation
- Programmable Gain Control
- NAT: STUN, Dynamic NAT, Static NAT
Mobile
- SIM Interface: 1.8v, 3.0v SIM Interface
- Frequency Range:
GSM: 850/900/1800/1900MHz;
CDMA: 800MHz - WCDMA:850/900/1900/2100MHz
- USSD Encoding: Unicode/ASCII
- HTTP API for SMS
- Polarity Reversal
- PIN Modify
- CID/CLIR
- SMS Send and Receive
- SMS to Email
- Call Waiting/Call Back
- Call Forward
- GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR
Software Features
- Calling Type:
Mobile to VoIP, VoIP to Mobile - SIP Trunk and Trunk Group
- Caller/Called Number Manipulation Rules
- SIP Codes Mapping
- White/Black List
- PSTN Hotline
- VoIP Hotline
- Abnormal Call Monitor
- Call Minutes Limitation for Ports/Single Call
- Balance Check
- Low Balance Alarm
- Auto Update SIM Number
- Random Call Interval
- Auto CLIP
- Signaling & RTP Encryption
- SMPP for SMS
Network
- Static IP, DHCP Client, PPPoE
- Network Protocols:
- TCP/UDP,TFTP, FTP, RTP/ RTCP, SSH,ARP,RARP,ICMP Ping, NTP, HTTP, DNS
- Static/Dynamic ARP Request
Maintenance
- Web/Telnet Configuration
- Configure Backup/Restore
- Firmware Upgrade by HTTP/TFTP
- Factory Reset
- CDR (10000 Lines CDRs Storage Locally)
- Syslog/Filelog
- Ping and Tracert
- Traffic statistics: TCP,UDP,RTP
- VoIP Call Statistics
- PSTN Call statistics: ASR,ACD,PDD
- Voice Diagnose with Loopback
- GSM Network Test
- IVR Customization
- Auto Provisioning
- SIP/RTP/PCM Capture
Physical Interface
- Mobile: 32 Channels
- Antennas Connectors: SMA
- Ethernet Interfaces:2*10/100 Base-T, RJ45
- LED Indicators: Power, RUN, Signal Strength Indicators
- Console:1* RS232 115200bps
Environmental
- Power Supply
Input:100-240V,50-60Hz - Power Consumption: 68w
- Temperature(Operation): 0 ℃ ~ 45 ℃ (Storage): -20 ℃ ~80 ℃
- Operation Humidity: 10%-90% No Condensation
- Dimension(W/D/H): 440×270×75mm
- Weight: 4.7kg
- Package Weight: 8.2kg
