Description

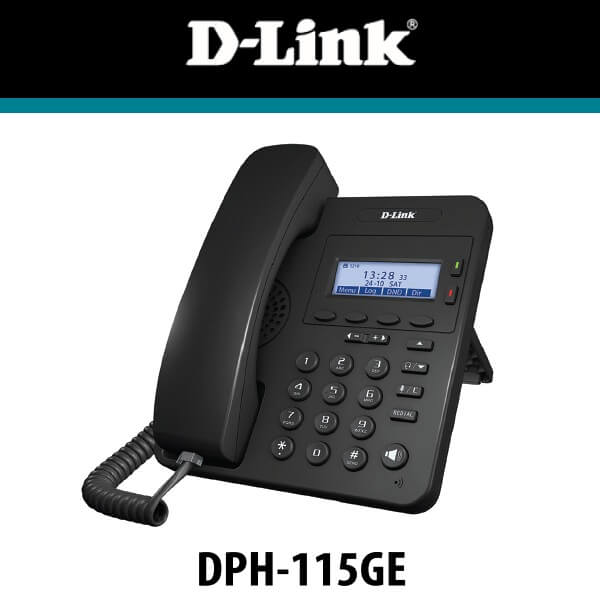

Dlink DPH115GE Dubai
The Dlink DPH115GE Dubai is a modern IP Phone that has been designed to meet the communication requirements and needs of users in offices ranging from SOHOs, VSEs, to SMBs. It is an essential tool in achieving smooth VoIP communication. Dlink DPH115GE Dubai comes with an elegant, sophisticated design and is fitted with numerous advanced features that meet different environment requirements.
Dlink DPH115GE Dubai can be installed on LAN /DSL/Cable network environment and registered to SIP registrar Server(s), soft switch (es), IP-PBX(s), or IMS-based system and let SIP-enabled terminals to communicate with. Beyond this, user’s PC can be connected to this phone instead of LAN directly. The Dlink DPH115GE Dubai comes with a plastic Housing and some accessories, including handset, handset cord, keypad, keys and wall-mounting kit. LCD display on the panel provides direct visual interface with user. User can use keypad/LCD or Web browser to configure the Dlink DPH115GE Dubai.
Features:
- Easy Configuration : The Dlink DPH115GE features web-based configuration via phone and computer, bringing additional convenience and increasing productivity
- Superior Sound : The Dlink DPH115GE speakerphone IP phone with Echo Cancellation, CNG, VAD and Dynamic Jitter Buffer features for excellent sound quality
- Complete Phone Features : Dlink DPH115GE is equipped with extensive phone functions including Call Transfer, Forward and Hold, 3-Way Conference, Speed Dial/Phone Book, Caller ID, etc.
Technical Specs :
PHYSICAL FEATURES
- 128*64 graphic LCD with back light – 25 keys, including 5 programmable keys
- 2 LEDs : 2* account lights, including MWI(L1)
- 1* RJ9 handset port
- 2xRJ45 10/100/1000M Ethernet ports
- Power adapter : AC 100~240V input and DC 5V/1A output
- POE, IEEE 802.3af,class 0 – Power consumption : 1.5W
- Net weight : 0.62kg
- Dimension : 180x157x33mm
- Operating humidity : 10~95%
- Storage temperature : Up to 60°C
IP PBX SYSTEM INTEGRATION
- Busy lamp field (BLF), BLF list
- Bridged line appearance (BLA)
- DND & Forward synchronization
- Intercom, Paging, Music on hold
- Call pickup, Dial Plan, Call recording Anonymous call,
- Anonymous call rejection – Network conference, Distinctive ring tone
MANAGEMENT
- Auto-provision via FTP/TFTP/HTTP/HTTPS
- Configuration : browser/ phone/auto-provision
- Trace package and system log export
CODES AND VOICE FEATURES
- Wideband Codec: G.722 – Narrowband codec : G.711µ/A, G.726, G.729AB,iLBC
- VAD, CNG, AEC, AGC, Full-duplex
SECURITY
- VLAN QoS (802.1pq), SRTP
- Transport Layer Security (TLS)
- Digest authentication using MD5/MD5-sess
- Secure configuration file via AES encryption
- Encryption for configuration file
- Phone lock for personal privacy protection
- Admin/User 2-level configuration mode, LLDP, CDP
- L2TP VPN tunneling protocol – added
NETWORK FEATURES
- SIP v1 (RFC2543), v2 (RFC3261)
- SIP connection : Proxy mode & Peering Points mode;
- SRTP voice encryption (RFC3711)
- Redundant server support
- NAT Traversal : STUN mode
- DTMF : In-Band, RFC2833, SIP Info, Auto
- HTTP Web Management
- IP Assignment : Static/DHCP/PPPoE
- Bridge/Router mode for PC port
- TFTP/DHCP/PPPoE client
- Telnet/HTTP/HTTPS server, DNS client, NAT/DHCP server
