Description

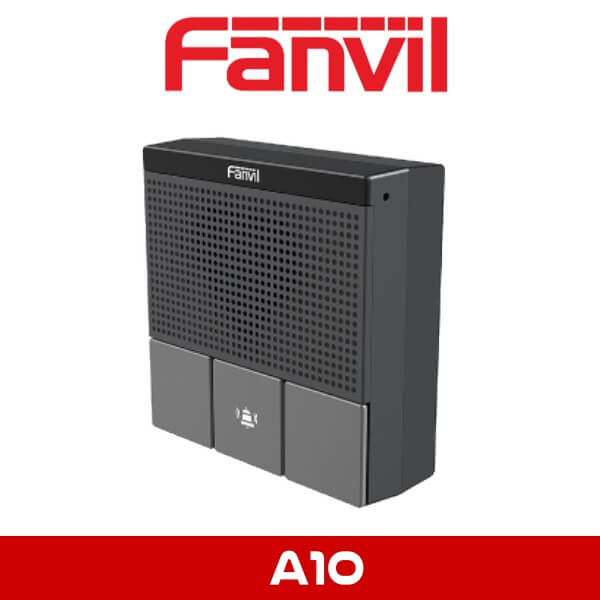

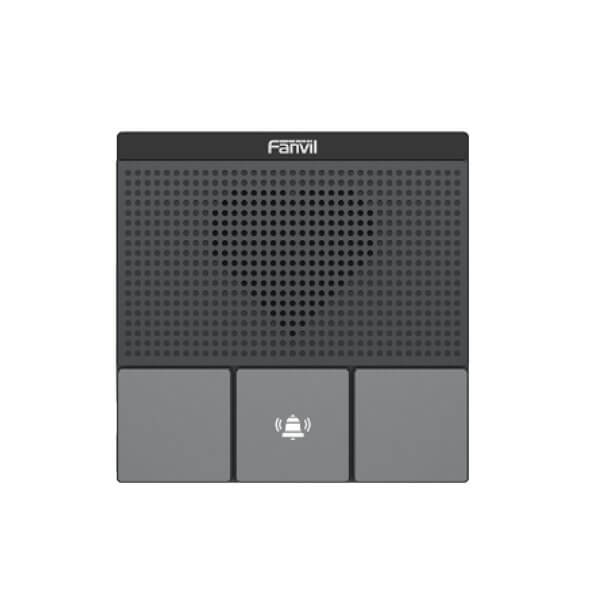

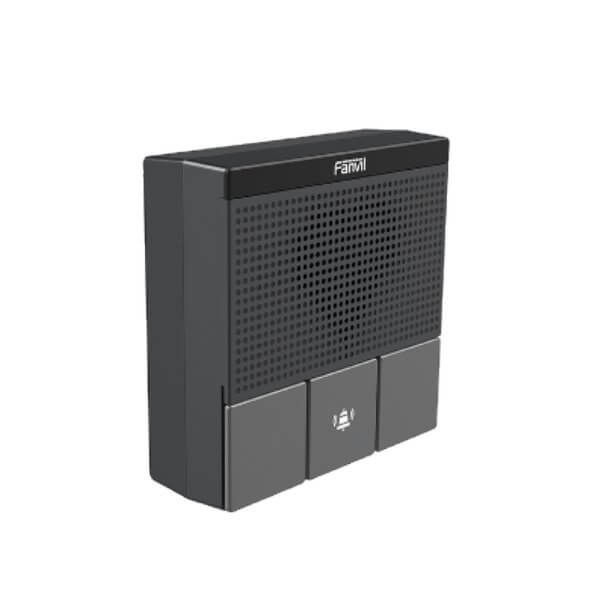

Fanvil A10 SIP Intercom Dubai

Introducing the Fanvil A10 Dubai SIP mini intercoms: a meticulously designed solution engineered specifically for indoor environments, adeptly addressing security, intercom, and broadcasting requirements with finesse. These cutting-edge intercoms not only exude a contemporary elegance but also incorporate a myriad of features meticulously crafted to augment user engagement and operational efficiency.With the ability to accommodate 2 SIP accounts and equipped with 3 detachable function buttons, complemented by PoE power supply, the Fanvil A10 series ensures a seamlessly integrated communication experience that caters to diverse needs.

Beyond their sleek aesthetics, the A10 series boasts an impressive array of advanced functionalities. From high-definition audio capabilities to an IP54 waterproof and dustproof rating, coupled with integrated 2.4G & 5G Wi-Fi connectivity in the A10W/A10W-E models, these intercoms guarantee unparalleled communication quality, even in the most demanding environments.What truly distinguishes the A10 series is its versatility in installation options, accommodating both wall-mounted configurations (A10/A10W) and standard 86 box embedded installations (A10-E/A10W-E). This flexibility ensures suitability across a spectrum of indoor applications, from residential complexes to office spaces and commercial establishments alike.

By seamlessly integrating these features, the Fanvil A10 Dubai SIP mini intercoms not only redefine the communication landscape but also elevate security and convenience within indoor settings. Whether deployed in residential complexes, office environments, or commercial establishments, the Fanvil A10 series emerges as the quintessential solution, perfectly tailored to the demands of modern communication ecosystems.

Highlights

• Features 2 SIP accounts and 3 detachable function buttons
• Built-in 2.4G & 5G Wi-Fi (A10W/A10W-E)
• IP54 waterproof and dustproof
• Support HD audio with codec G.722 and Opus
• Built-in 2W speaker and Acoustic Echo Canceller (AEC)
• Built-in 1 short circuit input/output interface
• Support PoE power supply
• Support standard 86 box embedded (A10-E/A10W-E) and wall mountable(A10/A10W) installation

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4G & 5G Wi-Fi(A10W/A10W-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Network Time Synchronization
• Built-in Wi-Fi (A10W/A10W-E)
  • 4G, 802.11 b/g/n
  • 5G, 11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : 711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : 722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• Wi-Fi : 4G&5G (A10W/A10W-E)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• 0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• A10 Series : 3 DSS button；
• Status indicator light :  Fast flashing red (registration failed、network anomaly)、Slow flashing green(call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 94W~1.98W (A10/A10-E)
  • 42W~2.35W (A10W/A10W-E)
• Power Consumption (PoE)：
  • 48W~2.37W (A10/A10-E)
  • 99W~3.05W (A10W/A10W-E)
• Housing material : ABS
• Installation : Indoor installation
  • Standard 86 Box Embedded(A10-E/A10W-E)
  • Wall Mountable(A10/A10W)
• Color : Gunmetal
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• Qty/CTN：20 PCS
• W/CTN : 3.41kg
• W/CTN : 3.6kg
• Equipment Dimension :
  • 56 x 87.56 x 30mm (Wall Mountable)
  • 56 x 87.56 x 21.5mm ( 86 Box Embedded)
• Packing Dimension : 95x106x40mm
• Outer CTN Dimension : 224x220x210mm(20 PCS)
