Description

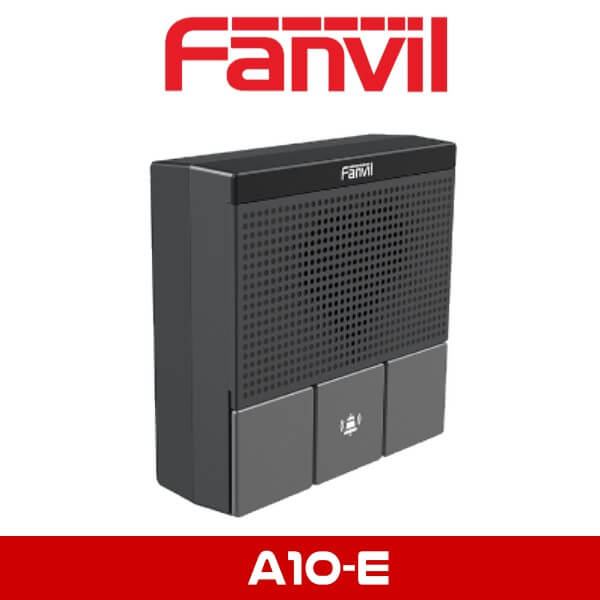

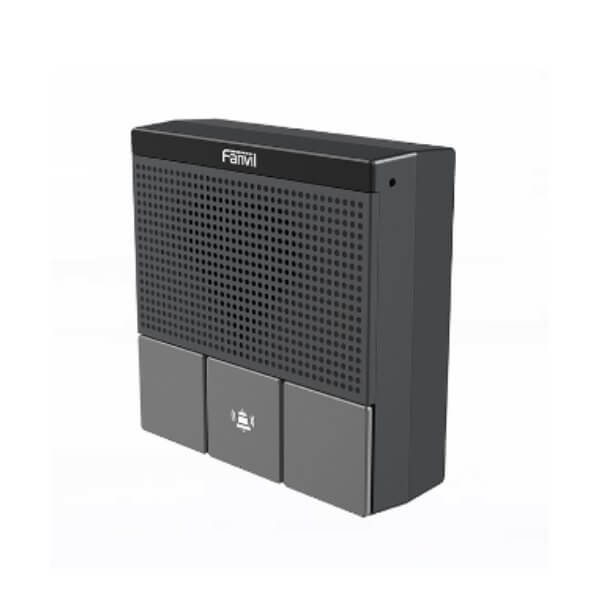

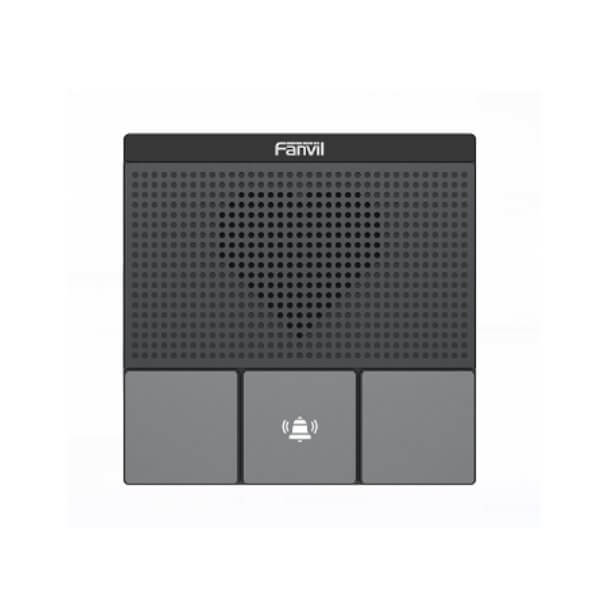

Fanvil A10-E SIP Intercom Dubai

The Fanvil A10-E Dubai SIP mini intercoms epitomize cutting-edge solutions tailored specifically for indoor environments, presenting a comprehensive array of features encompassing security, intercom, and broadcasting functionalities. Crafted with meticulous attention to detail, these intercoms exude sophistication with their sleek and compact design, seamlessly blending functionality with style. Equipped with 2 SIP accounts, they offer unparalleled flexibility and scalability, ensuring seamless communication setups.Highlighting their versatility are 3 detachable function buttons, empowering users to tailor their usage according to specific requirements. The integration of Power over Ethernet (PoE) power supply further enhances convenience and operational efficiency during installation and use.

Delving into the A10 series, users can anticipate a myriad of advanced functionalities designed to enhance the communication experience. These include high-definition (HD) audio for pristine sound reproduction, IP54 waterproof and dustproof ratings for heightened durability, and the incorporation of both 2.4G and 5G Wi-Fi capabilities in the A10W and A10W-E models, guaranteeing uninterrupted connectivity across various environments.Moreover, the intercoms cater to diverse installation preferences, offering both wall-mountable (A10/A10W) and standard 86 box embedded (A10-E/A10W-E) options. This adaptability extends their utility across a broad spectrum of indoor application scenarios, from residential environments to commercial establishments.

The Fanvil A10-E Dubai SIP mini intercoms exemplify innovation and functionality, delivering users a superior communication experience characterized by exceptional quality, convenience, and adaptability.

Highlights

• Features 2 SIP accounts and 3 detachable function buttons
• Built-in 2.4G & 5G Wi-Fi (A10W/A10W-E)
• IP54 waterproof and dustproof
• Support HD audio with codec G.722 and Opus
• Built-in 2W speaker and Acoustic Echo Canceller (AEC)
• Built-in 1 short circuit input/output interface
• Support PoE power supply
• Support standard 86 box embedded (A10-E/A10W-E) and wall mountable(A10/A10W) installation

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4G & 5G Wi-Fi(A10W/A10W-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Network Time Synchronization
• Built-in Wi-Fi (A10W/A10W-E)
  • 2.4G, 802.11 b/g/n
  • 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• Wi-Fi : 2.4G&5G (A10W/A10W-E)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• A10 Series : 3 DSS button；
• Status indicator light : Fast flashing red (registration failed、network anomaly)、Slow flashing green(call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 0.94W~1.98W (A10/A10-E)
  • 1.42W~2.35W (A10W/A10W-E)
• Power Consumption (PoE)：
• 1.48W~2.37W (A10/A10-E)
• 1.99W~3.05W (A10W/A10W-E)
• Housing material : ABS
• Installation : Indoor installation
  • Standard 86 Box Embedded(A10-E/A10W-E)
  • Wall Mountable(A10/A10W)
• Color : Gunmetal
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• Qty/CTN：20 PCS
• N.W/CTN : 3.41kg
• G.W/CTN : 3.6kg
• Equipment Dimension :
  • 87.56 x 87.56 x 30mm (Wall Mountable)
  • 87.56 x 87.56 x 21.5mm ( 86 Box Embedded)
• Packing Dimension : 95x106x40mm
• Outer CTN Dimension : 224x220x210mm(20 PCS)
