Description
Fanvil i504W Dubai

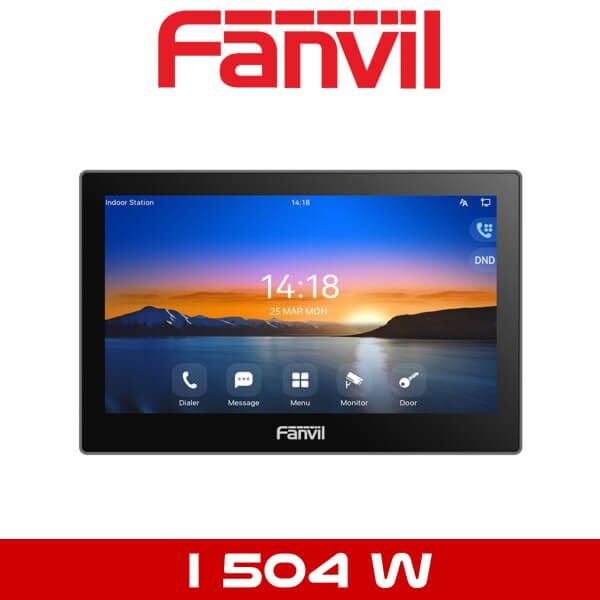

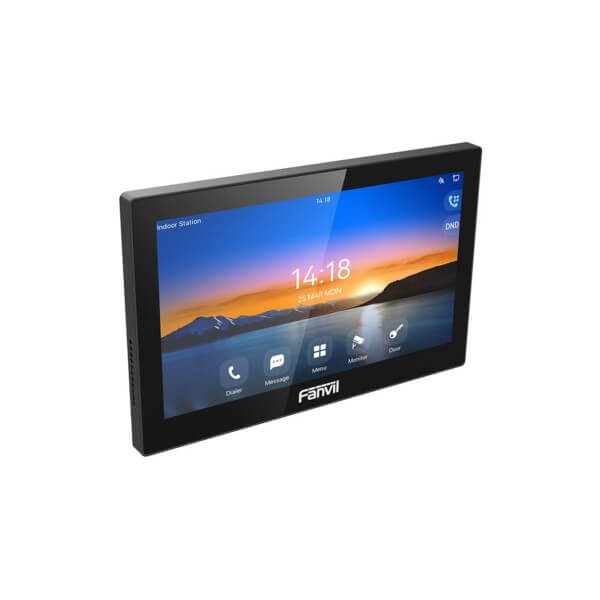

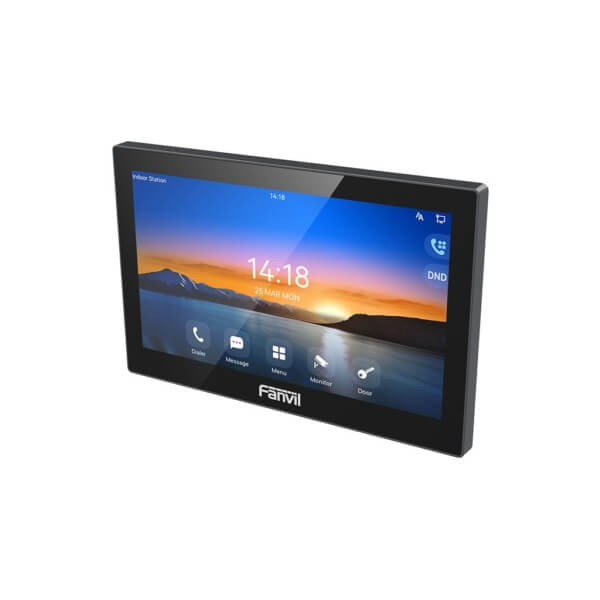

The Fanvil i504W Dubai is a state-of-the-art intercom system featuring a vibrant 7-inch color touch screen, designed to provide a seamless and intuitive communication experience. Equipped with eight alarm inputs and a robust industrial-grade power socket, this multifunctional device is perfectly suited for residential complexes, villas, office buildings, and other environments where reliable communication and secure visitor management are essential. With its user-friendly touch interface, the Fanvil i504W allows users to effortlessly answer calls from entry units, hold clear intercom conversations, and manage door access remotely, all from a centralized indoor station. This enables residents, homeowners, and office staff to communicate with visitors at entry points efficiently and securely, enhancing both safety and convenience. The remote door and gate unlocking feature simplifies visitor access while reducing the risk of unauthorized entry, creating a safer and more comfortable environment.
Built for reliable performance, the Fanvil i504W Dubai integrates seamlessly with various security and intercom systems, making it an excellent choice for high-security settings such as gated communities, upscale apartment complexes, and corporate facilities. Its configurable alarm inputs enable it to receive alerts from connected security devices, further solidifying its role as a central hub for communication and control. This functionality offers a comprehensive and easy-to-use solution for managing visitors and intercom operations, appealing to users who value both security and convenience.
Features:
- 7-inch color capacitive touch screen provides a more convenient user experience
- Check real-time video of third-party IP cameras and door phone to ensure security
- Rich interfaces facilitate the integration of various sensors, enabling comprehensive home security monitoring
- Powered by PoE or external source
- Built-in 2W speaker and AEC algorithm, it achieves high-quality two-way hands-free calling
Specification:
| System | Linux |
| Screen | 7-inch 1024×600 capacitive color touch screen |
| HD Audio | √ |
| Wideband Codecs | G.722, Opus |
| Speaker Power | 2W |
| Video Resolution | 1080P |
| Video Codec | H.264，H.265 (Optional) |
| ONVIF | √ |
| SIP Lines | 6 |
| Bluetooth | × |
| WiFi | Support 2.4G/5G WiFi(i504W) |
| Buttons | × |
| Alarm Input Interface | 8 |
| Short Circuit Output | 1 |
| Door Bell Interface | 1 |
| RS-485 Interface | 1 |
| TF Interface | × |
| USB Port | × |
| Network | 10/100 Mbps |
| PoE | √ |
| Installation Mode | Wall-mounted |
