Fanvil X303W Dubai



Fanvil X303W Dubai

The Fanvil X303W Dubai is a cost-effective Wi-Fi IP phone tailored for business applications, offering remarkable performance.

Description

Fanvil X303W IP Phone Dubai

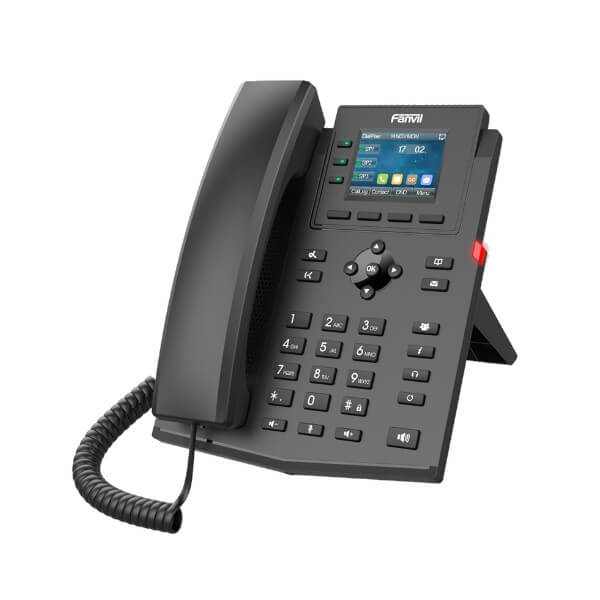

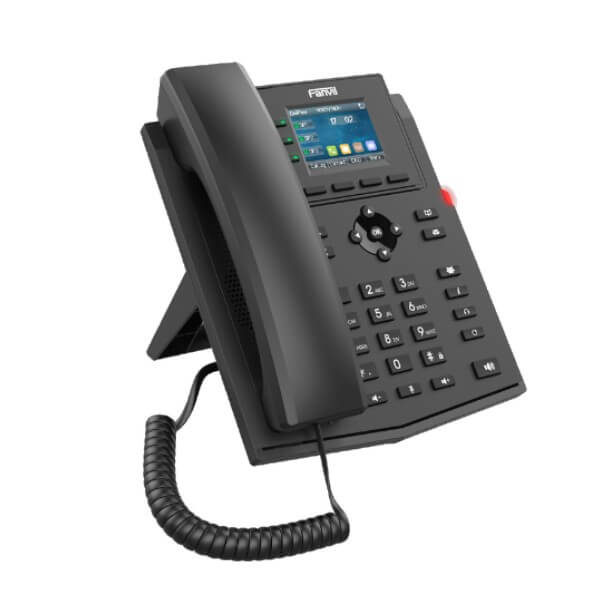

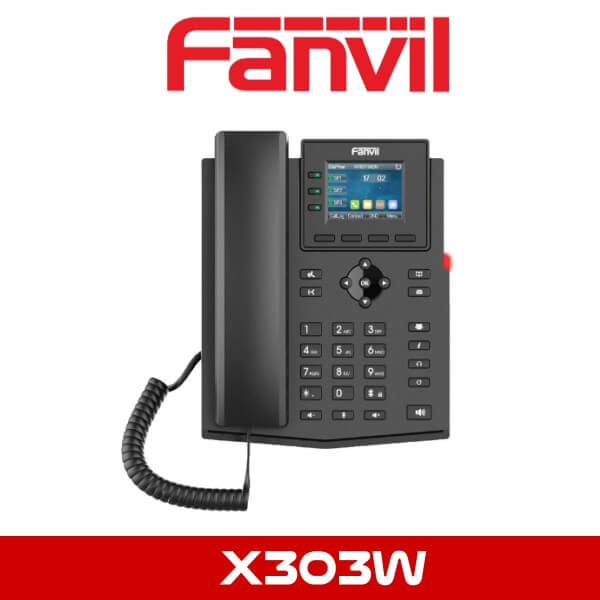

The Fanvil X303W Dubai is a cost-effective Wi-Fi IP phone tailored for business applications, offering remarkable performance. Boasting a 2.4-inch color screen with a resolution of 320×240 pixels, this phone ensures a user-friendly interface, accommodates up to 4 SIP lines, and enables 6-way audio conferences. Equipped with HD audio features and integrated 2.4GHz & 5GHz Wi-Fi, the Fanvil X303W Dubai ensures effective and high-quality communication solutions for businesses.

Features

Generic

  • 4 SIP Lines
  • HD Voice
  • PoE Enabled
  • Built-in 2.4GHz & 5GHz Wi-Fi
  • 2.4-inch color screen
  • Handset / Hands-free / Headset mode
  • Desktop Stand / Wall mountable (optional)
  • External Power Supply Phone Functions
  • Local Phonebook (1000 entries)
  • Remote Phonebook (XML/LDAP, 1000 entries)
  • Call logs (In/Out/Missed, 600 entries)
  • Blocked List/Allowed List
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Support Poly wireless headset (Through Poly APD-80 EHS Cable)
  • Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
  • Support Recording (Through Server)
  • Action URL / Active URI
  • uaCSTA

Call Functions

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forward (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (On server)
  • 6-way Audio Conference
  • Hot Line
  • Hot desking

Audio

  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec : G.711a/u,G.723.1,G.726, G.729A/B, iLBC
  • Wideband Codec : G.722, Opus
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC) X303W is the cost-effective color screen Wi-Fi IP phone with high performance specially for enterprise. It features a 2.4-inch 320×240 pixel color screen, supporting 4 SIP lines and 6-way audio conference to render a user-friendly experience. X303W has rich functions such as HD audio and built-in 2.4GHz & 5GHz Wi-Fi, providing an efficient and high-quality business communication experience for enterprises
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF : In-band, Out-of-Band (RFC2833/ SIP INFO)
  • VQM voice quality monitoring

Network

  •   Physical : 10/100 Mbps Ethernet, dual bridged port for PC bypass
  • IP Mode : IPv4/IPv6/IPv4&IPv6
  • IP Configuration : Static IP / DHCP / PPPoE
  • Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
  • Network Access Control : 802.1x
  • VPN : L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPv6
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069
  • AES128 & AES256

Physical Specifications

  • LCD : 2.4-inch (320×240) Color Screen
  • Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
  • 1.5M CAT.5E Ethernet Cable x1
  • Desktop stand x1
  • Status Indicator Light x1 (Red)
  • RJ9 Port x2 : Handset x1, Headset x1
  • RJ45 Port x2 : Network x1, PC x1 (Bridged to Network)
  • Security Slot x1
  • DC Power Input : DC5V / 1A
  • Power Consumption (Adapter) : 1.218~2.39W
  • Power Consumption (PoE) : 2.12~3.49W
  • Working Temperature : 0~45℃
  • Working Humidity : 10~95%
  • Color : Black
  • N.W/CTN : 8.98kg
  • G.W/CTN : 9.69kg
  • Gift Box Dimensions : 250x220x55mm
  • Outer CTN Dimensions : 460x300x270mm (10 PCS)
