Description

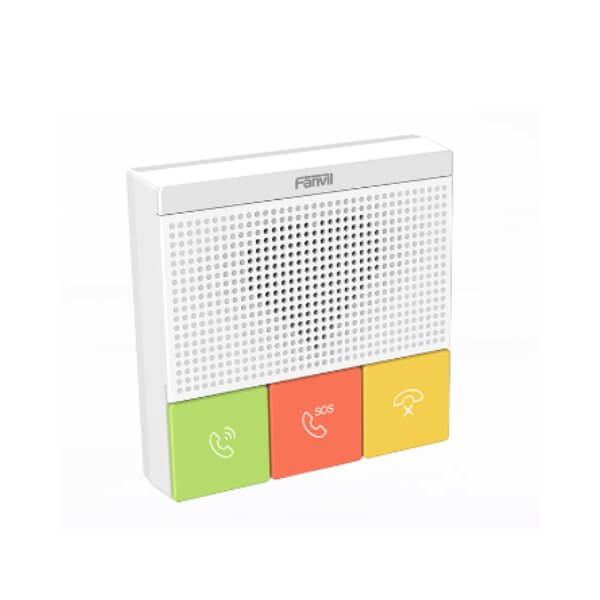

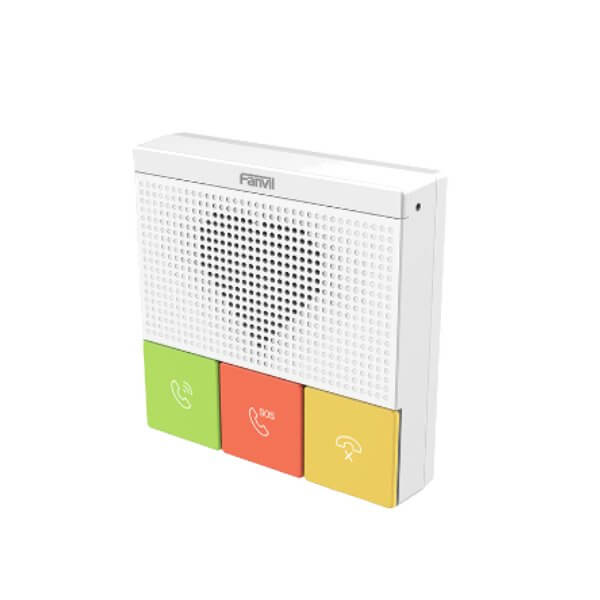

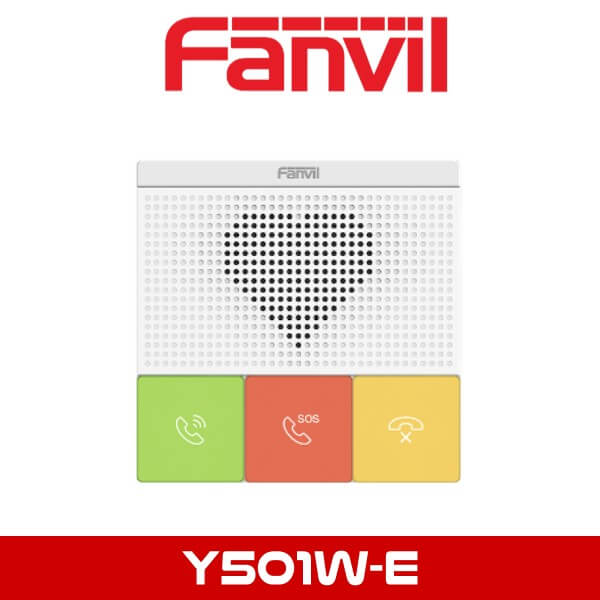

Fanvil Y501W-E SIP Intercom Dubai

The Fanvil Y501W-E Dubai SIP healthcare intercoms are meticulously crafted to meet the distinct requirements of home-based care, nursing homes, and various indoor applications, serving as a cornerstone of dependable and functional communication systems. Engineered with a keen focus on addressing emergency communication needs, reinforcing security protocols, and facilitating seamless broadcasting, these intercoms epitomize the pinnacle of innovation within healthcare technology.Standing out among its peers, the Fanvil Y501W-E Dubai intercoms boast remarkable high-definition audio capabilities, ensuring that communication remains crystal clear even in the most critical situations. Supporting up to 2 SIP accounts, users benefit from the ability to effortlessly manage multiple communication lines with precision and efficiency. The inclusion of detachable DSS keys provides users with expanded customization options, empowering them to tailor the intercoms to meet their specific needs and preferences.

Furthermore, the Y501W-E model’s IP54 waterproof and dustproof rating underscores its durability and resilience against environmental elements, rendering it suitable for deployment in a myriad of indoor settings. With built-in 2.4G and 5G Wi-Fi connectivity, the Y501W-E model seamlessly integrates into modern networking environments, enhancing its adaptability and versatility.Offering flexible installation options such as standard 86 box embedding and wall mounting, the Y501 series ensures effortless deployment across diverse healthcare settings. Whether installed in private residences or nursing facilities, these intercoms guarantee a timely and reliable healthcare communication experience for both patients and caregivers.

In essence, the Fanvil Y501W-E Dubai SIP healthcare intercoms represent a harmonious fusion of cutting-edge technology and pragmatic design, adeptly addressing the evolving needs of healthcare environments with steadfast reliability and unmatched performance.

Highlights

• Support specific 433MHz wireless button
• Features 2 SIP accounts and 3 antibacterial material detachable function buttons
• Support HD audio with codec G.722 and Opus
• Built-in 2.4G&5G Wi-Fi(Y501W/Y501W-E)
• Built-in 1 short circuit input/output interface
• IP54 waterproof and dustproof
• Support PoE power supply
• Support wall mountable installation (Y501/Y501W) and 86 box embedded installation(Y501-E/Y501W-E)

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4GHz & 5G Wi-Fi(Y501W/Y501W-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Support wireless button (Optional)
• Network Time Synchronization
• Built-in Wi-Fi
  • 4G, 802.11 b/g/n
  • 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• WIFI : 2.4G & 5G (Y501W/Y501W-E)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• 0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Y501 Series : 3 DSS buttons (Speed dial, Emergency, Cancel)
• Up to 10 wireless buttons supported
• Status indicator light : Red(registration failed、network anomaly)、Green(registration successful、call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 94W~1.98W(Y501/Y501-E)
  • 42W~2.35W(Y501W/Y501W-E)
• Power Consumption (PoE)：
  • 48W~2.37W(Y501/Y501-E)
  • 99W~3.05W(Y501W/Y501W-E)
• Housing material : ABS
• 433 wireless button specification：
  • communication mode：FSK
  • working frequency：433MHZ
  • communication protocol：1
• Installation : Indoor installation
  • Standard 86 Box Embedded
  • Wall Mountable
• Color : White
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• W/CNT : 3.7kg
• W/CNT : 3.98kg
• Equipment Dimension :
  • 56 x 87.56 x 30mm (Wall Mountable)
  • 56 x 87.56 x 21.5mm (86 Box Embedded)
• Packing Dimension : 95x106x40mm
• Outer CTN Dimension : 224x220x210mm (20 pcs)
