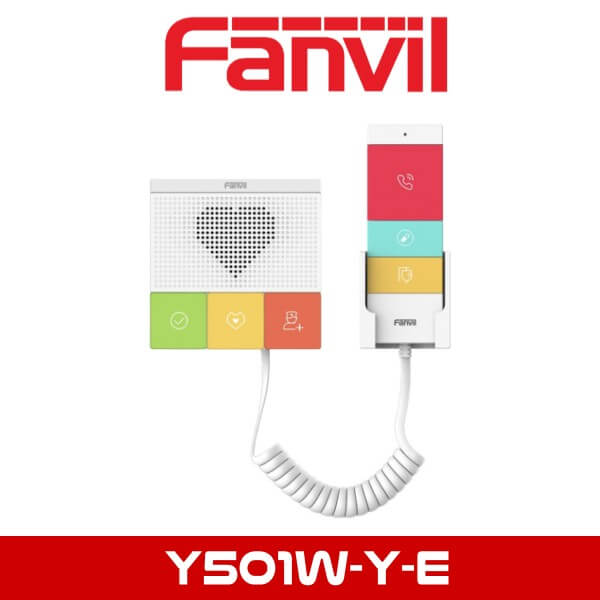

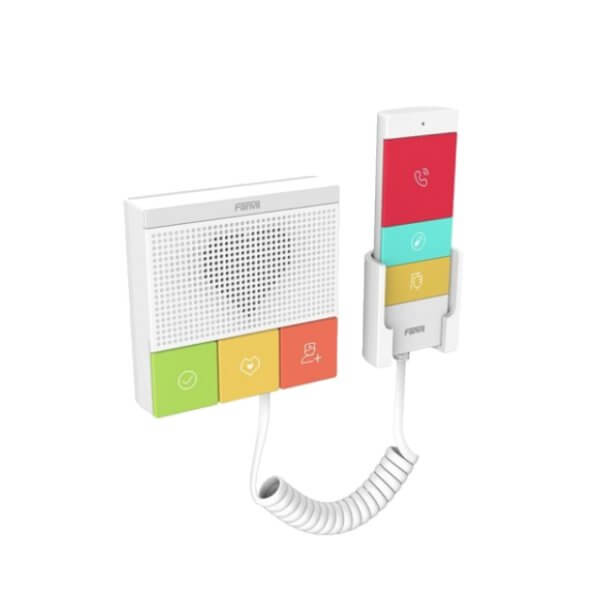

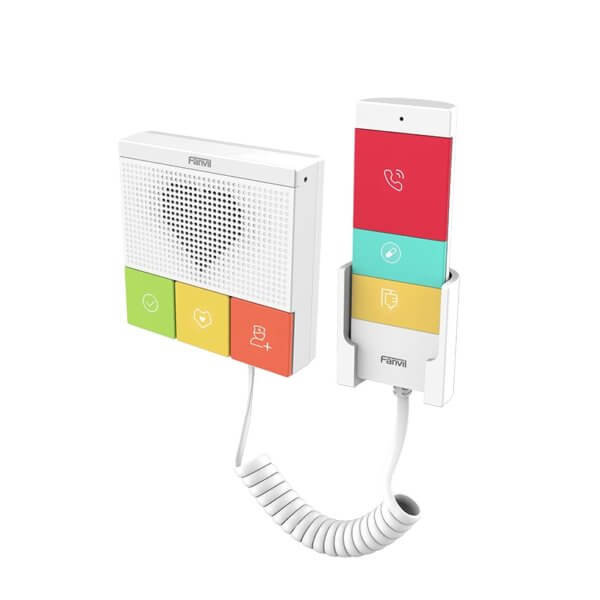

Fanvil Y501W-YE SIP Intercom Dubai

The Fanvil Y501W-YE Dubai SIP healthcare intercoms represent a revolutionary stride in the realm of home-based care solutions, tailored specifically to address the distinctive requirements of nursing homes, residential settings, and indoor environments. With a rich array of features and functionalities, they transcend conventional expectations to offer an unmatched level of service.

Designed with a steadfast commitment to excellence, these intercoms are engineered to facilitate seamless emergency communication, fortify security measures, and provide versatile broadcasting capabilities, thereby redefining the benchmarks for healthcare communication standards.Central to their design ethos is a dedication to superior performance, exemplified by features such as pristine HD audio reproduction, the flexibility of accommodating 2 SIP accounts, and the added convenience of detachable DSS keys. Moreover, boasting an IP54 waterproof and dustproof rating, these intercoms ensure unwavering functionality even amidst adverse environmental conditions, ensuring reliability when it matters most.

Distinctively, the Y501W-Y/Y501W-YE variants are endowed with integrated 2.4G and 5G Wi-Fi capabilities, empowering users with seamless connectivity options to augment communication channels and accessibility. Whether orchestrating care initiatives, disseminating vital information, or expediting emergency responses, these intercoms emerge as indispensable assets poised to meet the dynamic demands of contemporary healthcare landscapes.The Fanvil Y501W-YE Dubai excels in its adaptability to various installation settings, supporting both standard 86 box embedding and wall-mount configurations. This versatility ensures effortless integration into the existing infrastructure of healthcare facilities and residences, thereby ensuring a streamlined and efficient healthcare communication experience for both patients and caregivers alike.

In essence, the Fanvil Y501W-YE Dubai SIP healthcare intercoms epitomize a harmonious fusion of cutting-edge technology and purpose-driven design, heralding a new era of excellence in home-based care communication solutions. Their innovation sets a precedent for the industry, promising unparalleled performance and reliability in healthcare communication systems.

Highlights

• Support audio codec G.722 and Opus.
• Support specific 433MHz wireless button
• Features 2 SIP accounts and 6 antibacterial material detachable function buttons
• Support HD audio with codec G.722 and Opus
• Built-in 2.4G&5G Wi-Fi(Y501W-Y/Y501W-YE)
• Built-in 1 short circuit input/output interface
• IP54 waterproof and dustproof
• Support PoE power supply
• Support wall mountable installation (Y501-Y/Y501W-Y) and 86 box embedded installation(Y501-Y-E/Y501W-YE)

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4GHz & 5G Wi-Fi(Y501W-Y/Y501W-YE)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Support wireless button (Optional)
• Network Time Synchronization
• Built-in Wi-Fi
  • 2.4G, 802.11 b/g/n
  • 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• WIFI : 2.4G & 5G (Y501W-Y/Y501W-YE)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Y501-Y Series : 6 DSS buttons (Finish, Nursing, Assistant, Call,Dressing change, Infusion)
• Up to 10 wireless buttons supported
• Status indicator light : Red(registration failed、network anomaly)、Green(registration successful、call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 0.94W~1.98W(Y501-Y/Y501-Y-E)
  • 1.42W~2.35W(Y501W-Y/Y501W-YE)
• Power Consumption (PoE)：
  • 1.48W~2.37W(Y501-Y/Y501-Y-E)
  • 1.99W~3.05W(Y501W-Y/Y501W-YE)
• Housing material : ABS
• 433 wireless button specification：
  • communication mode：FSK
  • working frequency：433MHZ
  • communication protocol：Ebelong1.1
• Installation : Indoor installation
  • Standard 86 Box Embedded
  • Wall Mountable
• Color : White
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• N.W/CNT：3.97kg
• G.W/CNT：4.4 kg
• Equipment Dimension :
  • 87.56 x 87.56 x 30mm (Wall Mountable)
  • 87.56 x 87.56 x 21.5mm (86 Box Embedded)
• Packing Dimension : 234x168x44 mm
• Outer CTN Dimension : 356x245x254mm (10pcs)
