Flyingvoice FPX9102H Dubai



Flyingvoice FPX9102H Dubai

Flyingvoice FPX9102H Dubai is also compatible with most network service providers, supports automatic configuration, and TR069 remote management. Small businesses, home offices, remote offices, and multi-branch businesses enjoy a low-cost, easy-to-use IP voice phone solution.

Category:

Description

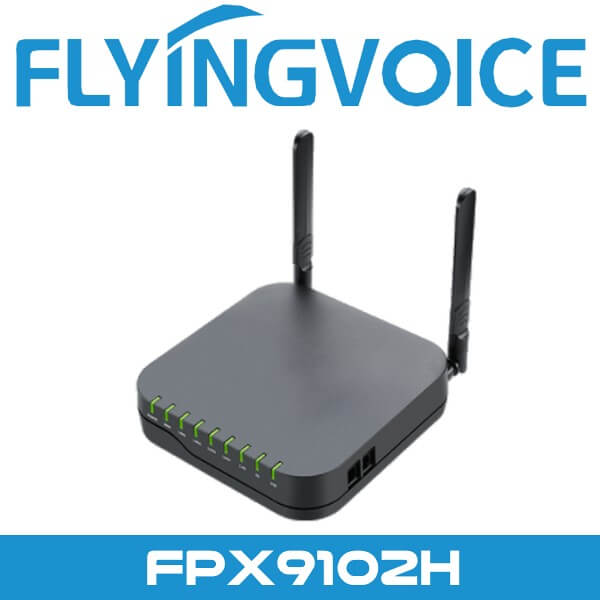

Flyingvoice FPX9102H Dual-Band VoIP Router Dubai

Flyingvoice FPX9102H Dubai network management type dual FXO port wireless VoIP router is one of the foremost popular converged gateway products developed and produced within the era of Flyingvoice. The Flyingvoice FPX9102H Dubai Dual-Band VoIP Router cannot only provide users with 2 FXO ports for connecting phone lines, but also provide two external line concurrent call functions. Built-in Asterisk also supports 50 extension numbers, which may be used as a little PBX to fulfill the decision needs of small and medium enterprises. Five Gigabit Ethernet ports and dual-band 1200Mbps wireless can simultaneously provide the necessities of wired / wireless connection within the office; the USB 2.0 interface is connected to a U disk and may be used as a TFTP server or Samba server to produce file storage and transmission functions. The black body is straightforward and stylish, and the business shape is more suitable for business use. It supports automatic discovery and zero-configuration IP terminals for user deployment. Flyingvoice FPX9102H Dubai is also compatible with most network service providers, supports automatic configuration, and TR069 remote management. Small businesses, home offices, remote offices, and multi-branch businesses provide a low-cost, easy-to-use IP voice phone solution.

Features :

  • Asterisk – Based :
    • Asterisk is an open source framework for building communications applications. Asterisk turns an ordinary computer into a communications server. Asterisk powers IP PBX systems, VoIP gateways, conference servers and other custom solutions. It is used by both small and medium – sized businesses, call centers, carriers and government agencies, worldwide. Asterisk is free and open source. Asterisk is sponsored by Sangoma. Flyingvoice FPX9102H Dubai Wireless Mini – IP PBX uses Asterisk as the basis for a complete business phone system, and to enhance or extend an existing system, as well as to bridge a gap between systems.
  • Firmware Upgradeable :
    • You can easily update the operating system on your Flyingvoice FPX9102H Dubai so as to improve its functionality and enhance user experience. Upgrading firmware also fixes any existing bugs and protects you from any kind of software malfunctions and  vulnerabilities. To update your router’s firmware, type your router’s IP address into your web browser and enter your login information. Then locate the Firmware or Update section and download the latest firmware update on your router manufacturer’s website. Finally, upload the update and reboot the router.
  • USB 2.0 Port :
    •  The Flyingvoice FPX9102H Dubai Wireless Mini IP PBX is equipped with USB 2.0 ports, enabling you to easily connect to external storage devices such as U Disk and removable hard disk. This makes it easy to share files and other multimedia content.
  •  Smart LED Indicators :

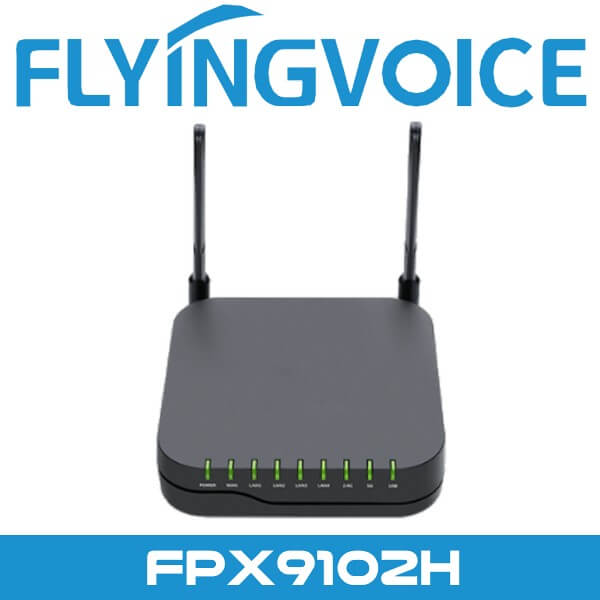

    • The Flyingvoice FPX9102H Dubai Wireless Mini IP PBX system is built with 8 LED indicators which notify you of different statuses of the device whenever you are carrying out any kind of connectivity. It has 1 Internet LED for indicating Internet connecting, 4 Ethernet LED for indicating Ethernet connecting, 1 Power LED for indicating Power connecting and 2 Wireless LED for indicating Wireless connecting(2.4G/5G).
  • Automatic Configuration:
    • The hi – tech  Flyingvoice FPX9102H Dubai Wireless Mini – IP PBX system uses Dynamic Host Configuration Protocol (DHCP) to provide you with quick, automatic and central management for the distribution of IP addresses within a network. It also uses DHCP to configure the subnet mask, default gateway, and DNS server information on the device.
  • Open VPN :
    • Open VPN provides flexible VPN solutions to secure your data communications, whether it is for Internet privacy, remote access for employees, securing IoT, or for networking Cloud data centers. VPN Server software solutions can be deployed on-premises using standard servers or virtual appliances, or on the cloud.
  • 2 FXO (Foreign Exchange Office) Ports:
    • FXO (Foreign Exchange Office) is the port that receives the analog line on the telephone or fax machine. It establishes the connection to the analog line (FXS). The Flyingvoice FPX9102H Dubai Wireless Mini IP PBX has been equipped with 2 FXO ports to maximize communication while using your telephone to make calls, thus maximizing work productivity.
  • Wi-Fi Connectivity :
    •  The Flyingvoice FPX9102H Wireless Mini IP PBX supports dual Wi-Fi® Wireless connections from a speed of 2.4GHZ(300Mbps) and 5GHz. This enhanced feature offers you unparalleled convenience when it comes to content sharing and audio streaming.
  • Highly Flexible :
    • The Flyingvoice FPX9102H Wireless  Mini IP PBX System pushes versatility to a new high, thanks to its ability to complement already existing fixtures for enhanced web and audio conferencing, as well as other communication needs. This makes it easy to integrate seamlessly into any office setup without disorienting earlier structures and work ethic. Furthermore, the device is easy to redeploy as the business grows and needs to transform.

Flyingvoice FPX9102H Dual-Band VoIP Router Specifications :

Power

  • AC/DC Adapter
  • AC Input: 100~240V, 50~60Hz
  • DC Output: 12V, 2A

Operating System

  • Linux 2.6.36

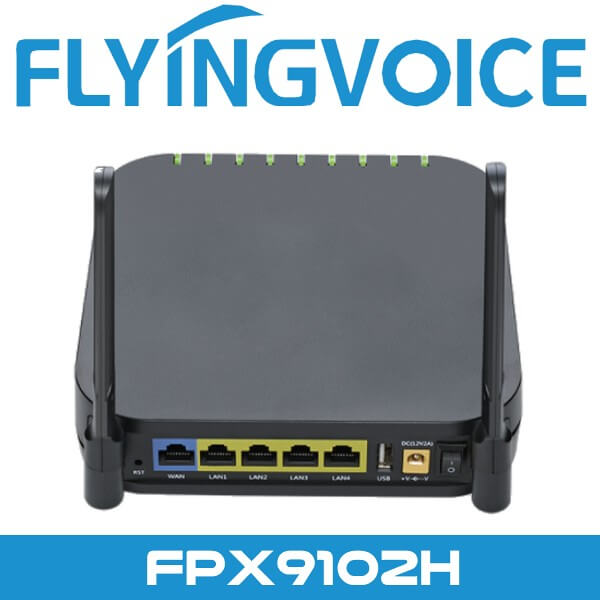

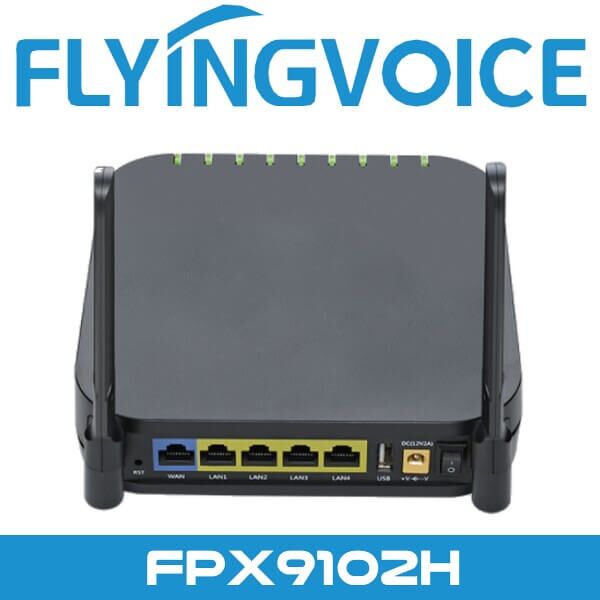

Interfaces

  • 1 RJ-45 Gigabit WAN port
  • 4 RJ-45 Gigabit LAN ports
  • 2 RJ-11 FXO ports
  • 1 USB 2.0 Port
  • Reset key

Button

  • Power button
  • Reset button

Environmental

  • Operation Temperature: -5~45 Degree C
  • Storage Temperature: -25~ 85 Degree C
  • Relative Humidity: 10%~90% No Condensing

Audio Codec

  • G.711(A/u), PAMS>4.3
  • G.729A/AB, PAMS>4.0
  • T.30 FAX with G.711
  • Adaptive Jitter Buffer
  • Voice Activity Detection
  • Comfort Noise Generation
  • Echo Cancellation

Wireless

  • Support 802.11 b/g/n 300Mbps MIMO
  • Support 802.11 a/an/ac 867Mbps MIMO
  • 8 SSID
  • Security Mode: OPENWEP (64/128bit), WPA-PSK/WPA2-PSK, WPA-PSK, WPA2-PSK
  • AP Isolation and MBSSID AP Isolation
  • WMM
  • WDS
  • Station list
  • MAC Filter (different from wired MAC Filter)

Management

  • Firmware Upgrade
  • Web Management Interface
  • Local and Remote Syslog (RFC3164)
  • Auto Provision
  • SNTP Time Synchronization
  • Multi User Level
  • SNMPv2
  • TR069
  • Network diagnosis

Protocols

  • SIP V2.0 (RFC 3261)
  • Backward compatible with RFC2543
  • Session timer (RFC4028)
  • SDP (RFC2327)
  • RTP/RTCP (RFC1889/RFC1890)
  • NAPTR for SIP URI lookup (RFC2915)
  • STUN (RFC2030)
  • ARP/RARP (RFC 826/903)
  • SNTP (RFC 2030)
  • DHCP/PPPoE
  • HTTP Server for Web Management
  • TFTP/HTTP/HTTPS for Auto Provision
  • Message Waiting Indicator (RFC3842)
  • DHCP Option Codes for SIP (RFC3361)
  • DNS/DNS SRV (RFC1706 and RFC 2782)
  • TR069 (TR098, TR104)
  • IEEE802.1Q VLAN/802.1p/DSCP
  • SNMP v2

Applications

  • Support Asterisk
  • Support 50 extensions
  • Support 25 concurrent calls
  • Support voice conference room
  • SIP trunk
  • IVR
  • VPN: PPTP, L2TP, OpenVPN
  • DDNS
  • QoS
  • Static route
  • Firewall
  • 2 PSTN Trunks ( FXO ports )

FXO port features

  • Busy tone detection
  • No current streak detection
  • Voice interrupt detection
  • One-time dialing
  • Dial two times
  • PSTN Outside Port Poll
  • Supports reverse polarity signal
  • FAS (Fake billing correction)
  • AC / DC impedance configuration
  • Caller ID (Bellcore Type 1 & 2,ETSI, DTMF)

Dimensions And Weight

  • 153mm(L)x153mm(W)x35mm(H)
  • 330g(N.W)
