Description

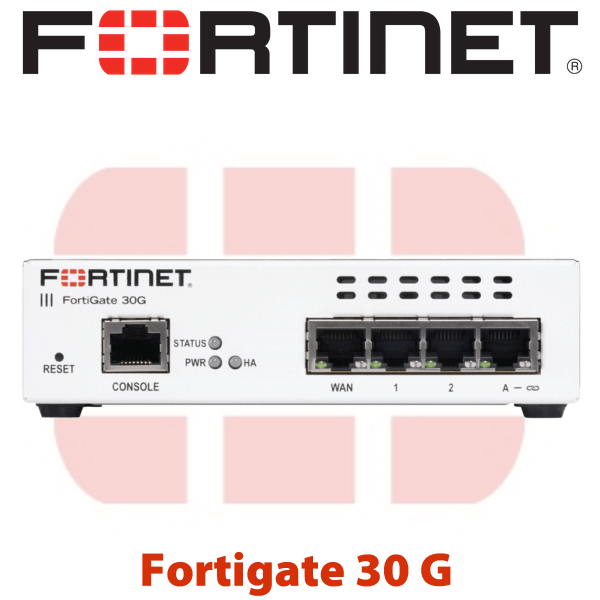

FortiGate30G Dubai
The FortiGate30G Dubai integrates firewall, SD-WAN, and advanced security into a single device, making it an ideal solution for securing networks at distributed enterprise sites and optimizing WAN infrastructure at any scale. Powered by the FortiOS operating system, it delivers the industry’s first unified approach to networking and security. This integration enables businesses to secure dynamic digital environments efficiently. As a key element of the FortiGate Security Fabric platform, the FortiGate Next Generation Firewall (NGFW) collaborates seamlessly with FortiGuard’s AI-driven Security Services to provide comprehensive, automated, and real-time threat defense across various scenarios. Equipped with a specialized SD-WAN-focused ASIC, the FortiGate30G Dubai offers superior performance compared to conventional CPUs, while also reducing costs and power usage. Its purpose-built design and integrated multi-core processor enhance the convergence of networking and security capabilities, delivering optimized secure connectivity and a better user experience at branch locations.
The FortiGate30G Dubai offers a range of key features designed to enhance network security and performance. Its Next-Generation Firewall (NGFW) provides comprehensive protection against a variety of cyber threats, including malware, viruses, spyware, and botnets. The device supports SD-WAN, enabling flexible and efficient WAN connectivity, which helps businesses optimize network performance while reducing costs. Powered by FortiGate’s patented Security Fabric architecture, the FortiGate30G Dubai ensures high-performance security without compromising efficiency. Additionally, the device utilizes AI-powered security to detect and block advanced threats in real-time. Its intuitive, web-based interface allows for easy configuration and management, making it user-friendly. The FortiGate30G Dubai is also scalable, capable of adapting to growing network demands. Furthermore, it offers cloud-based management, allowing centralized monitoring and control of distributed networks.
Specifications:
| Hardware Specifications | |
| Hardware Accelerated GE WAN Port | 1 |
| Hardware Accelerated GE RJ45 Ports | 2 |
| Hardware Accelerated GE RJ45 FortiLink Port (Default) | 1 |
| USB Ports | — |
| Console Port (RJ45) | 1 |
| Trusted Platform Module (TPM) | |
| Bluetooth Low Energy (BLE) | — |
| Wireless Interface | — |
| System Performance* — Enterprise Traffic Mix | |
| IPS Throughput | 800 Mbps |
| NGFW Throughput | 570 Mbps |
| Threat Protection Throughput | 500 Mbps |
| System Performance | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
4/ 4/ 3.9 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) |
4/ 4/ 3.9 Gbps |
| Firewall Latency (64 byte UDP packets) |
2.87 μs |
| Firewall Throughput (Packets Per Second) |
5.85 Mpps |
| Concurrent Sessions (TCP) | 600,000 |
| New Sessions/Second (TCP) | 30,000 |
| Firewall Policies | 2000 |
| IPsec VPN Throughput (512 byte) | 3.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | — |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
— |
| SSL Inspection Throughput (IPS, avg. HTTPS) |
400 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 260 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 |
| Application Control Throughput (HTTP 64K) | 830 Mbps |
| CAPWAP Throughput (HTTP 64K) | TBA Gbps |
| Virtual Domains (Default / Maximum) | Not Supported |
| Maximum Number of FortiSwitches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 16/8 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active-Passive, Active-Active |
| Dimensions | |
| Height x Width x Length (inches) | 1.6 x 5.6 x 6.3 |
| Height x Width x Length (mm) | 40.5 x 142 x 160 |
| Weight | 1.3 lbs (0.6 kg) |
| Rack Mount Type | NA |
| Wall Mountable | Optional |
| Form Factor (supports EIA/non‑EIA standards) | Desktop |
| Operating Environment and Certifications | |
| Power Rating | 12VDC, 2A |
| Power Source Powered by external DC power adapter | 100-240V AC, 50/60 Hz |
| Maximum Current | 100V/0.11A, 240V/0.055A |
| Power Consumption (Average / Maximum) | 6.8 W / 8.2 W |
| Heat Dissipation | 28 BTU/hr |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -31° to 158°F (-35° to 70°C) |
| Humidity | 20% to 90% non-condensing |
| Noise Level | N/A |
| Operating Altitude | 10 000 ft (3048 m) |
| Compliance | FCC, IC, CE, UL/cUL, CB, VCCI, BSMI, RCM, UKCA |
| Certifications | USGv6/IPv6 |
