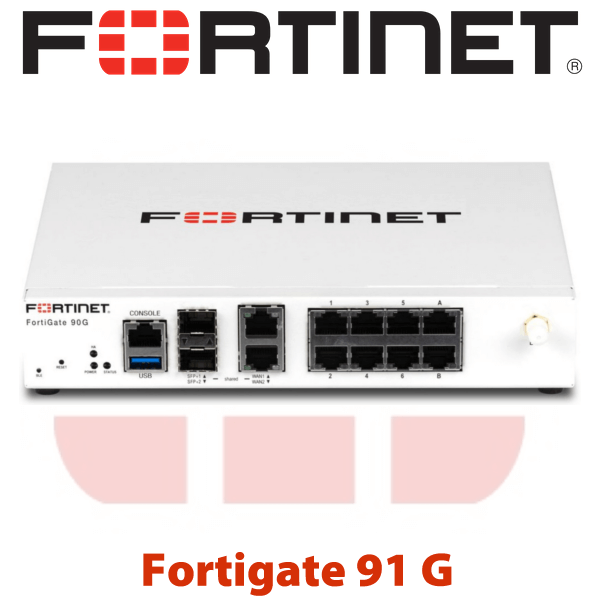

FortiGate91G Dubai
The FortiGate91G Dubai Next-Generation Firewall is a top solution for businesses aiming to implement security-centric networks, especially in distributed enterprise settings. It significantly upgrades WAN infrastructure, offering scalability for networks of any size. Featuring AI and machine learning-powered FortiGuard security services within the robust Security Fabric platform, the FortiGate91G Dubai provides automated, comprehensive, and unified threat protection across various scenarios. It is the industry’s first to integrate SD-WAN and zero-trust network access (ZTNA) enforcement within a single next-generation firewall, all on one OS. The FortiGate91G Dubai streamlines the management, authentication, and simplification of user access to applications, ensuring a seamless, optimized, and reliable user experience.
Specifications:
| Hardware Specifications | |
| 10/5/2.5/GE RJ45 or 10GE/GE SFP+/ SFP Shared Media pairs | 2 |
| GE RJ45 Internal Ports | 8 |
| Wireless Interface | – |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| Internal Storage | 1 x 120 GB SSD |
| Trusted Platform Module (TPM) | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| System Performance* — Enterprise Traffic Mix | |
| IPS Throughput | 4.5 Gbps |
| NGFW Throughput | 2.5 Gbps |
| Threat Protection Throughput | 2.2 Gbps |
| System Performance and Capacity | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 28 / 28 / 27.9 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.23 μs |
| Firewall Throughput (Packets Per Second) | 41.85 Mpps |
| Concurrent Sessions (TCP) | 1.5 M |
| New Sessions/Second (TCP) | 124 000 |
| Firewall Policies | 5000 |
| IPsec VPN Throughput (512 byte) | 25 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2500 |
| SSL-VPN Throughput | 1.4 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 2.6 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 300 000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 390 000 |
| Application Control Throughput (HTTP 64K) | 6.7 Gbps |
| CAPWAP Throughput (HTTP 64K) | 23.6 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 96 / 48 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 1.65 x 8.5 x 7.0 |
| Height x Width x Length (mm) | 42 x 216 x 178 |
| Weight | 2.47 lbs (1.12 kg) |
| Form Factor | Desktop |
| Operating Environment and Certifications | |
| Input Rating | 12V DC, 5A (dual redundancy optional) |
| Power Required (Redundancy Optional) | Powered by up to 2 External DC Power Adapters (1 adapter included), 100–240V AC, 50/60 Hz |
| Power Supply Efficiency Rating | 80Plus Compliant |
| Maximum Current | 115Vac/0.4A, 230Vac/0.2A |
| Power Consumption (Average / Maximum) | 22.4 W / 23.5 W |
| Heat Dissipation | 80.135 BTU/hr |
| Operating Temperature | 32°–104°F (0°–40°C) |
| Storage Temperature | -31°–158°F (-35°–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 21.73 dBA |
| Operating Altitude | Up to 10 000 ft (3048 m) |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
