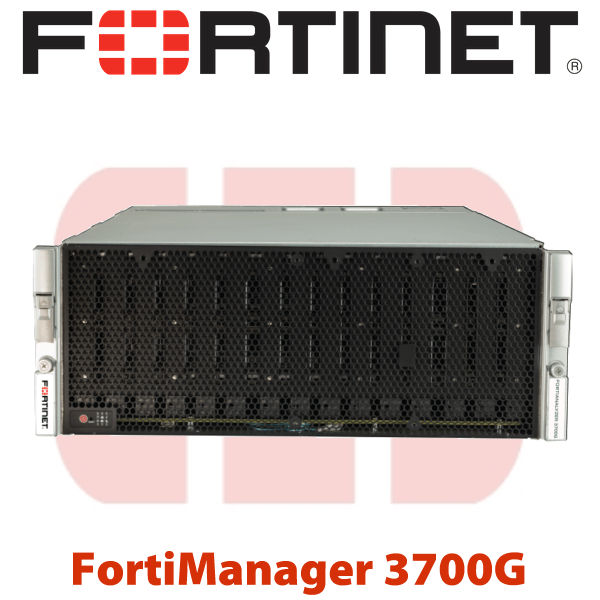

FortiManager3700G Dubai
The Fortinet FortiManager3700G Dubai is a high-performance centralized management solution tailored for efficient administration of large-scale Fortinet security systems. This advanced platform offers a unified interface, known as a “single pane of glass,” providing comprehensive visibility and streamlined control across the entire network infrastructure. By centralizing management tasks, it simplifies the provisioning process and incorporates powerful automation features that minimize manual intervention, boosting the efficiency and scalability of network operations. With its robust capabilities, the FortiManager3700G Dubai ensures consistent enforcement of security policies and quick adaptation to changing network needs.
Scalability is a key advantage, as it allows for the easy management of a large number of Fortinet devices and VDOMs. Additionally, FortiManager3700G Dubai provides advanced reporting capabilities, generating detailed reports on network security, performance, and compliance. The platform also supports integration with other security solutions, such as FortiAnalyzer and FortiGate, allowing for a cohesive and unified security management approach across all Fortinet products.
Specifications:
| Capacity and Performance | |
| Devices/VDOMs (Default) | 10 000 |
| Devices/VDOMs (Maximum) | 100 000 |
| Sustained Log Rates | 150 |
| GB/ day | 10 |
| Hardware Specifications | |
| Storage Capacity | 240TB (60x 4TB) HDD + 19.2TB (6x 3.2TB) NVMe SSD |
| Usable Storage (after RAID) | 224 TB |
| RAID Levels Supported | RAID 0/1,1s/5,5s/6,6s/10/50/60 |
| Default RAID Level | 50 |
| Hardware Form Factor | 4 RU Rackmount |
| Total Interfaces | 2x 25GE SFP28, 2x 10GE RJ‑45 |
| Console Port | DB‑9 |
| Removable Hard Drives | ✓ |
| Redundant Hot Swap Power Supplies | ✓ |
| Trusted Platform Module (TPM) | ✓ |
| Dimensions | |
| Height x Width x Length (inches) | 7.0 x 17.2 x 30.2 |
| Height x Width x Length (cm) | 17.8 x 43.7 x 76.7 |
| Weight | 120 lbs (54.6 kg) |
| Environment | |
| AC Power Supply | 2000W AC 4 |
| Power Consumption (Average / Maximum) | 850 W / 1423.4 W |
| Heat Dissipation | 4858 BTU/h |
| Operating Temperature | 50°F to 95°F (10°C to 35°C) |
| Storage Temperature | ‑40°F to 158°F (‑40°C to 70°C) |
| Humidity | 5% to 95% non-condensing |
| Forced Airflow | Front to Back |
| Operating Altitude | Up to 7400 ft (2250 m) |
| Compliance | |
| Safety Certifications | FCC Part 15 Class A, RCM, VCCI, CE, BSMI, KC, UL/cUL, CB, GOST |
