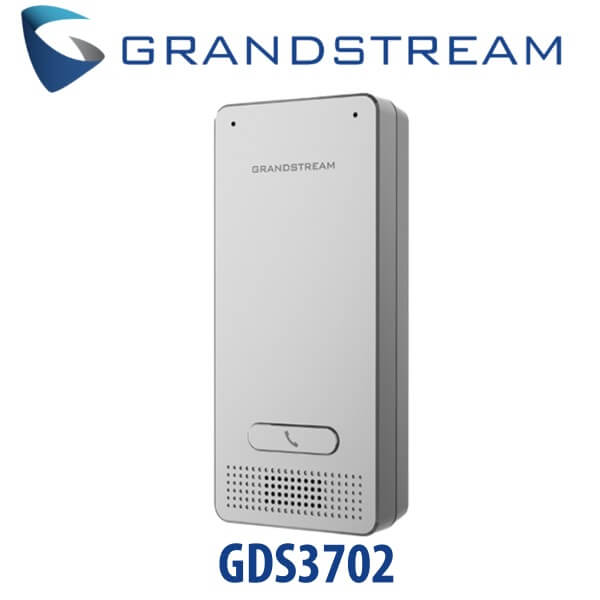

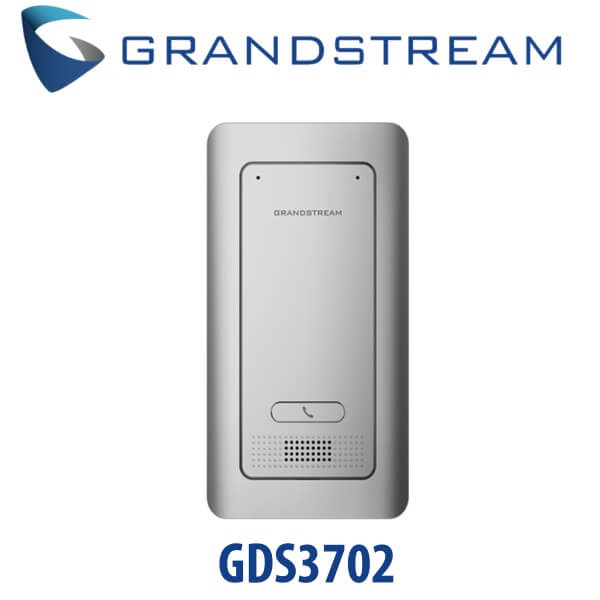

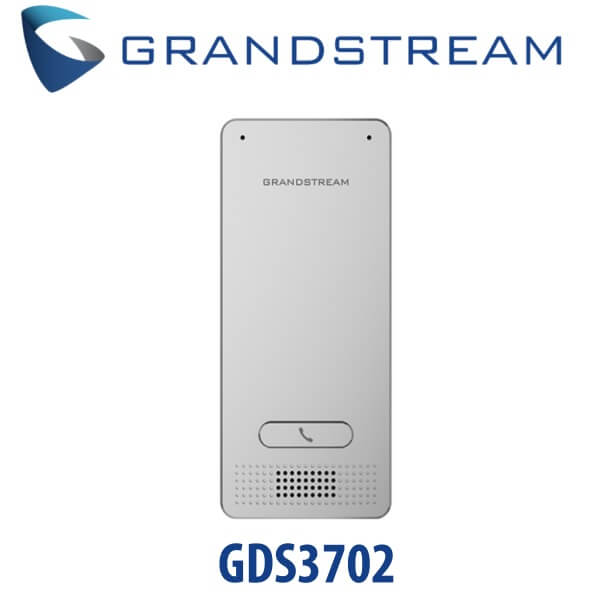

Grandstream GDS3702 HD Audio IP Intercom System Dubai

Description

Grandstream GDS3702 HD Audio IP Intercom System Dubai

Grandstream GDS3702 Dubai delivers remote facility access control for all buildings, ranging from small to large. It is a high quality HD Audio IP Intercom System which comes with a built-in microphone and speaker to support intercom functionality. The IP Intercom supports integration with electric locks for locking and unlocking doors, and offers alarm-in and alarm out support for integration with existing security systems.

The Grandstream GDS3702 Dubai works with Grandstream’s free management software, GDS Manager. It features SIP/VoIP technology with 2-way HD audio, IP66 level weatherproof casing, and is vandal resistant. The combination of the GDS3702, Grandstream’s IP Phones, Wave mobile app, and other 3rd party IP devices provide a complete end-to-end solution for access control, and intercom needs.

Features:

HD audio options with up to 1.5m of audio input and 3m of audio output
Grandstream GDS3702 Dubai supports SIP calls to IP phones to facilitate communication
Built with a metal casing to make it weatherproof and vandal resistant
2 Relay for Electric Lock and Alarm out, 2 Alarm In for Exit button and door sensor
Integrated PoE to power the device and provide a network connection
Grandstream GDS3702 Dubai has a built-in microphone and speaker which offers voice options and intercom functionality

Technical Specifications

General

Network 10M/100M Auto-sensing
PoE PoE IEEE 802.3af Class3
Supply Voltage 12VDC /1A (AC power adapter not included)
SIP/VoIP Support Yes, broad interoperability
Voice Codecs G.711μ/a, G.722, DTMF(RFC2833, SIP INFO), AEC, ANC
Audio Input Built-in microphones up to 1.5m Audio
Output HD loudspeaker 2W, up to 3m Input 2 Optocoupler Input, Vin<15V, for door sensor or other low voltage device Output 2 Relay, 125VAC/0.5A or 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or other relative high voltage device
Waterproof Certificate IP66 (EN60529)
Vandal Resistance IK10 (IEC62262)
Temperature and Humidity Operation: -30°C to 60°C; Storage: -35°C to 60°C Humidity: 10% to 90% Non-condensing
Mounting On-Wall, In-Wall (Mount Kit required, Sold separately)
Dimension (HxWxD) and Weight On-Wall: 173mm x 80mm x 36mm; In-Wall: 217mm x 120mm x 11.6mm; Unit Weight: 672 gram
Compliance CE, FCC, IC, RCM, UKCA
