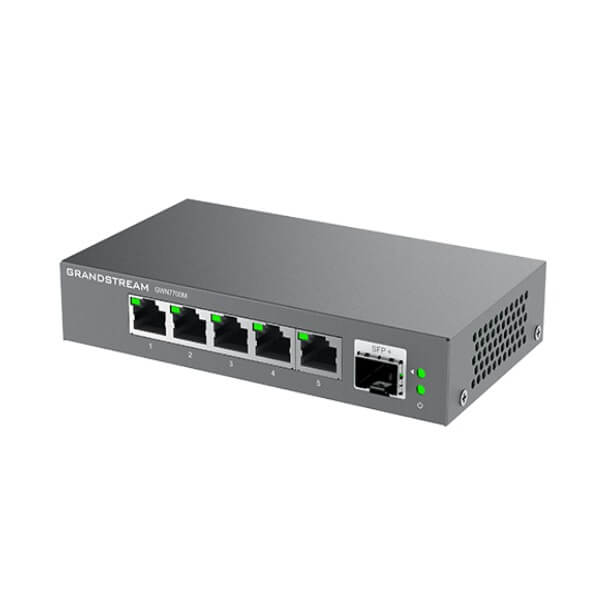

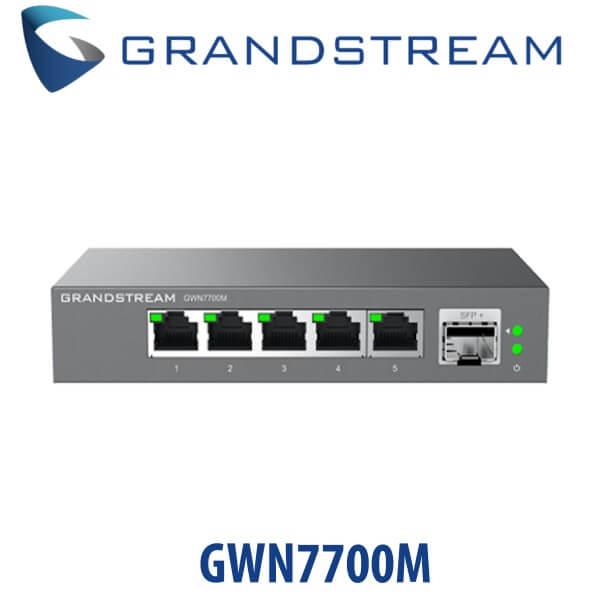

Grandstream GWN7700M Dubai

The Grandstream GWN7700M Dubai Network Switch is specifically designed for home offices and small to medium businesses, providing rapid network connections at speeds of up to 2.5 Gbps.

Description

Grandstream GWN7700M Network Switch Dubai

The Grandstream GWN7700M Dubai Network Switch is specifically designed for home offices and small to medium businesses, providing rapid network connections at speeds of up to 2.5 Gbps. These switches come in either 6- or 9-port options and support Ethernet, 1 Gigabit, and 2.5 Gigabit speeds, along with Gigabit SFP fiber optic ports for high-speed 1Gb or 10Gb uplink connections to your network. The GWN7700M and GWN77001M adapters are user-friendly and require no configuration or installation, allowing for effortless placement on a table or wall. Furthermore, the Grandstream GWN7700M Dubai includes Auto MDI/MDIX functionality, eliminating the necessity for crossover cables. Each port supports auto-negotiation, which detects the speed of a 100/1000/2500 Mbps network device and adjusts it accordingly for optimal performance and compatibility. The GWN7700M and GWN7701M switches are plug-and-play, making them extremely suitable for home offices and small to medium-sized businesses in need of high-speed multi-gigabit connectivity.

Grandstream GWN7700M Features

5 and 8 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
LED Indicators; Per port : Link/Activity/Speed Per device : Power
Auto MDI/MDIX crossover for all ports
Whisper Quiet : fanless
Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
Green technology reduces power consumption
QoS – Supports Default Strict Priority when present

Additional Information

Weight	1.15 lbs
Dimensions	10 × 4.33 × 2.1 in
Brand	Grandstream
Switch Type	Unmanaged Switches
Product Family	GWN-Cloud
Number of Ports	5-10
Main Port Speed	2.5G
Uplink Ports	10G SFP+
Layer Support	L2
PoE Support	No
Redundant Power Supply	No

Technical Specifications

GENERAL INFO :

Model : GWN7700M
Box Contents :
- 1x GWN7700M Switch
- 1x Power Adapter
- 1x QIG
Enclosure : Metal
Mounting : Desktop/ Wall-Mount
Power Adapter : External 12V/1A
Max Power Consumption by Base System : 7.0W
LED Indicators :
- Per port : Link/Activity Green
- Per device : Power Green
Compliance : FCC, CE, RCM, IC, UKCA

PORTS :

Gigabit Ports : 5
Port Features :
- 5× 100/1000/2500Mbps RJ45 Ports
- 1× SFP+ Fiber Port
- AUTO Negotiation
- AUTO MDI/MDIX

NETWORK :

Network Media :
- 2.5GBase-T / 1000Base-T / 100Base-TX / 10 Base-Te, Half/Full-Duplex
Mac Address Table : 4K
Switching Capacity : 45Gbps
Jumbo Frame : 9KB
Advanced Features :
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- IEEE 802.3az (Energy Efficient Ethernet)
- 802.1p/DSCP QoS
- IGMP :
  - IGMP Fast-Leave
  - IGMP Snoop
  - Route Port Autolearn
  - Query Refresh Member Port
