Description

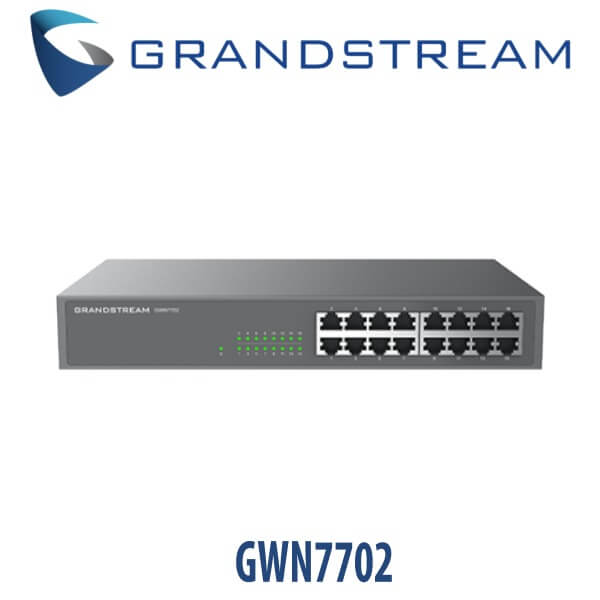

Grandstream GWN7702 Network Switch Dubai

The Grandstream GWN7702 Dubai comprises user-friendly network switches that deliver rapid Gigabit connectivity at a budget-friendly cost. Designed for home offices and small to medium-sized businesses, these switches can be conveniently placed on a desk or wall-mounted. They come equipped with auto MDI/MDIX, eliminating the requirement for specialized cables. The Grandstream GWN7702 Dubai features auto-negotiation on each port, seamlessly adapting to the link speed of any 10/100/1000Mbps network device to ensure compatibility and optimal performance.

Moreover, the PoE models of the GWN7702 offer IEEE 802.3af/at compliant smart dynamic PoE output on their ports, making it possible to power PoE devices such as IP phones, IP cameras, and Wi-Fi access points. All in all, the Grandstream GWN7702 Dubai presents a hassle-free, plug-and-play solution that is well-suited for home offices and small-to-medium businesses seeking an easily manageable network switch.

Technical Specifications

• Gigabit Ports : 16
• PoE Ports : N/A
• Enclosure :  Metal
• Mounting :  Desktop/Rack-Mount
• Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
• Port Features :
  • 16 * 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media :  1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
• LED Indicators :
  • Per port : Link/Activity Green
  • Per device : Power Green
• Mac Address Table : 8K
• Switching Capacity :  32Gbps
• Jumbo Frame : 10KB
• Advanced Features :
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • Half duplex backpressure
• Power Adapter : Internal 100-240V AC, 50/60Hz,18W
• Max Power Consumption by Base System :   8W@220V/50Hz
• Environmental :
  • Operating Temperature : 0 to 40 °C (32 to 104 °F)
  • Storage Temperature : -20 to 60 °C (-4 to 140 °F)
  • Operating Humidity : 10% to 90% Non-condensing
  • Storage Humidity : 10% to 90% Non-condensing
• Dimensions (L x W x H) :
  • Unit : 280 x 180 x 44mm;
  • Package : 366 x 211 x 53mm
• Weight :
  • Unit : 1.23KG
  • Entire Package : 1.83KG
• Package :
  • 1x Switch
  • 1x 1.2m AC Cable
  • Rack-mounting Standard Brackets
  • 4x Rubber Feet
  • 1x QIG
• Compliance :   FCC, CE, RCM, IC, UKCA
