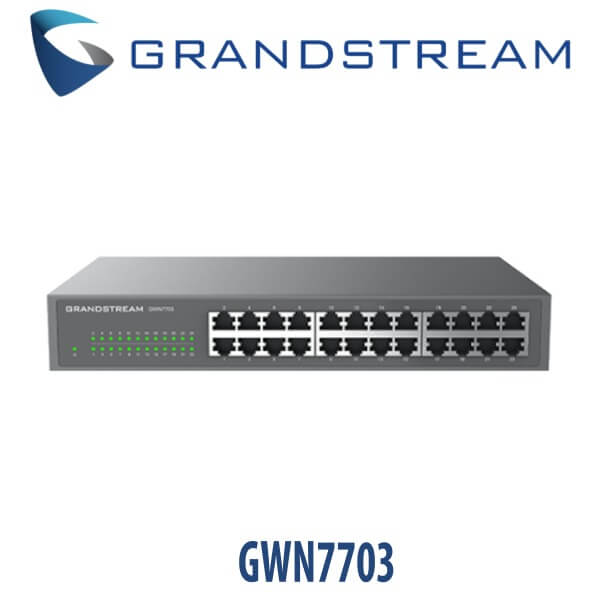

Grandstream GWN7703 Network Switch Dubai

The Grandstream GWN7703 Dubai is a series of unmanaged network switches that offer a speedy and cost-effective solution for enhancing the high-speed Gigabit connectivity of your home office or small business. With no need for configuration or installation, these switches can be easily mounted on a desk or wall. The auto MDI/MDIX functionality eliminates the necessity for crossover cables. Each port of the Grandstream GWN7703 Dubai supports auto-negotiation, enabling the switch to automatically detect and adjust the connection speed of 10/100/1000 Mbps network devices, ensuring seamless compatibility and optimal performance.

For added convenience, the PoE (Power-over-Ethernet) model comes equipped with an IEEE 802.3af-compliant intelligent dynamic PoE output port. This feature allows you to power PoE endpoints such as IP phones, IP cameras, WiFi access points, and more. In conclusion, the plug-and-play Grandstream GWN7703 Dubai is the ideal choice for home offices or small businesses seeking an unmanaged network switch solution.

Technical Specifications

• Gigabit Ports : 24
• PoE Ports :  N/A
• Enclosure :  Metal
• Mounting :  Desktop/Rack-Mount
• Standards and Protocols :  IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
• Port Features :
  • 16 * 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media :  1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
• LED Indicators :
  • Per port :  Link/Activity Green
  • Per device :  Power Green
• Mac Address Table :  8K
• Switching Capacity : 48Gbps
• Jumbo Frame :  10KB
• Advanced Features :
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • Half duplex backpressure
• Power Adapter :  Internal 100-240V AC, 50/60Hz,18W
• Max Power Consumption by Base System : 13W@220V/50Hz
• Environmental :
  • Operating Temperature :  0 to 40 °C (32 to 104 °F)
  • Storage Temperature :  -20 to 60 °C (-4 to 140 °F)
  • Operating Humidity :  10% to 90% Non-condensing
  • Storage Humidity :  10% to 90% Non-condensing
• Dimensions (L x W x H) :
  • Unit :  280 x 180 x 44mm;
  • Package :  366 x 211 x 53mm
• Weight :
  • Unit : 1.35KG
  • Entire Package : 1.95KG
• Package :
  • 1x Switch
  • 1x 1.2m AC Cable
  • Rack-mounting Standard Brackets
  • 4x Rubber Feet
  • 1x QIG
• Compliance : FCC, CE, RCM, IC, UKCA
