Description

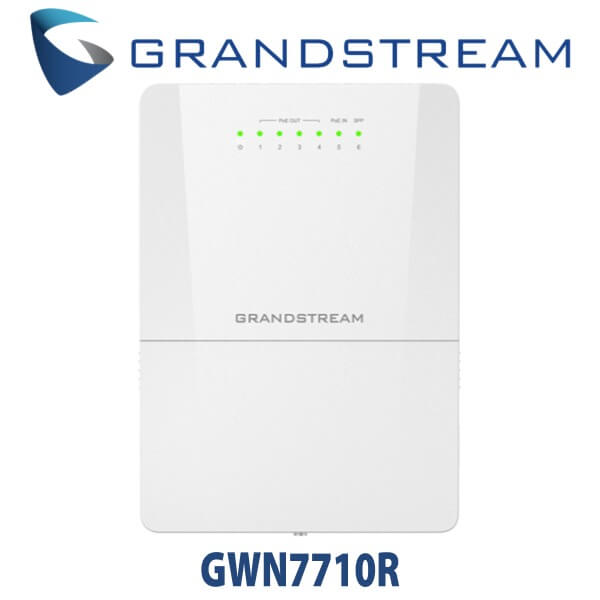

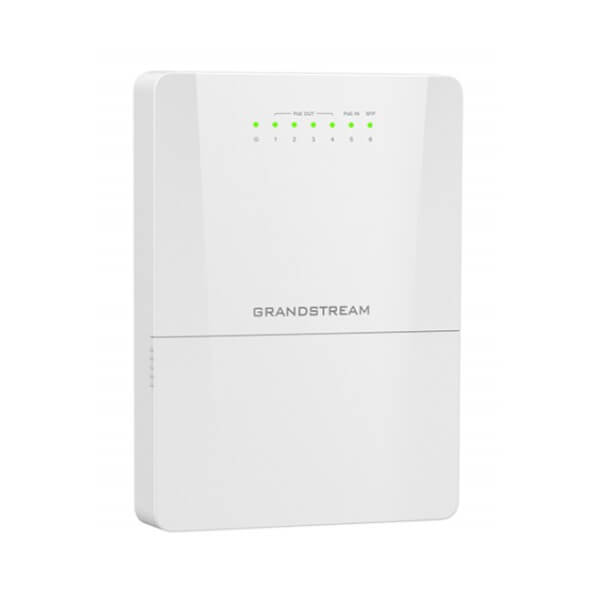

Grandstream GWN7710R Dubai
The Grandstream GWN7710R Dubai is a robust 6-port outdoor Lite Managed PoE switch, built to deliver dependable performance in harsh conditions. It comes equipped with five Gigabit RJ45 ports (including four PoE output ports and one PoE input port) and an SFP Fiber Port for extended connectivity. Supporting IEEE 802.3 at/af and 24V/48V DC passive PoE, this switch provides up to 60W power on Port 1 and 30W on Ports 2-4. Its PoE Watchdog feature enhances operational efficiency, while the IP66-rated waterproof and dustproof design ensures durability in extreme temperatures ranging from -40°C to 60°C. The GWN7710R Dubai also includes advanced functionalities such as DHCP Snooping for security, STP/RSTP for network stability and redundancy, and built-in QoS for traffic prioritization. Managing the device is straightforward through options like local web configuration, GWN Manager, or GDMS Networking.
Features:

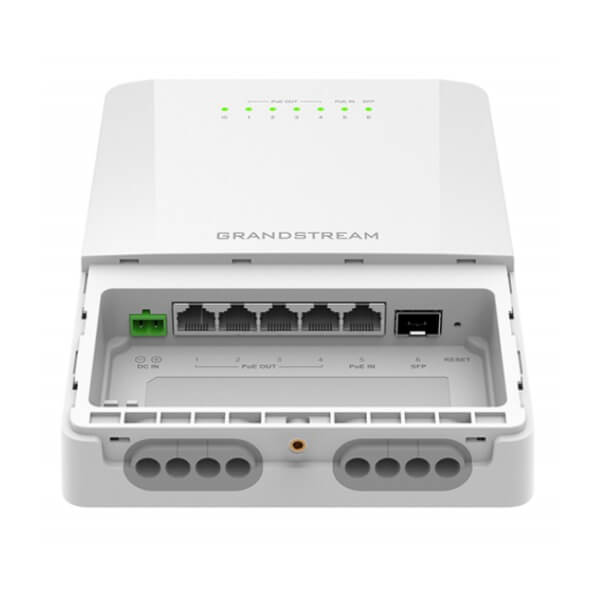

- 5 Gigabit RJ45 ports (4 PoE output ports, 1 PoE input port)
- IEEE 802.3 at/af or 24V/48V DC passive PoE out,Up to 60W on Port 1 and up to 30W on Port 2-4; Supports PoE Watchdog function
- SFP Fiber Port for long-distance transmission
- DHCP Snooping – Only allow DHCP packets from trusted ports to keep the enterprise DHCP environment safe
- IP66 dustproof and waterproof rating; Wide operating temperature range: -40°C and 60°C
- Supports convenient and intelligent local Web configuration, GWN Manager, and GDMS Networking
- STP/RSTP to guarantee fast convergence, ensure network stability, and provide link load balance and redundancy
- Built-in QoS allows for prioritization of network traffic
Specifications:
| STANDARDS AND PROTOCOLS | IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| GIGABIT PORTS | 6 |
| POE PORTS (POE MODELS) | 5 |
| PORT FEATURES | 5x Gigabit Ethernet Ports 1x 1G/2.5G SFP Port |
| PoE CONFIGURATION (PoE MODELS) | Standard PoE output Mode: Port 1 – Port 4 up to 30W on each PoE port; Passive PoE output Mode: Port 1: 4-pair 48V DC up to 60W or 4-pair 24V DC up to 30W; Port 2 – Port 4: 2-pair 48V DC up to 30W or 2-pair 24V DC up to 15W; Note: 4-Pair: Powered on pins: 1,2,4,5(+),3,6,7,8(-); 2-Pair: Powered on pins: 4,5(+),7,8(-) |
| LED INDICATORS | Per device System on : Green; Per Ethernet port Link/Activity: Green; Per Passive PoE out port 48VDC: Orange; Per Passive PoE out port 24VDC: Blue; Support LED indicator switch |
| SWITCHING CAPACITY | 15Gbps |
| JUMBO FRAME | 2K/3K/4K/5K/6K/7K/8K/9K/12K/15K |
| ENCLOSURE | Metal |
