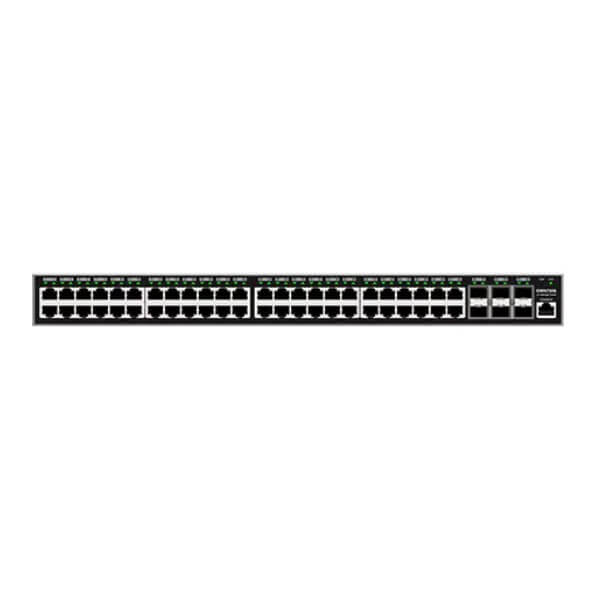

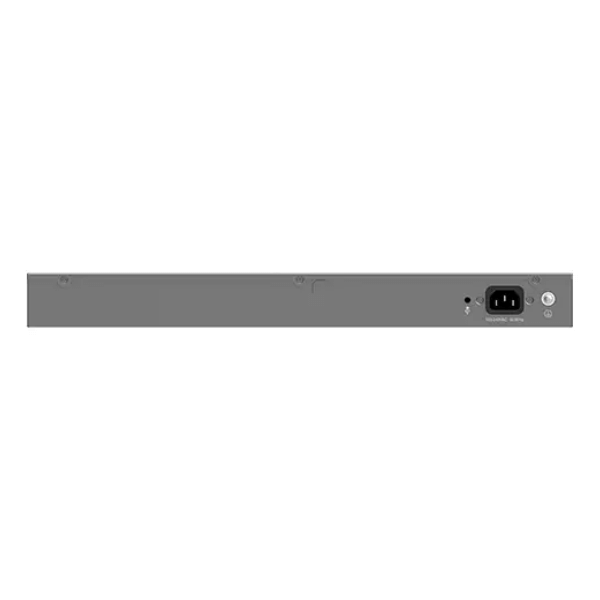

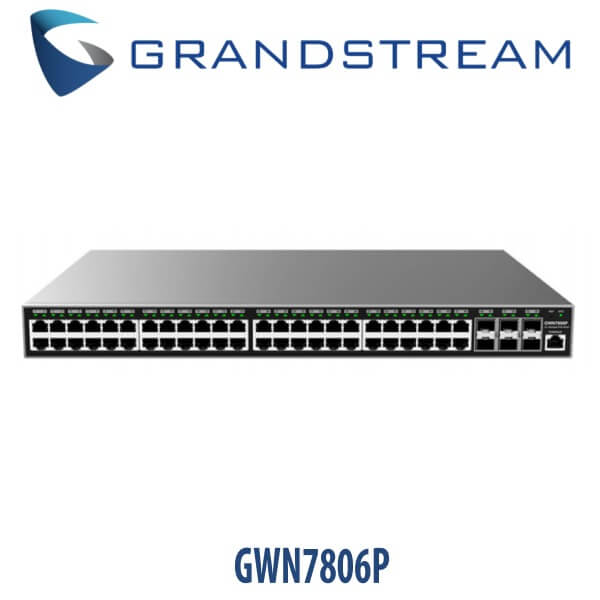

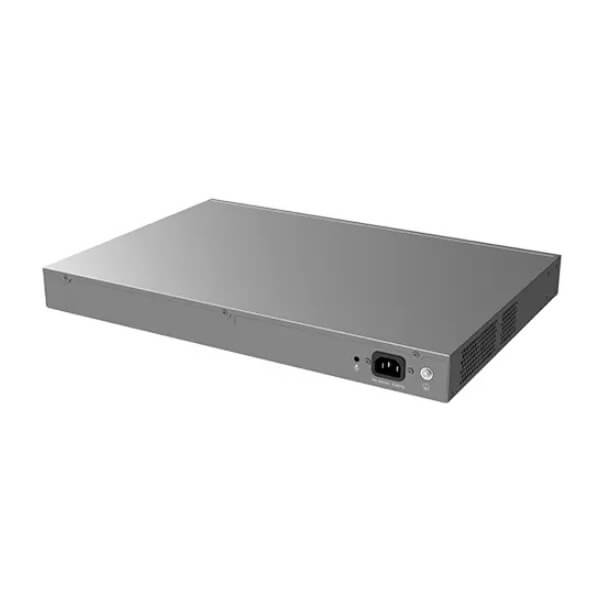

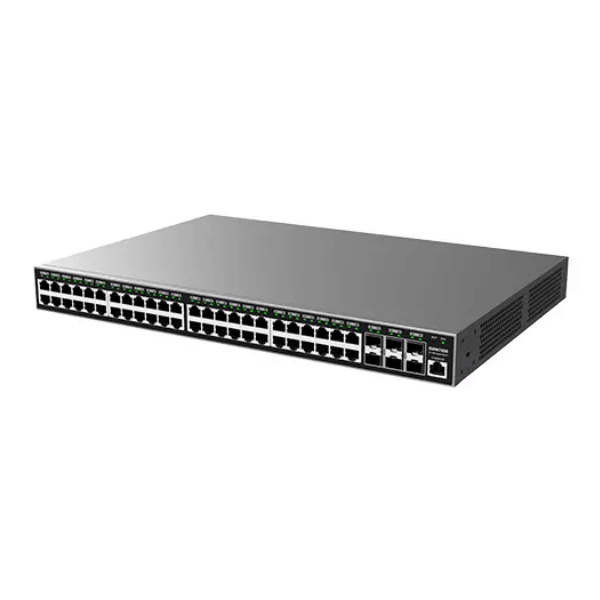

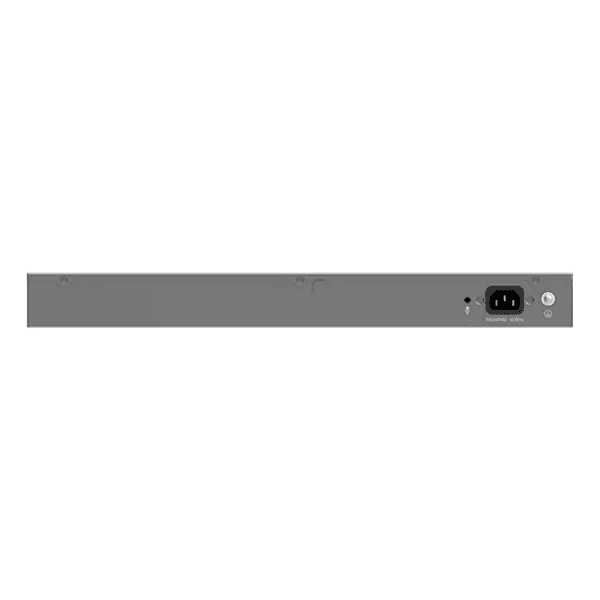

Featuring the Grandstream GWN7806P Dubai, an innovative Layer 2+ network switch that showcases a setup of 48 RJ45 Gigabit Ethernet ports, each bolstered with Power Over Ethernet (POE) capability. This remarkable feature simplifies the task of connecting and energizing a diverse range of devices, spanning from VOIP phones to IP cameras, all through a singular switch unit. Moreover, it incorporates six SFP+ ports thoughtfully designed for rapid fiber connections. Operating as a POE switch, it proudly holds a substantial power reservoir of 400 W, facilitating the transmission of up to 30 W of power through Ethernet cables to the interconnected devices. The incorporation of intelligent power control ensures precise power distribution, tailored to the specific requirements of each linked endpoint. This budget-friendly switch stands as a straightforward yet robust solution for establishing a high-quality enterprise network.

Functioning as a managed network switch, the Grandstream GWN7806P Dubai effectively tackles network congestion by providing Gigabit Ethernet connectivity to all linked devices. With an impressive total switching capacity of 216 Gbps, it guarantees uninterrupted data flow. Primarily designed to cater to small-to-medium businesses, the switch introduces advanced features including VLAN and QoS capabilities, facilitating traffic segregation and optimizing overall network performance. The inclusion of various security features, such as IP Source Guard and DoS protection, actively safeguards the network against malicious threats. Moreover, the Grandstream GWN7806P Dubai offers the added benefit of stacking capabilities, allowing for the stacking of up to 16 compatible switches, thereby enhancing scalability and flexibility.

Grandstream GWN7806P Features

• 48 Gigabit Ethernet ports and 6 Gigabit SFP+ ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
• Supports deployment in IPv6 and IPv4 networks
• Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and  on-premise Wi-Fi management platform
• Built-in QoS allows for prioritization of network traffic
• Supports stacking for easy management of up to 16 switches in one interface while creating redundant backup between multiple devices

Product Highlights

Powerful Processing Capabilities

Grandstream GWN7806P Dubai Layer 2+ managed network switch comes with powerful processing capabilities to ensure a high-performance backbone for any network.

• Unicast routing via ACL for data communication routing between different network segments. Supports DHCP Server and Relay to assign IP addresses to hosts within the network.
• GVRP for VLAN dynamic distribution, registration, and attribute propagation, to reduce the amount of manual configuration and ensure the correctness of configuration.
• QoS, including Port Priority, Priority Mapping, Queue Scheduling, Traffic Shaping, and Rate Limit.
• ACL is used to recognize the filtering of data packets by configuring matching rules, processing operations and time schedule, and providing flexible security access control policies.

Specifications

Network Protocol

IPv4, IPv6, IEEE 802.3, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x

Gigabit Ethernet Ports

48

Gigabit SFP Ports

6

PoE Ports (PoE Models Only)

48

Total PoE Output Power (PoE Models Only)

400W (30W per Port)

Total Non- Blocking Throughput

108Gbps

Switching Capability

216Gbps

Forwarding Rate

160.704Mpps

Switching

• 32K static, dynamic and filtering MAC addresses
• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
• VLAN virtual interface
• GVRP (pending)
• 27 link aggregation
• Spanning tree, 64 instances for STP/RSTP/MSTP Routing Static

Security

• User hierarchical management and password protection, HTTPS, SSH,Telnet
• 802.1X authentication
• AAA authentication including RADIUS, TACACS+
• Storm control
• Port isolation, port security, sticky MAC
• Filtering MAC address
• IP source guard, DoS attack prevention, ARP inspection,
• DHCP Snooping
• Loop protection including BPDU protection, root protection(pending), and loopback protection(pending)
• Kensington Security Slot (Kensington Lock) support.
