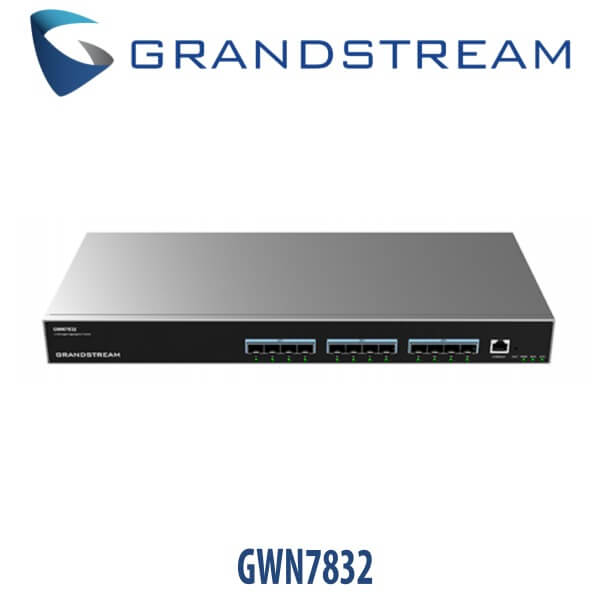

Grandstream GWN7832 Layer-3 Managed Network Switch Dubai
The Grandstream GWN7832 Dubai switches are advanced managed switches designed for enterprises seeking to establish secure, scalable, and high-performance business networks. These switches are fully manageable and support maximum capacity. They offer advanced VLAN for flexible traffic segmentation, sophisticated QoS for prioritizing network traffic, and IGMP/MLD Snooping for optimizing network performance. In addition, they provide comprehensive security features to protect against potential attacks. The management of Grandstream GWN7832 Dubai switches can be done through various methods, including the local Web user interface and CLI (command line interface) of the switch. This series is compatible with GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. With end-to-end quality of service, customizable security settings, and the ability to handle large-scale deployments, the Grandstream GWN7832 Dubai is the optimal choice for medium-to-large enterprises in need of reliable Layer 3 aggregation switches.
Grandstream GWN7832 Core Features
- 12 x SFP+
- Supports deployment in IPv6 and IPv4 networks.
- ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
- Built-in QoS allows for prioritization of network traffic
Additional Information
| Weight | 5.89 lbs |
| Dimensions | 17.32 × 7.87 × 1.73 in |
| Brand | Grandstream |
| Product Family | GWN-Cloud |
| Switch Type | Managed Switches |
| Number of Ports | 11-18 |
| Main Port Speed | 10G |
| Uplink Ports | 10G SFP+ |
| Layer Support | L3 |
| PoE Support | No |
| Redundant Power Supply | Yes |
Technical Specifications
GENERAL INFO :
- Model : GWN7832
- Box Contents :
- 1x GWN7832 Switch
- 1x 1.2m(10A) AC Cable
- 1x 25cm Ground Cable
- 4x Rubber Footpads
- 1x Power Cord Anti-Trip
- 2x Rack-Mounting Kits
- 8x Screws(KM 3*6)
- 1x Quick Installation Guide
NETWORK PROTOCOL :
- IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE
802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x - Gigabit SFP+ Ports : 12
- Note : Support DAC Cable and must be ≤ 5m
- Maximum no. of Supported Modules :
- SM-10G : 12
- MM-10G : 12
- RJ45-10G : 6
- Note : RJ45-1G, RJ45-10G modules must be interval inserted
- Console : 1
- Integrated Power Supply : 60W
- External Redundant Power Supply( RPS) : 12V/60W
- Auxiliary Ports : 1x Reset Pinhole
- Forwarding Mode : Store-and-forward
- Total non-blocking throughput : 120Gbps
- Switching Capability : 240Gbps
- Forwarding Rate : 80.352Mpps
- Packet Buffer : 16Mb
- Network Latency : <4µs
