Grandstream GXW4104 Dubai UAE

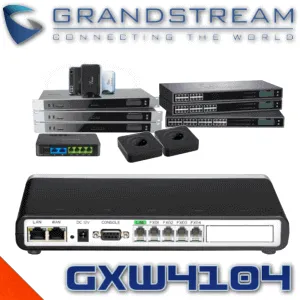

Grandstream GXW4104

The Grandstream GXW4104 is an FXO VoIP gateway with 4 Port Support. It Features flexible DTMF transmission methods, G.168 compliant Echo Cancelation and PTSN failover on power failure. Its a SIP Supported VoIP Gateway widely compatible with many IP PBX Systems and Soft switches. It provides easy web-based configuration and Auto Provisioning.

Description

Grandstream GXW4104 FXO Gateway in Detail

The Grandstream GXW4104  Analog Gateway is tested and designed for full interoperability with leading IP- Brands and soft-switches. GXW4104 is an advanced FXO VoIP Gateway with integrated router and dual 10M/100M network port. This Gateway Feature fax support and comprehensive voice codec support.

The Grandstream GXW4104 Gateway also contains a video surveillance port which enables you to include IP surveillance cameras video feed into your network. Strong security protection, easy configuration make it a perfect choice for IP PBX Systems and traditional analog PBX system to expands its voice line capability.

The Grandstream GXW4104 Analog FXO Gateway feature .168 echo cancellation support ensure the superb voice. It has four inbuilt FXO Ports enable any business to configure IP communications solution and give the leverage to use VoIP IP Technology to their current office phone system.

GWN4104 Gateway converts SIP/ RTP VoIP calls to traditional PSTN calls. You can use 4 PSTN lines to your IP PBX Phone system. Businesses with branch offices can find easy ways of integrated communication solution with GWN4104 Gateway. The Deployment of this VoIP Gateway is an easy task with HTTP and TFTP provisioning options. Moreover, it offers failover function pass through when the event of power failure.  Large caller ID formats support and flexible DTMF transmission method ensure wide system compatibility. The Codec Support includes G.711, G.729A/B/E, G.728,iLBC G.723, and G.726 (40/32/24/16).

grandstream gxw4104 voip gateway



GXW4104 FXO Gateway Specification

  • 4RJ11 FXO ports
  • SIP (RFC 3261) IP Signaling
  • Independent SIP account per port
  • Dual RJ45 ports 10M/100Mbps
  • Modem detection & auto-switch G.711
  • G.168 compliant Echo Cancelation
  • PTSN failover on power failure
  • Audio Codec -G.711, G.723, G.726 (40/32/24/16), G.729A/B/E, G.728, iLBC
  • Fax over IP
  • QoS-  Diffserve, TOS, 802.1P/Q VLAN tagging
  • TFTP and HTTP Provisioning
  • HTTPS, Telnet, Web browser Management
  • Wall mount and desktop
