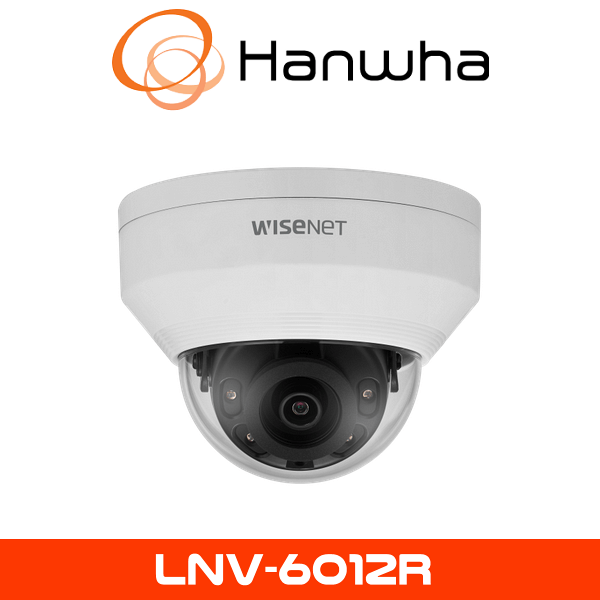

Hanwha LNV-6012R Vandal Dome Camera



Hanwha LNV-6012R

The Hanwha LNV-6012R is a high-quality 2MP IR vandal-resistant dome camera engineered to provide secure, detailed video surveillance in demanding environments. This camera integrates a 2-megapixel image sensor coupled with a fixed 2.8mm lens, ensuring wide-area coverage and high-definition resolution for superior clarity and accuracy in monitoring activities.

Description

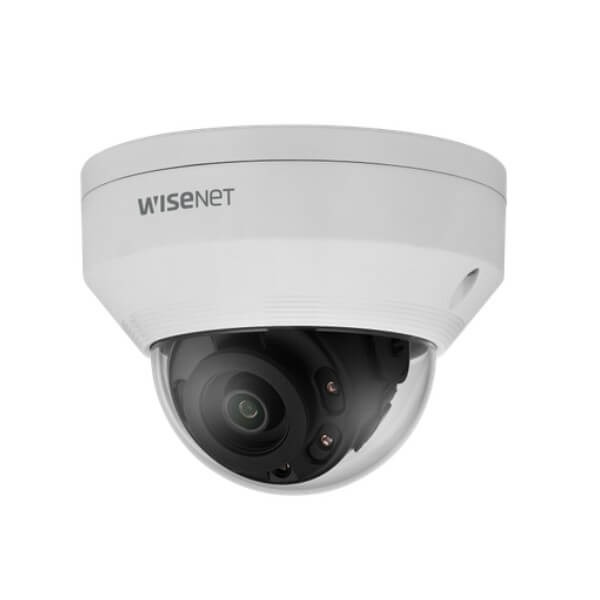

Hanwha LNV-6012R Vandal Dome Camera

Hanwha LNV-6012R Overview The Hanwha LNV-6012R is a powerful, vandal-resistant dome camera designed for reliable and detailed surveillance in harsh environments. Combining superior image quality, rugged build quality, and intelligent security features, the LNV-6012R is a robust solution for modern security demands.

Wide-Angle Coverage with Fixed Lens : The camera is equipped with a fixed 2.8mm lens, offering an expansive horizontal viewing angle of approximately 113°. This wide-angle coverage makes the LNV-6012R perfect for comprehensive surveillance of open spaces, entrances, hallways, and public areas, maximizing visibility and monitoring effectiveness.

Infrared Night Vision : Integrated IR LEDs allow the Hanwha LNV-6012R to deliver clear and detailed images at night or in low-light conditions, providing effective infrared illumination up to 20 meters. This capability ensures constant and uninterrupted surveillance, vital for monitoring critical areas 24/7.

Advanced WDR Technology : The LNV-6012R incorporates Wide Dynamic Range (WDR) at 120dB, efficiently managing scenes with contrasting lighting conditions. By balancing bright and dark areas within a frame, WDR ensures visibility and clarity in environments with intense backlighting, shadows, or reflections.

Edge Storage Capability: The Hanwha LNV-6012R features an onboard micro SD/SDHC/SDXC card slot, allowing direct edge recording. This ensures continuous recording even in situations of network downtime or interruptions, safeguarding critical surveillance data.

Intelligent Video Analytics The LNV-6012R camera integrates advanced analytics to proactively enhance security measures, including:

  • Motion Detection: Alerts security teams to movement in predefined zones.
  • Intrusion Detection: Rapidly identifies unauthorized access.
  • Tampering Detection: Notifies users of physical interference with the camera.

These intelligent features significantly enhance incident detection and management, reducing false alarms and improving security responses.

Key Features
• Maximum 2MP resolution
• Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on)
• 2.8mm fixed focal
• Maximum 30fps@2MP all resolutions (H.264)
• H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Tampering, Motion detection
• Micro SD/SDHC memory slot (32GB), PoE
• Hallway view (90°/270°), WiseStreamII support
• IR viewable length 30m(98.43ft)
• IP66, IK10 support

SPECIFICATION

Video
Imaging Device 1/2.8″ CMOS
Resolution 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360
Max. Framerate H.264: Max. 30fps/25fps(60Hz/50Hz)(WDR off)
H.264: Max. 15fps/12fps(60Hz/50Hz)(WDR on)
MJPEG: Max. 10fps(@2MP Max. 2fps)
Min. Illumination Color: 0.03Lux(F2.0, 1/30sec)
BW : 0Lux (IR LED on)
Lens
Focal Length (Zoom Ratio) 2.8mm fixed focal
Max. Aperture Ratio F2.0
Angular Field of View H: 114° / V: 62° / D: 135°
Min. Object Distance 0.5m(1.64ft)
Focus Control Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
Operational
Camera Title Displayed up to 15 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, rectangler zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Motion detection, Tampering
Alarm Triggers Analytics
Alarm Events When alarm trigger occurred
– File upload(image) : e-mail/FTP
– Notification : e-mail
– Recording : SD/SDHC/SDXC or NAS recording at event triggers
Light Type IR LED (850nm)
Light Viewable Length 30m(98.43ft)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.264: Main/Baseline/High, MJPEG
Smart Codec WiseStreamⅡ
Bitrate Control H.264: CBR or VBR
MJPEG: VBR
Streaming Unicast(6 users) / Multicast
Multiple streaming (Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Security
OS / Firmware Protect Firmware encryption
User authentication Digest Authentication, Prevent brute-force attack
Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication HTTPS, SRTP, WSS(Websocket secure)
Access Control Access control based on IP address
Data Protect Authentication information encryption, ZIP compression encryption
Audit User Access/System/Event log management
Device ID Device Certificate(Hanwha Private Root CA)
Secure Storage SDcard partition encrypt
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch
Edge Storage Micro SD/SDHC 1slot 32GB
Memory 512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -30°C~+55°C(-22°F~+131°F) / 0~90% RH
* Start up should be done at above -20°C(-4°F)
Storage Temperature / Humidity -30°C +55°C(-22°F ~ +131°F) / 0~90% RH
Certification IP66, IK10
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption Max 6.4W, Typical 5.0W
Mechanical
Color / Material White / Plastic, Aluminum
RAL Code RAL9003
Product Dimensions / Weight ø120.3×91.7mm(ø4.74×3.61″), 410g
Hanging Mount (Dome) SBP-122HMW
Backbox SBV-120GW
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 25.1m(82.28ft)
Observe (63PPM/ 19PPF) 10.0m(32.91ft)
Recognize (125PPM/ 38PPF) 5.0m(16.46ft)
Identify (250PPM/ 76PPF) 2.5m(8.23ft)
