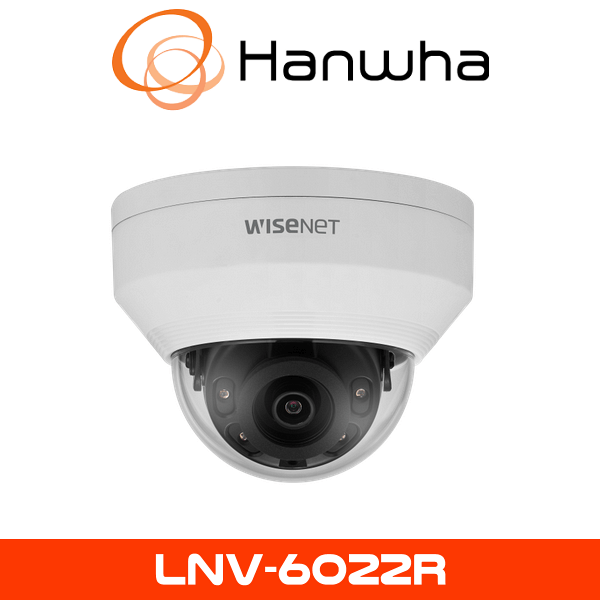

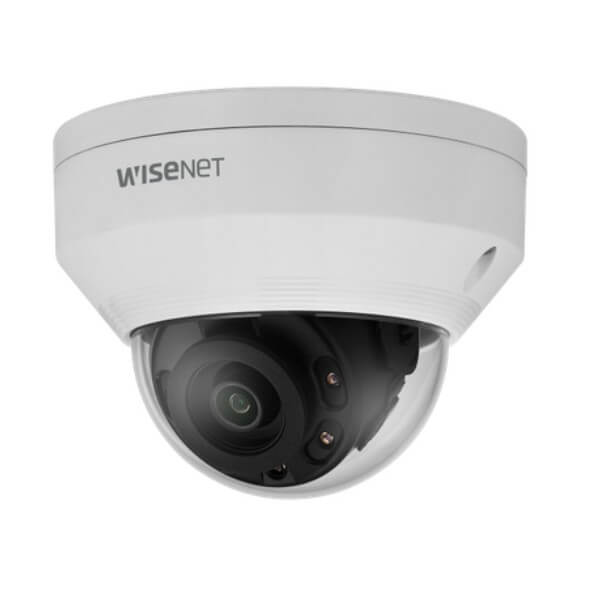

Hanwha LNV-6022R Vandal Dome Camera
Hanwha LNV-6022R Overview The Hanwha LNV-6022R vandal-resistant dome camera is designed for exceptional surveillance performance in environments prone to challenging conditions. With its robust build, advanced imaging technology, and intelligent video analytics, it stands as a reliable choice for versatile security applications.
Equipped with robust infrared LEDs:The LNV-6022R offers clear night-time surveillance extending up to 25 meters. Its smart IR technology adapts dynamically to varying illumination, providing seamless day-to-night video quality. With Wide Dynamic Range (120dB WDR), the camera effectively balances contrasting light conditions, making it particularly useful in areas exposed to strong lighting variations, such as entrances, exits, and windows.
Designed for durability:The LNV-6022R features IP66-rated weatherproof protection and IK10 vandal resistance, ensuring reliable performance in harsh weather and high-risk areas. This resilience makes it ideal for deployment in outdoor settings, public transport stations, educational institutions, and retail environments susceptible to vandalism and harsh environmental conditions.
Fixed Lens Clarity:The camera’s fixed 4mm lens provides an ideal horizontal viewing angle (87°), offering balanced coverage suited for entrances, corridors, parking areas, and critical security zones. This fixed-lens configuration ensures consistent monitoring of key areas without compromising image quality.
Night Surveillance Capabilities:The integrated powerful IR LEDs enable the LNV-6022R to deliver effective night-time surveillance up to 25 meters. This camera’s infrared technology ensures clear video recording even in complete darkness, significantly enhancing security effectiveness in low-light scenarios.
Wide Dynamic Range: (WDR) Utilizing advanced 120dB Wide Dynamic Range (WDR), the Hanwha LNV-6022R effectively handles challenging lighting conditions, ensuring detailed visibility across scenes with high contrast. This feature is particularly beneficial in environments like doorways and windows, where lighting extremes are common.
Advanced Intelligent Analytics The LNV-6022R incorporates intelligent security features, including:
- Motion Detection: Rapidly identifies and alerts when movement occurs.
- Tampering Detection: Alerts operators to camera interference or obstruction.
- Intrusion Detection: Notifies security teams about unauthorized entry or activity.
These intelligent features enhance proactive security management, reducing response times and enhancing the efficiency of security operations.
Bandwidth and Storage Efficiency:The LNV-6022R supports advanced video compression standards such as H.265, H.264, and MJPEG, significantly reducing data storage needs and bandwidth consumption. By leveraging the latest compression techniques, the camera ensures cost-effective and practical storage management.
Edge Storage Solution:The camera includes an integrated micro SD/SDHC/SDXC card slot, enabling local recording directly on the camera. This capability ensures uninterrupted surveillance even if network connectivity fails, ensuring the continuous capture of essential footage.
• Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on)
• 4.0mm fixed focal
• Maximum 30fps@2MP all resolutions (H.264)
• H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Tampering, Motion detection
• Micro SD/SDHC memory slot (32GB), PoE
• Hallway view (90°/270°), WiseStreamII support
• IR viewable length 30m(98.43ft)
• IP66, IK10 support
SPECIFICATION
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.264: Max. 30fps/25fps(60Hz/50Hz)(WDR off) H.264: Max. 15fps/12fps(60Hz/50Hz)(WDR on) MJPEG: Max. 10fps(@2MP Max. 2fps) |
| Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.0mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 85° / V: 46° / D: 99° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, rectangler zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering |
| Alarm Triggers | Analytics |
| Alarm Events | When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 30m(98.43ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.264: Main/Baseline/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch |
| Edge Storage | Micro SD/SDHC 1slot 32GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F~+131°F) / 0~90% RH * Start up should be done at above -20°C(-4°F) |
| Storage Temperature / Humidity | -30°C +55°C(-22°F ~ +131°F) / 0~90% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | Max 6.4W, Typical 5.0W |
| Mechanical | |
| Color / Material | White / Plastic, Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø120.3×91.7mm(ø4.74×3.61″), 410g |
| Hanging Mount (Dome) | SBP-122HMW |
| Backbox | SBV-120GW |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 42.4m(139.17ft) |
| Observe (63PPM/ 19PPF) | 17.0m(55.67ft) |
| Recognize (125PPM/ 38PPF) | 8.5m(27.83ft) |
| Identify (250PPM/ 76PPF) | 4.2m(13.92ft) |
