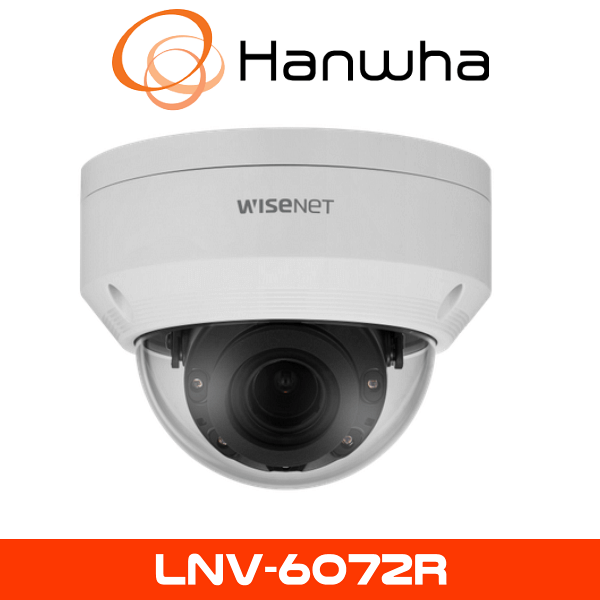

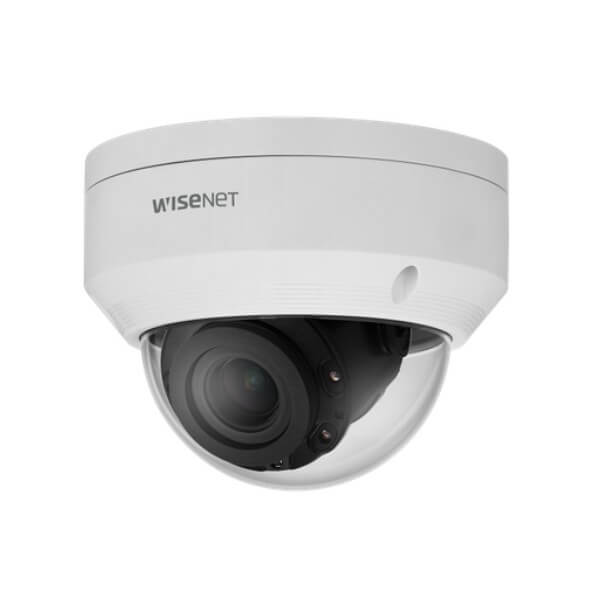

Hanwha LNV-6072R Vandal Dome Camera
The Hanwha LNV-6072R vandal-resistant dome camera offers comprehensive security surveillance by combining exceptional image clarity, versatile coverage, and robust construction.Ideal for challenging environments, this camera addresses modern security needs with its advanced technology and intelligent analytics.
Varifocal Lens for Flexibility:The LNV-6072R features a 3.2-10mm varifocal lens, allowing operators to adjust viewing angles between wide coverage and narrow focus according to specific surveillance requirements. This flexibility is particularly beneficial for monitoring critical areas, entrances, and locations requiring targeted observation and identification.
Infrared Night Vision: The camera is equipped with advanced infrared LEDs, offering clear night-time imaging up to 30 meters. Its smart infrared system automatically adjusts illumination levels, ensuring consistently clear video in varying lighting scenarios, including total darkness.
Advanced WDR Technology: The LNV-6072R camera incorporates a Wide Dynamic Range (WDR) of 120dB, enabling it to produce balanced images under complex lighting conditions. This feature significantly enhances video clarity in environments with significant contrast, such as entryways and outdoor scenes exposed to direct sunlight and shadows.
Edge Storage Functionality: The built-in micro SD/SDHC/SDXC card slot allows the LNV-6072R to store video directly on the camera, offering valuable redundancy and continuous surveillance capability even during network interruptions.
Key Features
• Color: 0.03Lux(F1.6, 1/30sec) BW : 0Lux (IR LED on)
• 3.2~10mm(3.1x) manual varifocal
• Maximum 30fps@2MP all resolutions (H.264)
• H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Tampering, Motion detection
• Micro SD/SDHC memory slot (32GB), PoE
• Hallway view (90°/270°), WiseStreamII support
• IR viewable length 30m(98.43ft)
• IP66, IK10 support
SPECIFICATION
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.264: Max. 30fps/25fps(60Hz/50Hz)(WDR off) H.264: Max. 15fps/12fps(60Hz/50Hz)(WDR on) MJPEG: Max. 10fps(@2MP Max. 2fps) |
| Min. Illumination | Color: 0.03Lux(F1.6, 1/30sec) BW : 0Lux (IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) manual varifocal |
| Max. Aperture Ratio | F1.6(Wide)~F2.9(Tele) |
| Angular Field of View | H: 109°(Wide)~33°(Tele) V: 58°(Wide)~18°(Tele) D: 132°(Wide)~38°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Manual |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, rectangler zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering |
| Alarm Triggers | Analytics |
| Alarm Events | When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 30m(98.43ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.264: Main/Baseline/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch |
| Edge Storage | Micro SD/SDHC 1slot 32GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F~+131°F) / 0~90% RH * Start up should be done at above -20°C(-4°F) |
| Storage Temperature / Humidity | -30°C +55°C(-22°F ~ +131°F) / 0~90% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | Max 6.4W, Typical 5.0W |
| Mechanical | |
| Color / Material | White / Plastic, Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø137.8×106.1mm(ø5.43×4.18″), 525g |
| Hanging Mount (Dome) | SBP-301HMW2 |
| Backbox | SBV-136BW |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 27.4m(89.85ft) / Tele: 128.8m(422.56ft) |
| Observe (63PPM/ 19PPF) | Wide: 11.0m(35.94ft) / Tele: 51.5m(169.02ft) |
| Recognize (125PPM/ 38PPF) | Wide: 5.5m(17.97ft) / Tele: 25.8m(84.51ft) |
| Identify (250PPM/ 76PPF) | Wide: 2.7m(8.99ft) / Tele: 12.9m(42.26ft) |
