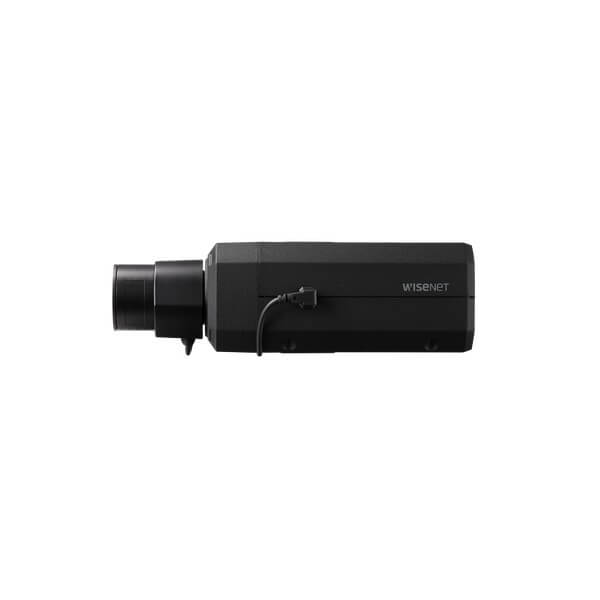

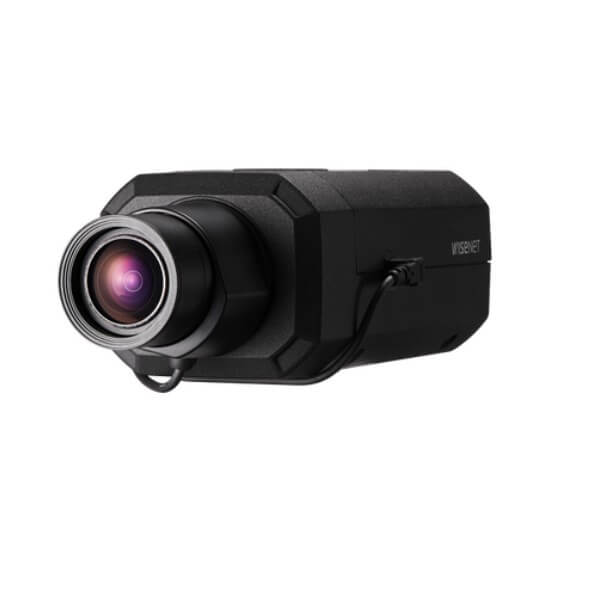

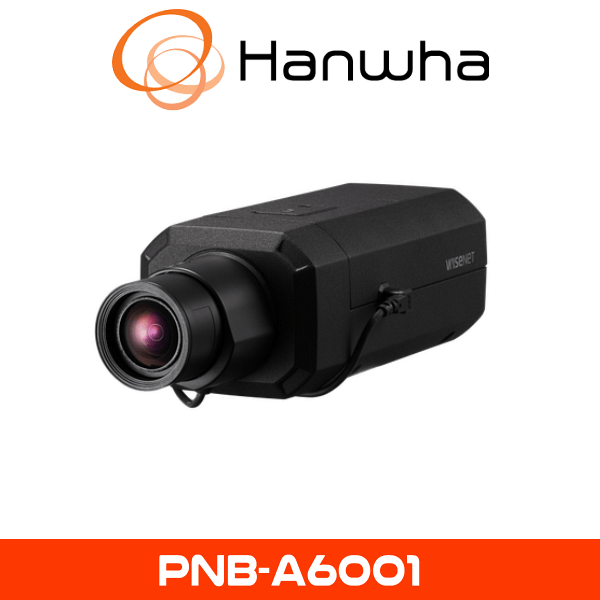

Hanwha PNB-A6001 AI CCTV Camera
The Hanwha PNB-A6001 AI CCTV Camera, previously recognized as Samsung CCTV, is a high-performance box camera designed for professional security applications. With AI-powered object detection, Full HD resolution, and flexible lens options, this camera provides high-precision monitoring for commercial and government security needs.
Full HD High-Resolution Imaging
The PNB-A6001 is equipped with a 2MP (1920 × 1080) sensor, ensuring clear and detailed video quality. The wide dynamic range (WDR) function enhances image visibility in challenging lighting conditions, minimizing glare and shadows.
AI-Powered Deep Learning Analytics
With AI-based object classification, the PNB-A6001 intelligently detects and categorizes humans, vehicles, and other objects, significantly reducing false alarms. Security operators can rely on motion detection, virtual line crossing, intrusion alerts, and loitering detection for real-time threat monitoring.
Customizable Lens Mount
Designed for flexible installations, the PNB-A6001 features a C/CS mount, allowing users to choose the best lens for their specific surveillance needs. This makes it ideal for applications requiring different focal lengths and viewing angles.
Optimized Storage and Bandwidth Efficiency
Utilizing H.265 video compression, the PNB-A6001 minimizes bandwidth usage and storage consumption while maintaining high-quality video output. This efficiency ensures longer recording durations and reduced operational costs.
Seamless Integration and Easy Installation
Supporting Power over Ethernet (PoE), the camera simplifies installation by combining power and data transmission in a single cable. ONVIF compliance ensures smooth integration with leading video management systems (VMS), offering maximum deployment flexibility.
Key Specifications:
- Resolution: 2MP Full HD (1920 × 1080)
- AI-powered analytics: Human/vehicle classification, motion detection, virtual line crossing, intrusion alerts
- Lens Compatibility: C/CS mount for flexible lens options
- Video Compression: H.265/H.264/MJPEG
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -10°C to +50°C (14°F to 122°F)
- Network Connectivity: Ethernet 10/100 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | |
| Imaging Device | 1/2″ CMOS |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.265/H.264: Max. 60/50fps(60Hz/50Hz, AI analytics on), Max. 120/100fps(60Hz/50Hz, AI analytics off) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.006Lux(F1.2, 1/30sec,30IRE) B/W : 0.0006Lux(F1.2, 1/30sec,30IRE), 30/25fps Color: 0.012Lux(F1.2, 1/60sec,30IRE) B/W : 0.0012Lux(F1.2, 1/60sec,30IRE), 60/50fps Color: 0.024Lux(F1.2, 1/120sec,30IRE) B/W : 0.0024Lux(F1.2, 1/120sec,30IRE), 120/100fps |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris, Manual, I-CS |
| Mount Type | C mount, CS mount |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | WiseNR Ⅱ(using AI engine) SSNRⅤ |
| Digital Image Stabilization | Stabilization Support(built-in gyro sensor) |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 6ea, rectangle zones – Color: Gray/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control based on AI engine |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Classified object type: Person/Face/Vehicle/License plate Attributes: Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color) Support BestShot per object Analytics events based on AI engine – Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip&Fall detection Analytics events – Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) Support WiseDetector for Adding custom objects *Some of the video analytics only works with people and vehicle detection |
| Business Intelligence | People/Vehicle/Crowd counting, Queue management, Heatmap based on AI engine |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | 2 configurable I/O ports, DC 12V output(Max. 50mA) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred – File upload(image): e-mail/FTP – Notification: e-mail – Recording: SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover: PTZ preset, send message by HTTP/HTTPS/TCP – Audio clip playback – MQTT: publication |
| Audio In | Selectable(mic in/line in/built-in mic) |
| Audio Out | Line out |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000 BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 6 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform – WiseAI application included(Analytic based on AI, Business intelligence) |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authenticaton, Prevent brute-force attack |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS (WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate (Hanwha Techwin Root CA) |
| Secure Storage | TPM, SDcard partition encrypt |
| Security Certificate | TPM with FIPS 140-2 level 2 |
| General | |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slots 512GB |
| Memory | 4096MB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Input Voltage | PoE+(IEEE802.3at), 12VDC |
| Power Consumption | PoE+: Max 17.5W, Typ 13.7W 12VDC: Max 14W, Typ 10.6W |
| Mechanical | |
| Color / Material | Body: Black / Aluminum |
| Product Dimensions / Weight | 81x67x165mm(3.19×2.64×6.48″), Weight : 0.88kg(1.94lb) |
