Description

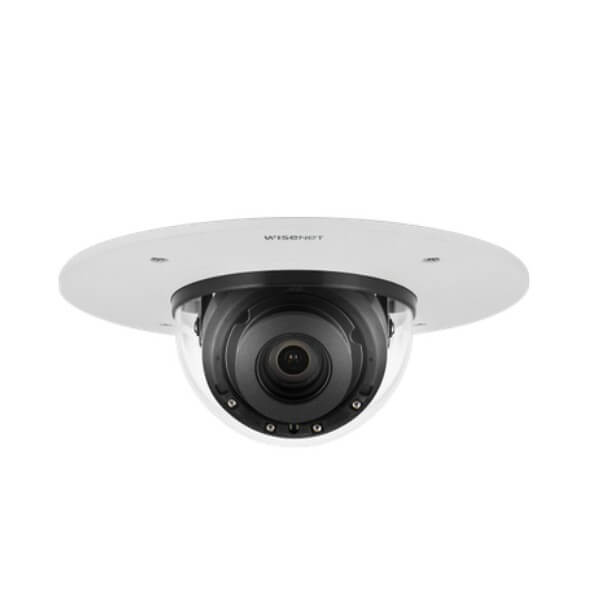

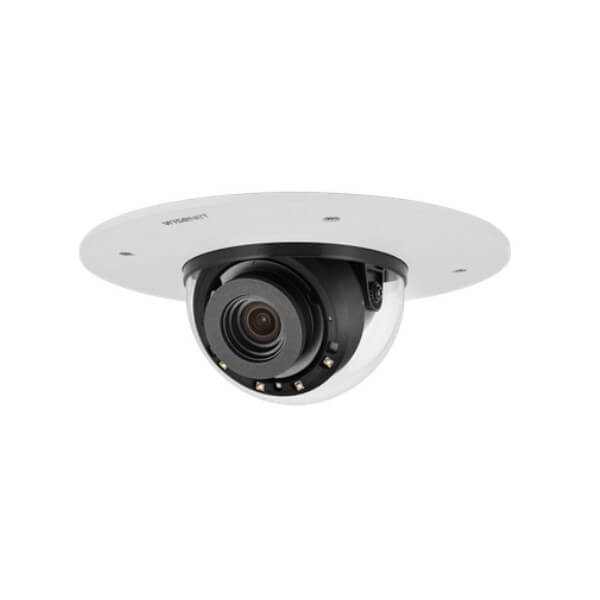

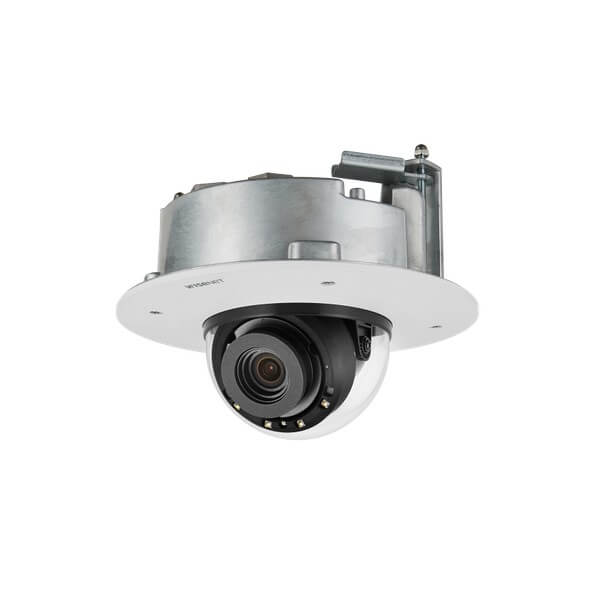

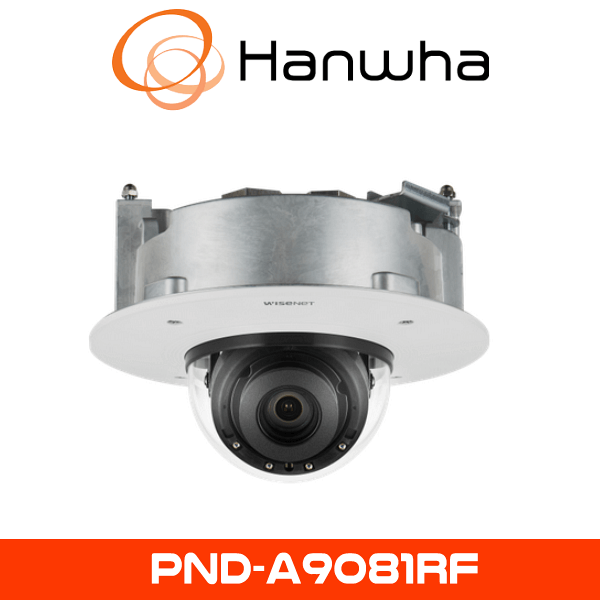

Hanwha PND-A9081RF AI CCTV Camera
The Hanwha PND-A9081RF AI CCTV Camera, previously recognized as Samsung CCTV, is a cutting-edge indoor security solution designed for 360-degree surveillance. Equipped with an ultra-wide-angle fisheye lens, deep learning-based AI analytics, and 4K ultra-HD resolution, this camera is ideal for high-risk environments requiring full area coverage without blind spots.
4K Ultra-High-Resolution Imaging
The PND-A9081RF features an 8MP (4K) sensor, delivering ultra-HD image clarity for precise monitoring. This high resolution ensures that security personnel can zoom in on details without losing image quality, making it ideal for forensic investigations and large-area monitoring.
AI-Powered Deep Learning Analytics
With integrated AI-driven analytics, the PND-A9081RF can intelligently distinguish between humans, vehicles, and objects, reducing false alarms. Advanced security features such as motion detection, virtual line crossing, loitering alerts, and intrusion detection enhance situational awareness.
360° Fisheye Wide-Angle Coverage
The built-in fisheye lens provides full-area monitoring with a 360° field of view, eliminating blind spots and ensuring complete coverage of indoor spaces such as retail stores, banks, and corporate offices.
Smart IR Night Vision
Equipped with built-in IR LEDs, the camera delivers clear night vision up to 50 meters (164 feet), ensuring reliable surveillance in complete darkness. Smart IR technology prevents overexposure, maintaining balanced illumination in varying lighting conditions.
Durable Vandal-Resistant Housing
The PND-A9081RF features an IK10-rated impact-resistant dome and a rugged indoor design, making it resistant to tampering and damage in high-security environments such as banks, warehouses, and transportation hubs.
Optimized Bandwidth and Storage Efficiency
Utilizing H.265 video compression, the PND-A9081RF optimizes bandwidth usage and storage requirements while maintaining ultra-HD video quality. This ensures cost-effective and extended video retention.
Easy Installation and Seamless Integration
With Power over Ethernet (PoE) support, installation is simplified by requiring only a single cable for power and data transmission. The ONVIF compliance ensures seamless integration with leading video management systems (VMS), making deployment flexible and efficient.
Key Specifications:
- Resolution: 4K Ultra HD (3840 × 2160, 8MP)
- AI-powered analytics: Human/vehicle classification, motion detection, virtual line crossing, loitering alerts, intrusion detection
- Fisheye lens: 360° panoramic view for full-area coverage
- Infrared Night Vision: Up to 50m (164 feet) with smart IR
- Video Compression: H.265/H.264/MJPEG
- Vandal-Resistant Rating: IK10 for high-impact protection
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -10°C to +50°C (14°F to 122°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | |
| Imaging Device | 1/1.8″ CMOS |
| Resolution | 3840×2160, 3072×1728, 2592×1944, 2688×1520, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024,1280×960, 1280×720, 1024×768, 800 x 600, 800 x 448, 720 x 576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.5~10mm(2.2x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide)~F2.65(Tele) |
| Angular Field of View | H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | P iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~360˚ / -45˚~85˚ / 0˚~355˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Digital Noise Reduction | WiseNR Ⅱ(using AI engine) SSNRⅤ |
| Digital Image Stabilization | Stabilization Support(built-in gyro sensor) |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 6ea, rectangle zones – Color: Gray/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control based on AI engine |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Classified object type: Person/Face/Vehicle/License plate Attributes: Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color) Support BestShot per object Analytics events based on AI engine – Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip&Fall detection Analytics events – Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) Support WiseDetector for Adding custom objects *Some of the video analytics only works with people and vehicle detection |
| Business Intelligence | People/Vehicle/Crowd counting, Queue management, Heatmap based on AI engine |
| Alarm I/O | 2 configurable I/O ports, DC 12V output(Max. 50mA) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred – File upload(image): e-mail/FTP – Notification: e-mail – Recording: SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover: PTZ preset, send message by HTTP/HTTPS/TCP – Audio clip playback – MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED (850nm) |
| IR Viewable Length | WiseIR 30m(98.42ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000 BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 6 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform – WiseAI application included(Analytic based on AI, Business intelligence) |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authenticaton, Prevent brute-force attack |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS (WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate (Hanwha Techwin Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slots 512GB |
| Memory | 4096MB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -25°C ~ +50°C (-13°F ~ +122°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP52, IK10, Plenum rate |
| Input Voltage | PoE+(IEEE802.3at), 12VDC |
| Power Consumption | PoE+: Max 20.00W, typical 16.00W 12VDC: Max 17.70W, typical 14.00W |
| Mechanical | |
| Color / Material | White / Aluminum, Hard-coated dome bubble |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø205x163mm(8.07×4.92″), Weight : 1.95Kg (4.30lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 62.2m(204.04ft) / Tele: 185.4m(608.31ft) |
| Observe (63PPM/ 19PPF) | Wide: 24.9m(81.62ft) / Tele: 74.2m(243.32ft) |
| Recognize (125PPM/ 38PPF) | Wide: 12.4m(40.81ft) / Tele: 37.1m(121.66ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.2m(20.40ft) / Tele: 18.5m(60.83ft) |
