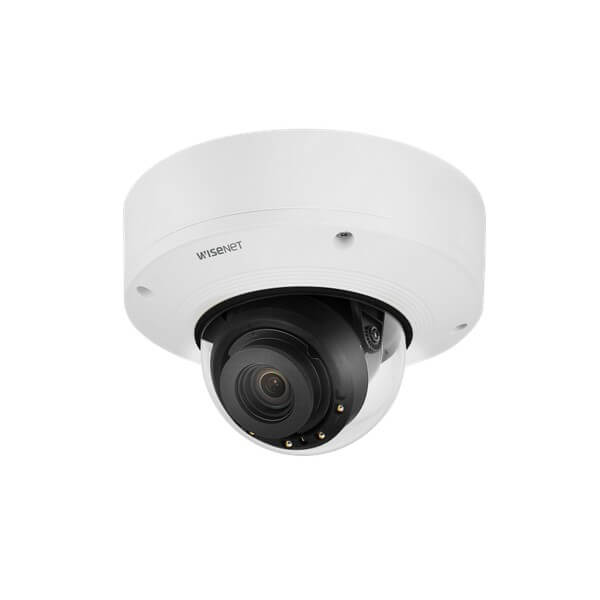

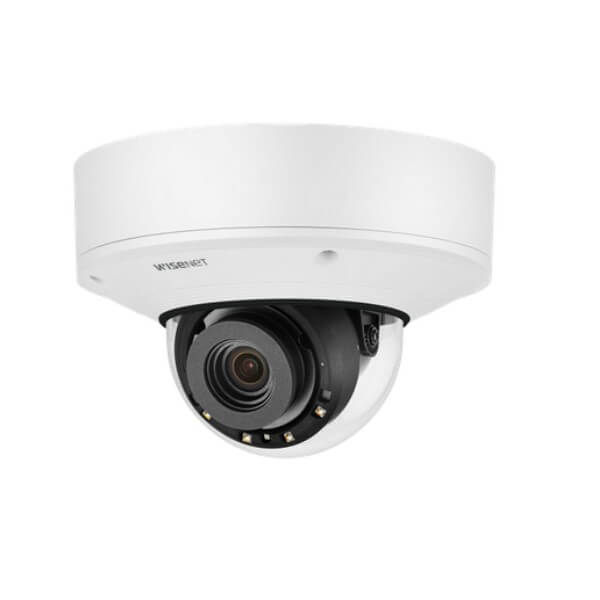

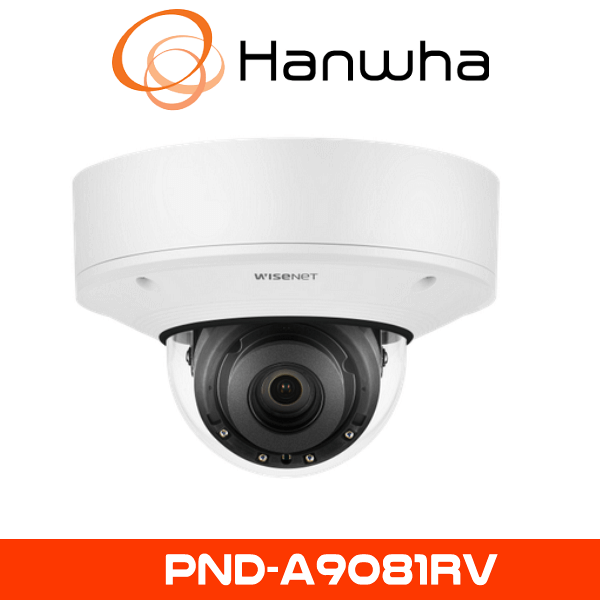

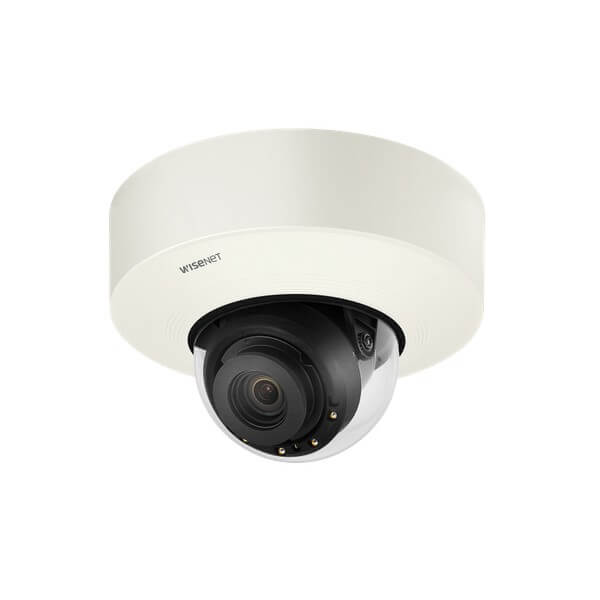

Hanwha PND-A9081RV AI CCTV Camera
The Hanwha PND-A9081RV AI CCTV Camera, previously recognized as Samsung CCTV, is an advanced indoor dome security camera featuring AI-driven analytics and 4K ultra-high-resolution imaging. Designed for precision monitoring in commercial and high-security environments, this camera ensures clear and intelligent surveillance with its deep learning capabilities and IR night vision.
4K Ultra-High-Resolution Imaging
Equipped with an 8MP (4K) sensor, the PND-A9081RV captures exceptional image clarity, enabling operators to monitor detailed video footage and zoom in on crucial areas without loss of quality. This makes it ideal for forensic investigations and high-precision security monitoring.
AI-Driven Deep Learning Analytics
The PND-A9081RV integrates AI-based analytics for real-time object classification, distinguishing between humans, vehicles, and objects. It enhances security monitoring with advanced features such as motion detection, virtual line crossing, loitering alerts, and intrusion detection, reducing false alarms.
Smart IR Night Vision
With built-in IR LEDs, the camera delivers high-quality night vision up to 50 meters (164 feet), ensuring detailed image capture even in complete darkness. The smart IR function adjusts illumination to prevent overexposure and improve visibility in low-light conditions.
Rugged and Vandal-Resistant Housing
Designed for durability, the PND-A9081RV features an IK10-rated vandal-resistant dome and a robust indoor design, making it resistant to impacts and tampering. This ensures reliability in high-security environments such as banks, retail stores, and corporate buildings.
Optimized Bandwidth and Storage Efficiency
Utilizing H.265 video compression, the PND-A9081RV optimizes bandwidth consumption and storage usage while preserving high-definition video quality. This efficiency supports extended recording durations and cost-effective video management.
Easy Installation and Seamless Integration
With Power over Ethernet (PoE) support, the camera simplifies installation by requiring only a single cable for power and data transmission. The ONVIF compliance ensures smooth integration with leading video management systems (VMS), making it flexible for deployment.
Key Specifications:
- Resolution: 4K Ultra HD (3840 × 2160, 8MP)
- AI-powered analytics: Human/vehicle classification, motion detection, virtual line crossing, loitering alerts, intrusion detection
- Infrared Night Vision: Up to 50m (164 feet) smart IR
- Video Compression: H.265/H.264/MJPEG
- Vandal-Resistant Rating: IK10 for high-impact protection
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -10°C to +50°C (14°F to 122°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | |
| Imaging Device | 1/1.8″ CMOS |
| Resolution | 3840×2160, 3072×1728, 2592×1944, 2688×1520, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024,1280×960, 1280×720, 1024×768, 800 x 600, 800 x 448, 720 x 576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.5~10mm(2.2x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide)~F2.65(Tele) |
| Angular Field of View | H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | P iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~360˚ / -45˚~85˚ / 0˚~355˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Digital Noise Reduction | WiseNR Ⅱ(using AI engine) SSNRⅤ |
| Digital Image Stabilization | Stabilization Support(built-in gyro sensor) |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 6ea, rectangle zones – Color: Gray/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control based on AI engine |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Classified object type: Person/Face/Vehicle/License plate Attributes: Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color) Support BestShot per object Analytics events based on AI engine – Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip&Fall detection Analytics events – Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) Support WiseDetector for Adding custom objects *Some of the video analytics only works with people and vehicle detection |
| Business Intelligence | People/Vehicle/Crowd counting, Queue management, Heatmap based on AI engine |
| Alarm I/O | 2 configurable I/O ports, DC 12V output(Max. 50mA) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred – File upload(image): e-mail/FTP – Notification: e-mail – Recording: SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover: PTZ preset, send message by HTTP/HTTPS/TCP – Audio clip playback – MQTT: publication |
| Audio In | Selectable(mic in/line in/built-in mic) |
| Audio Out | Line out |
| Light Type | IR LED (850nm) |
| IR Viewable Length | WiseIR 30m(98.42ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000 BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 6 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform – WiseAI application included(Analytic based on AI, Business intelligence) |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authenticaton, Prevent brute-force attack |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS (WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate (Hanwha Techwin Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser : MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 2slots 512GB |
| Memory | 4096MB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -25°C ~ +50°C (-13°F ~ +122°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP52, IK10 |
| Input Voltage | PoE+(IEEE802.3at), 12VDC |
| Power Consumption | PoE+: Max 20.00W, typical 16.00W 12VDC: Max 17.70W, typical 14.00W |
| Mechanical | |
| Color / Material | White / Aluminum, Hard-coated dome bubble |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø160x125mm(6.30×4.92″), Weight : 1.60Kg (3.53lb) |
| Compatible Conduit hole / Gangbox | 1/2″(M20) single, double, 4″octagon, 4″square |
| Hanging Mount (Dome) | SBP-167HMW |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 62.2m(204.04ft) / Tele: 185.4m(608.31ft) |
| Observe (63PPM/ 19PPF) | Wide: 24.9m(81.62ft) / Tele: 74.2m(243.32ft) |
| Recognize (125PPM/ 38PPF) | Wide: 12.4m(40.81ft) / Tele: 37.1m(121.66ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.2m(20.40ft) / Tele: 18.5m(60.83ft) |
