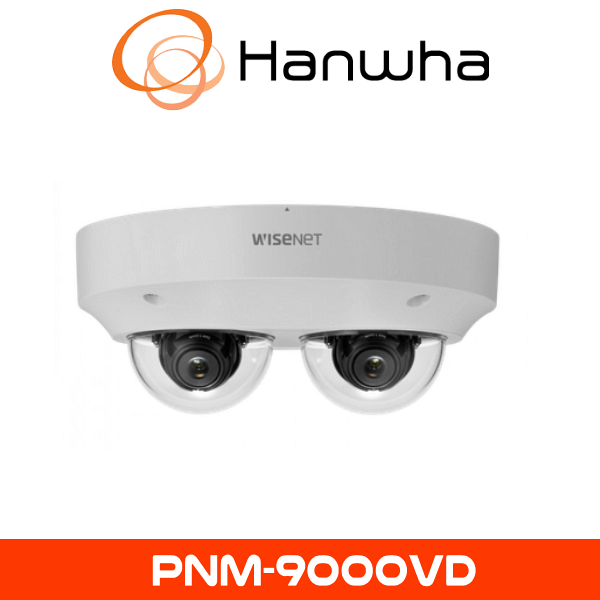

Hanwha PNM-9000VD Multi-Directional CCTV Camera



Hanwha PNM-9000VD Multi-Directional CCTV

Hanwha PNM-9000VD Multi-Directional CCTV Camera delivers dual 5MP ultra-HD resolution, AI-powered object classification, and a vandal-resistant housing for 360° panoramic surveillance. Ideal for smart city monitoring, perimeter security, and industrial facilities.

Description

Hanwha PNM-9000VD Multi-Directional CCTV Camera

The Hanwha PNM-9000VD Multi-Directional CCTV Camera, previously recognized as Samsung CCTV, is a high-performance surveillance solution designed for wide-area security monitoring. Featuring dual 5MP sensors, deep learning AI analytics, and a vandal-resistant design, this camera ensures optimal security coverage for complex environments.

Dual 5MP Ultra-High-Resolution Imaging

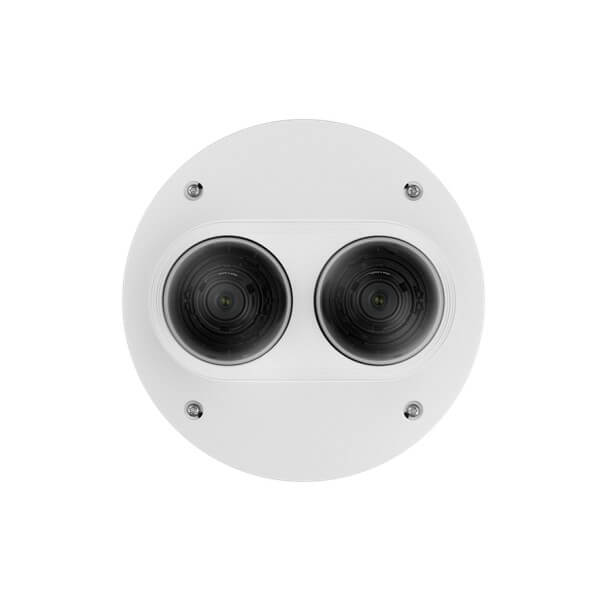

The PNM-9000VD features two 5MP image sensors, providing high-resolution panoramic imaging with superior clarity. This setup allows operators to monitor multiple angles simultaneously, reducing blind spots and enhancing situational awareness.

AI-Powered Deep Learning Analytics

Integrated deep learning AI analytics enable the camera to distinguish between humans, vehicles, and objects, minimizing false alarms and improving real-time security monitoring. Advanced detection features include motion tracking, intrusion detection, loitering alerts, and virtual line crossing.

360° Multi-Directional Coverage

The multi-sensor capability of the PNM-9000VD allows for customizable viewing angles, making it ideal for locations requiring full-area monitoring such as parking lots, intersections, and commercial complexes.

Rugged Weatherproof and Vandal-Resistant Housing

Designed for outdoor and high-risk environments, the PNM-9000VD is rated IK10 for impact resistance and IP66 for weatherproof durability, ensuring continuous operation in extreme conditions.

Smart IR Night Vision

With adaptive IR illumination, the camera provides enhanced visibility in low-light conditions, ensuring 24/7 surveillance without overexposure.

Optimized Bandwidth and Storage Efficiency

Using H.265 video compression, the PNM-9000VD reduces bandwidth consumption and storage needs while preserving ultra-HD video quality, making it ideal for long-term video retention and cost-effective storage management.

Seamless Integration and Easy Installation

With Power over Ethernet (PoE) support, installation is simplified, requiring only a single cable for power and data. The ONVIF compliance ensures smooth integration with major video management systems (VMS) for flexible deployment.

Key Specifications:

  • Dual 5MP Ultra HD Sensors (2560 × 1920 each)
  • AI-powered analytics: Object classification, motion tracking, loitering alerts, virtual line crossing, intrusion detection
  • Multi-Directional Monitoring: Two independent views with customizable angles
  • Infrared Night Vision: Smart IR for optimal low-light performance
  • Weatherproof Rating: IP66 for outdoor durability
  • Vandal-Resistant Rating: IK10 for impact protection
  • Video Compression: H.265/H.264/MJPEG
  • Power Source: Power over Ethernet (PoE) and 12V DC
  • Operating Temperature: -40°C to +55°C (-40°F to +131°F)
  • Network Connectivity: Ethernet 10/100/1000 Base-T
  • ONVIF Compliance: Compatible with major VMS platforms

Specifications:

Video
Resolution 2560×1920, 2560×1440, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 320×240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation
Lens
Optional Lens SLA-5M3700D(5MP 3.7mm) SLA-5M4600D(5MP 4.6mm) SLA-5M7000D(5MP 7.0mm)
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(Electrical)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line
Alarm Triggers Analytics, Network disconnect
Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Handover
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S SUNAPI(HTTP API)
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot 256GB(Each CH)
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C(-40°F~+131°F) / Less than 90% RH
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / Less than 90% RH
Certification IP66, IK10
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption PoE: 12.95W, typical 12.00W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight Ø197.6x84mm(7.78×3.31″), 1250g(2.76 lb)
Compatible Conduit hole / Gangbox 1/2″
Hanging Mount (Dome) SBP-201HMW
